128432-0116-E1 Briggs and Stratton Engine

Model: 128432-0116-E1

Back To Assemblies

Save Part Not Listed?
product name

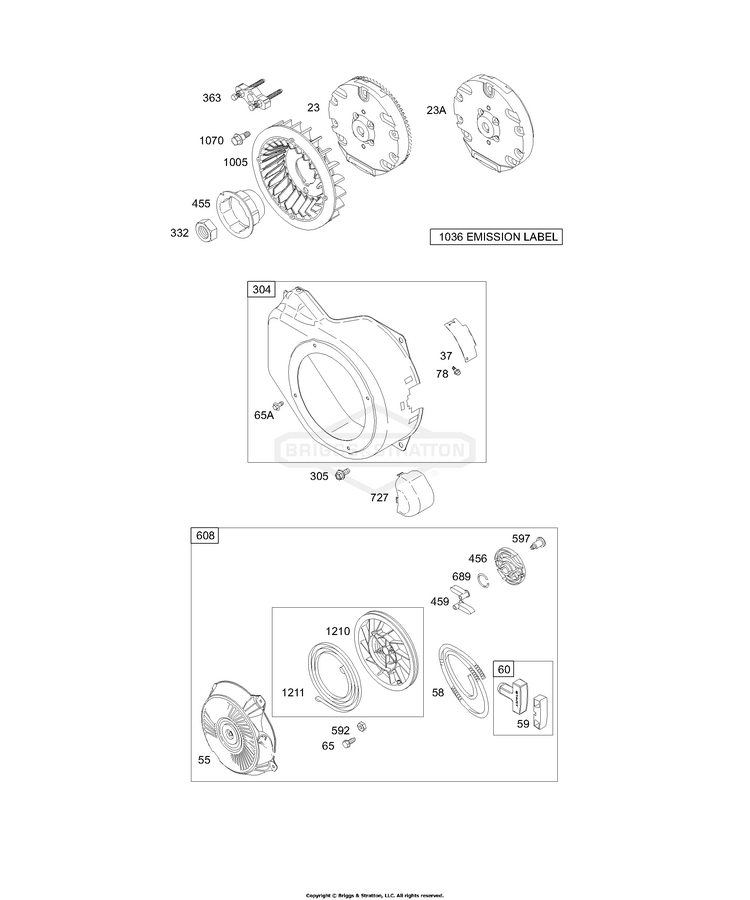

Blower Housing/Shrouds, Flywheel, Rewind

...
...
23A
FLYWHEEL BS-699488
...
37
GUARD, Flywheel BS-695725
...
55
HOUSING, Rewind Starter BS-691422
...
58
ROPE, Starter (Cut To Required Length) BS-693389
...
59
INSERT, Grip BS-805957
...
60
GRIP-STARTER ROPE (2 Piece) BS-490652
...
65
SCREW (Rewind Starter) BS-690837
...
65A
SCREW (Rewind Starter) BS-692608
...
78
SCREW (Flywheel Guard) BS-695724
...
304
HOUSING, Blower BS-699598
...
305
SCREW (Blower Housing) BS-691108
...
332
NUT (Flywheel) Used Before Code Date 03060900 BS-690662
...
332
NUT (Flywheel) Used After Code Date 03060800 BS-591988
...
363
PULLER, Flywheel BS-19069
...
455
CUP, Flywheel BS-591302
...
456
PLATE-PAWL FRICTION BS-692299
...
459
PAWL-RATCHET BS-281505S
...
608
STARTER, Rewind BS-591301
...
689
SPRING-FRICTION (Rewind Starter) BS-691855
...
727
COVER, Starter Drive BS-694467
...
1005
FAN-FLYWHEEL BS-555778
...
1036
LABEL, Emissions BS-697004
...
1070
SCREW (Flywheel Fan) BS-692590
...
1210
PULLEY/SPRING ASSY (Pulley) BS-498144
...
1211
PULLEY/SPRING ASSY (Spring) BS-498144
