1277-0 Briggs and Stratton Portable Generator 7,200 Watt

Model: 1277-0

Back To Assemblies

Save Part Not Listed?
product name

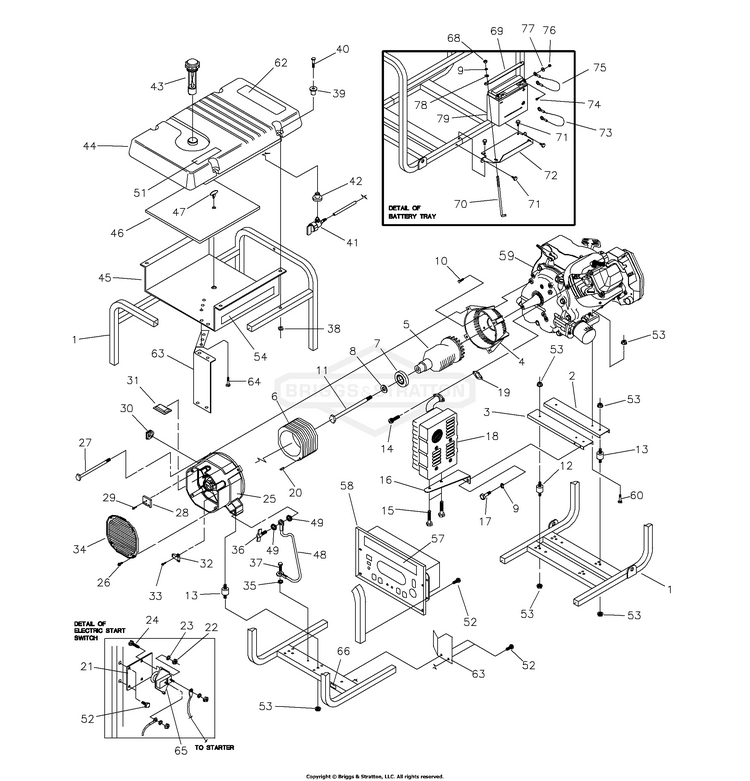

Main Unit

...
...
1
CRDL, 7200W BPS BS-HB4545GS
...
2
SUPPORT, Engine BS-H92531GS
...
3
BRCKT, SPPRT, ENG/MFFLR, TAN BS-H92731GS
...
4
HOUSING, ENGINE ADAPTER BS-92247GS
...
5
ASSY, Rotor (Inclds Item 7) BS-B1342GGS
...
6
ASSY, Stator BS-B1897AGS
...
7
BEARING BS-65791GS
...
8
WASHER, M8 Flat BS-96796GS
...
9
WASHER, Lock BS-22129GS
...
10
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
11
HHCS, 5/16-24 x 10.625 LG. BS-47481GS
...
12
MOUNTS,Vibration BS-92609GS
...
13
MOUNT, VIBRATION BS-82857GS
...
14
SCREW, M8 - 1.25 x 20 BS-40976
...
15
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
16
BRACKET, Muffler BS-92532GS
...
17
MODULE BS-84009650
...
18
MUFFLER BS-A7433GS
...
19
GASKET, Exhaust BS-90239GS
...
20
PIN, ROLL 4MM x 10 BS-81917GS
...
21
BRACKET, STARTER SWITCH BS-78289GS
...
22
NUT, 1/4 - 20 Hex BS-22127
...
23
CAP BS-5022097SM
...
24
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
27
BOLT BS-66449LGS
...
28
RECTIFIER, BATTERY CHARGE BS-65795GS
...
29
SCREW BS-66849AGS
...
30
GROMMET, RUBBER BS-67022GS
...
31
ASSEMBLY, POWER REGULATOR BS-84132GS
...
32
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
33
HHCS, M5-0.8 X 16 BS-49815GS
...
34
COVER, Bearing Carrier BS-B4871GS
...
35
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
36
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
37
SCREW BS-313085GS
...
38
NUT, FLANGE LOCK - M6 BS-77395GS
...
39
GROMMET, TANK BS-83465GS
...
40
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
41
Kit, Valve BS-192980GS
...
42
Kit, Valve BS-192980GS
...
43
CAP, Fuel Gauge BS-B4363GS
...
44
ASSY,Tank, Fuel (Includes Items 41 & 42) BS-193500GS
...
45
HTSHLD, 01277 BS-BB4675GS
...
46
INSULATION, # 2-1/4" THICK BS-92665GS
...
47
CLIP, INSULATION BS-85000GS
...
48
WIRE, Ground BS-195373GS
...
51
DECAL, Danger BS-194799GS
...
52
SCREW, 12-14 x 7/8 Self Drilling BS-B2153GS
...
53
NUT, 5/16-18, Flanged Serrated BS-189160GS
...
54
DECAL, Heat Shield BS-B5051
...
57
DECAL, Control Panel BS-B4553
...
58
ASSY, Control Panel BS-B4690GS
...
59
ENGINE BS-~NSP
...
60
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
62
DECAL, START INSTRUCTIONS BS-93826GS
...
63
HTSHLD, 01277, BLK BS-BB4674GS
...
64
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
65
SWITCH, Starter BS-77282
...
66
DECAL, Ground BS-B4986GS
...
68
SKID PLATE BS-5045771B
...
69
BRCKT, BTTRY BS-H96925GS
...
70
J-BOLT BS-96924GS
...
71
SCREW BS-58443GS
...
72
TRAY, BTTRY, 01277 BS-HB4672GS
...
73
WIRE-A, 8AWG, BLK, #0, 495MM BS-11353621GS
...
74
SCREW, M5 x 0.8 x 12 BS-52618GS
...
75
WIRE-A, 6AWG, RED, #13, 864MM BS-19953621GS
...
76
NUT, LOCKING-M5 BS-52856GS
...
77
WASHER, Rivet, 3/16 BS-1910531SM
...
79
BATTERY, 12V BS-193043GS
...
PLUG, SPARK Not Illustrated BS-84007216
...
ELEMENT,Air Cleaner Not Illustrated BS-73111GS
...
CHARGER, Battery Not Illustrated BS-84002790
...
MANUAL-OPERATOR Not Illustrated BS-B4678GS
...
MANUAL, Engine Not Illustrated BS-A8927GS
...
WRENCH, Sparkplug Not Illustrated BS-84882GS
...
BOTTLE, Oil Not Illustrated BS-BB3061GS
...
FLASHLIGHT Not Illustrated BS-~NSP
