1277-0 Briggs and Stratton Portable Generator 7,200 Watt

Model: 1277-0

Back To Assemblies

Save Part Not Listed?
product name

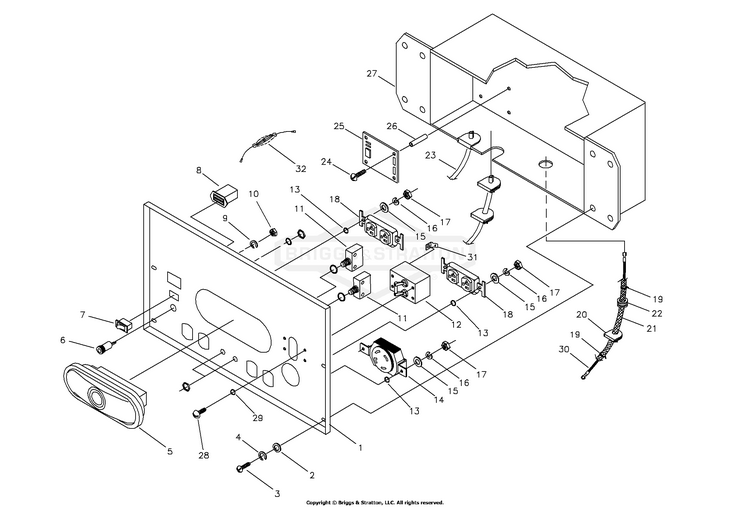

Control Panel

...
...
1
PANEL, Control BS-BB4689
...
2
WASHER, Rivet, 3/16 BS-1910531SM
...
3
WASHER, M5 Lock BS-49226GS
...
4
PPHMS, M5 - 0.8 x 12 BS-91526
...
5
LIGHT, 12V Backup BS-B4695
...
6
JACK-COAXIAL BS-312004GS
...
7
SWITCH, Rocker (On - Off) BS-20984
...
8
HOUR METER BS-77604GS
...
9
WASHER, M3 Lock BS-43182GS
...
10
NUT, M3 - 0.5 BS-51714GS
...
11
BREAKER-CIRCUIT 20A BS-209872GS
...
12
BREAKER, 30A Manual 2-Pole BS-82081GS
...
13
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
14
OUTLET, 120/240V - 30A BS-43437
...
15
Thumb Control Lever BS-5043180B
...
16
LOCK WASHER, M4 BS-22264
...
17
NUT, M4-0.7 Hex BS-51715GS
...
18
OUTLET, 20A,120V BS-68759GS
...
19
TIE WRAP, 4" Black BS-28739AGS
...
20
GROMMET, Rubber BS-84135GS
...
21
SLEEVING, Flexo HW 1/2 x 7" BS-84409
...
22
GROMMET, Rubber BS-B1127GS
...
23
ASSEMBLY, Wire Harness BS-84335GS
...
24
SCREW, #6-32 x 3/8" Self Tapping BS-64526
...
25
BOARD, System Control BS-83970GS
...
26
STAND OFF, 3/4" Hex BS-64525
...
27
BOX, Control Panel BS-B92069
...
28
PPHMS, #6-32 X 1/4" BS-36900
...
29
WHEEL, 12 X 8.5 BS-5023364YP
...
30
HRNSS, WIRE BS-B4900GS
...
31
THROTTLE CONTROL BS-7074138YP
...
32
ASSY, Diode BS-B5112GS
