122Q32-0214-H1 Briggs and Stratton Engine

Model: 122Q32-0214-H1

Back To Assemblies

Save Part Not Listed?
product name

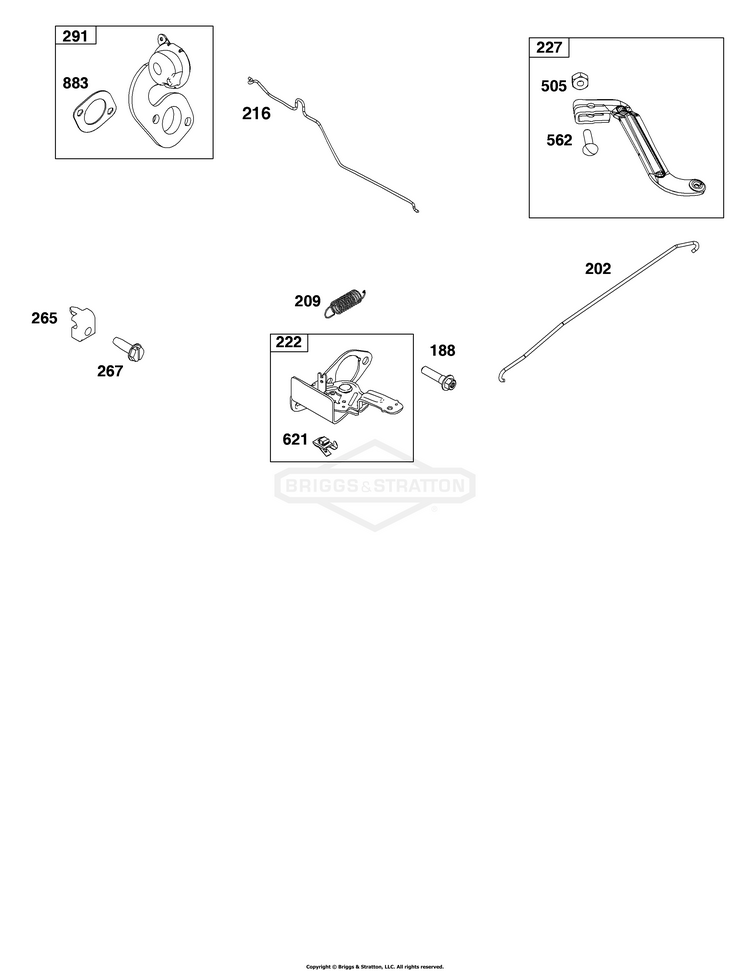

Controls Group

...
...
188
SCREW (Control Bracket) BS-793480
...
202
LINK, Mechanical Governor BS-796657
...
209
SPRING, Governor BS-796926
...
216
LINK, Choke BS-798944
...
222
BRACKET, Control BS-796482
...
227
LEVER, Governor Control BS-796487
...
265
CLAMP, Casing BS-690798
...
267
SCREW (Casing Clamp) BS-691044
...
291
THERMOSTAT BS-798938
...
505
NUT (Governor Control Lever) BS-793515
...
562
BOLT (Governor Lever) BS-793514
...
621
SWITCH, Stop BS-692310
