122Q02-0999-H1 Briggs and Stratton Engine

Model: 122Q02-0999-H1

Back To Assemblies

Save Part Not Listed?
product name

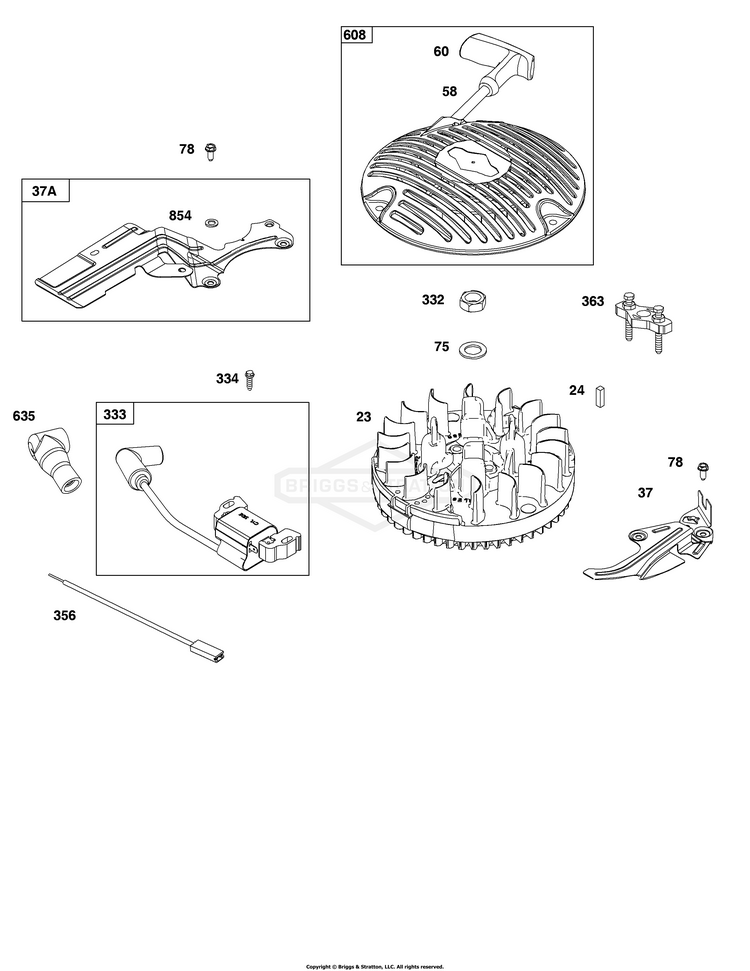

Flywheel, Ignition,and Starter Group

...
...
23
FLYWHEEL BS-590420
...
24
KEY, Flywheel BS-222698S
...
37
GUARD, Flywheel BS-590921
...
37A
GUARD, Flywheel BS-799155
...
58
ROPE, Starter BS-697316
...
60
GRIP, Starter Rope BS-281434S
...
75
WASHER (Flywheel) BS-691736
...
78
SCREW (Flywheel Guard) BS-793480
...
332
NUT (Flywheel) BS-690662
...
333
ARMATURE, Magneto BS-595554
...
334
SCREW (Magneto Armature) BS-793454
...
356
WIRE, Stop BS-692390
...
608
STARTER, Rewind BS-796497
...
635
BOOT, Spark PLug BS-66538S
...
854
WASHER (Cylinder Shield) BS-690402
