122Q02-0999-H1 Briggs and Stratton Engine

Model: 122Q02-0999-H1

Back To Assemblies

Save Part Not Listed?
product name

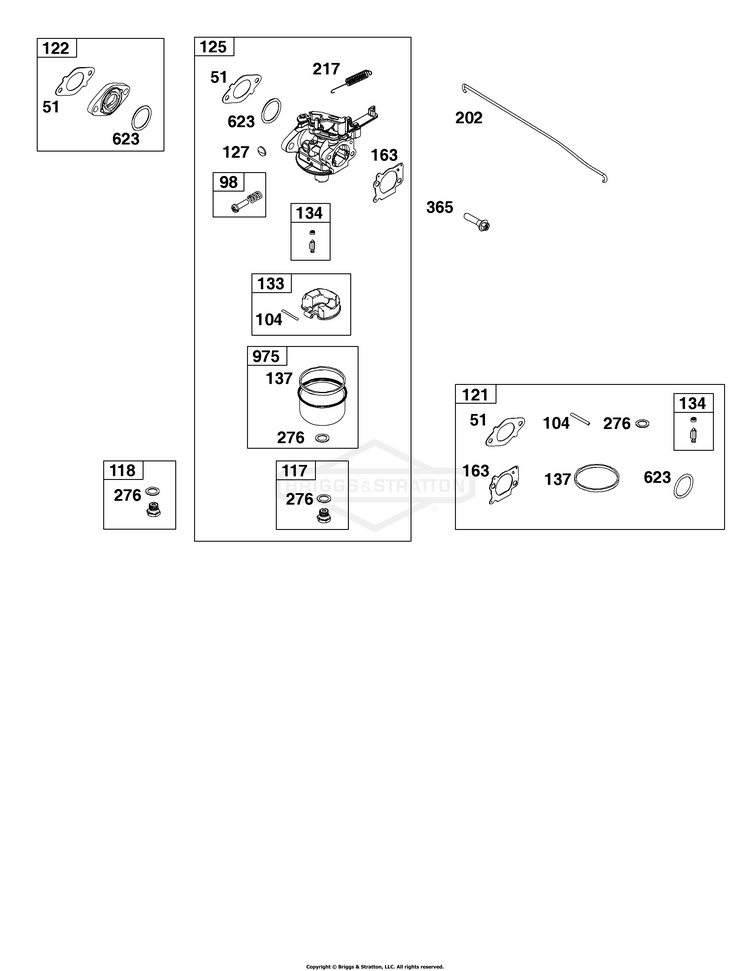

Carburetor Group

...
...
51
GASKET, Intake (Part information located in Cylinder Head Group.) BS-796596
...
98
KIT, Idle Speed BS-797156
...
104
PIN, Float Hinge BS-797622
...
117
JET, Main (Standard) BS-799227
...
118
JET, Main (High Altitude) BS-799606
...
122
SPACER, Carburetor BS-796595
...
125
CARBURETOR BS-799226
...
127
PLUG, Welch BS-797633
...
133
FLOAT, Carburetor BS-797626
...
134
KIT, Needle/Seat BS-799177
...
137
GASKET, Float Bowl BS-797625
...
163
GASKET, Air Cleaner (Air Cleaner) BS-691894
...
217
SPRING, Choke Return BS-799179
...
276
WASHER, Sealing BS-797632
...
365
SCREW (Carburetor/Throttle Body) BS-793458
...
623
SEAL, O-Ring (Carburetor Spacer) BS-793628
...
975
BOWL, Float BS-797631
