122432-0203-01 Briggs and Stratton Engine

Model: 122432-0203-01

Back To Assemblies

Save
Part Not Listed?Part Not Listed?

product name

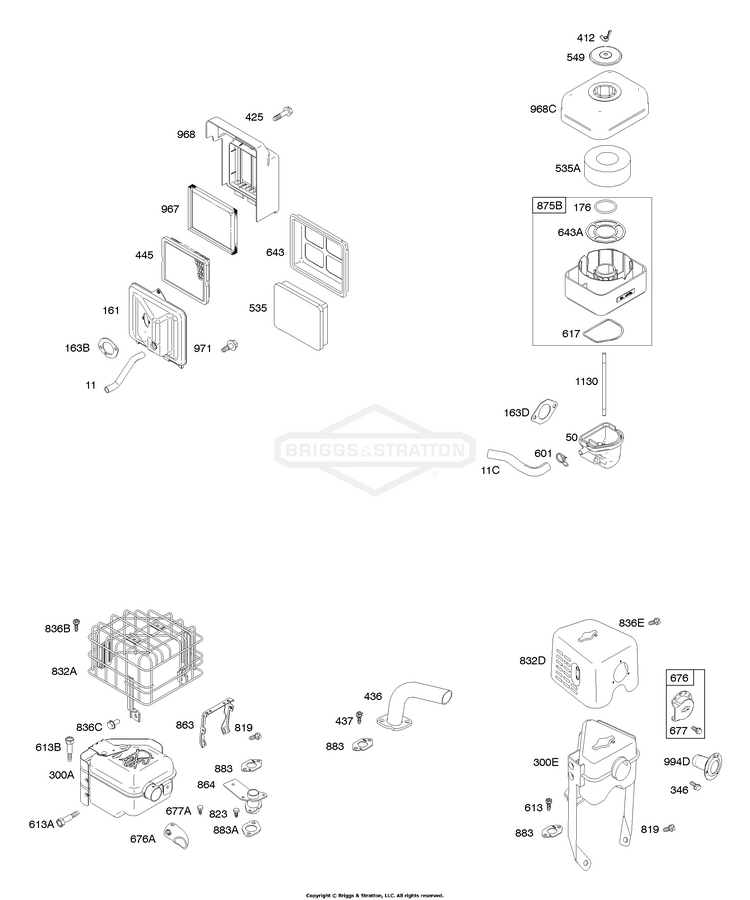

Air Cleaner, Exhaust System

...
...
11
TUBE, Breather (Flat Panel Air Cleaner) BS-812208

...
11C
TUBE, Breather (Oil Bath Air Cleaner) BS-793418

...
50
MANIFOLD, Intake BS-793419

...
161
BASE-AIR CLEANER (Metal) (Flat Panel Air Cleaner) BS-699207

...
163B
GASKET, Air Cleaner (Flat Panel Air Cleaner) BS-696024

...
163D
GASKET, Air Cleaner (Oil Bath Air Cleaner) BS-793412

...
176
SEAL, O-Ring (Air Cleaner Base) BS-793441

...
300A
MUFFLER BS-797433

...
300E
MUFFLER BS-594001

...
346
SCREW (Spark Arrestor) (SAE) BS-690661

...
346
SCREW (Spark Arrestor) (Metric) BS-699203

...
412
NUT (Air Cleaner Cover) BS-793443

...
425
SCREW (Air Cleaner Cover) BS-699208

...
436
MANIFOLD, Exhaust BS-793706

...
437
SCREW (Exhaust Manifold) BS-791972

...
445
FILTER, A/C Cartridge (Flat Panel) BS-491588S

...
535
FILTER, Air Cleaner Foam BS-696263

...
535A
FILTER, Air Cleaner Foam BS-792472

...
549
WASHER (Air Cleaner) BS-793434

...
601
CLAMP, Hose BS-791850

...
613
SCREW (Muffler) BS-791972

...
613A
SCREW (Muffler) BS-699481

...
613B
SCREW (Muffler) (SAE) BS-697812

...
613B
SCREW (Muffler) (Metric) BS-799081

...
617
SEAL, O-Ring (Intake Manifold) BS-793440

...
643
RETAINER, Air Filter BS-696264

...
643A
RETAINER, Air Filter BS-793424

...
676
DEFLECTOR, Muffler BS-393760

...
676A
DEFLECTOR, Muffler BS-697816

...
677
SCREW (Muffler Deflector) (SAE) BS-690661

...
677
SCREW (Muffler Deflector) (Metric) BS-699203

...
677A
SCREW (Muffler Deflector) BS-699776

...
819
SCREW (Muffler Bracket) BS-699233

...
823
SCREW (Muffler Adapter) BS-791972

...
832A
GUARD, Muffler BS-697818

...
832D
GUARD, Muffler Used After Code Date 08062400 BS-796240

...
832D
GUARD, Muffler Used Before Code Date 08062500 BS-796240

...
836B
SCREW (Muffler Guard) BS-791972

...
836E
SCREW (Muffler Guard) BS-699755

...
836C
SCREW (Muffler Guard) BS-699234

...
863
BRACKET, Muffler BS-699229

...
864
ADAPTER, Muffler BS-699232

...
875B
BASE, Air Cleaner (Plastic) (Oil Bath Air Cleaner) BS-793423

...
883
GASKET-EXHAUST BS-691893

...
883A
GASKET-EXHAUST BS-692237

...
967
FILTER, Air Cleaner Foam (Flat Panel) BS-493537S

...
968
COVER, Air Cleaner (Flat Panel) BS-692584

...
968C
COVER, Air Cleaner (Oil Bath Air Cleaner) BS-793425

...
971
SCREW (Air Cleaner Base to Carburetor) (SAE) BS-690370

...
971
SCREW (Air Cleaner Base to Carburetor) (Metric) BS-798649

...
994D
ARRESTOR, Spark BS-793985

...
1130
STUD (Intake Manifold) BS-793438
...
...
...
