122132-0110-01 Briggs and Stratton Engine

Model: 122132-0110-01

Save
 Don't See Your Part Listed?
product name

Air Cleaner, Controls, Exhaust System, Governor Spring, Ignition

...
...
11
TUBE, Breather (Flat Panel Air Cleaner) BS-812208
...
161
BASE-AIR CLEANER (Metal) (Flat Panel Air Cleaner) BS-699207
...
163B
GASKET, Air Cleaner (Flat Panel Air Cleaner) BS-696024
...
188
SCREW (Control Bracket) BS-699479
...
209
SPRING, Governor BS-692571
...
209A
SPRING, Governor BS-691278
...
222
BRACKET, Control Used Before Code Date 07030100 BS-793107
...
222D
BRACKET, Control Used After Code Date 08051100 BS-795669
...
222D
BRACKET, Control Used After Code Date 07022800 Used Before Code Date 08051200 BS-793107
...
227
LEVER-GOVERNOR CONTRO BS-794367
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-699492
...
268
CASING, Control Wire (Cut To Required Length) BS-691025
...
269
WIRE, Control (Cut To Required Length) BS-26634
...
270
NUT (Control Wire Casing) BS-691027
...
271
LEVER, Control BS-691028
...
271A
LEVER, Control BS-694256
...
281
PANEL, Control Used Before Code Date 07030100 BS-793133
...
281
PANEL, Control Used After Code Date 07022800 BS-793133
...
300E
MUFFLER BS-594001
...
333
ARMATURE, Magneto BS-796964
...
334
SCREW (Magneto Armature) BS-699477
...
347
SWITCH, Rocker BS-795333
...
356
WIRE-STOP BS-692602
...
356A
WIRE, Stop BS-695630
...
425
SCREW (Air Cleaner Cover) BS-699208
...
427
NUT (Control Bracket) (SAE) BS-694255
...
427
NUT (Control Bracket) (Metric) BS-798458
...
504
SET, Friction Washer BS-695383
...
505
NUT (Governor Control Lever) BS-691251
...
535
FILTER, Air Cleaner Foam BS-696263
...
562
BOLT (Governor Control Lever) BS-691119
...
613
SCREW (Muffler) BS-791972
...
621
SWITCH, Stop BS-692310
...
632
SPRING/LINK, Mechanical Governor BS-693408
...
643
RETAINER, Air Filter BS-696264
...
652
SCREW (Support Bracket) BS-699755
...
652A
SCREW (Support Bracket) BS-699481
...
663
SCREW (Control Panel) BS-699206
...
668
SPACER BS-694257
...
773
RETAINER (Control Bracket) BS-694258
...
819
SCREW (Muffler Bracket) BS-699233
...
832D
GUARD, Muffler Used After Code Date 08062400 BS-796240
...
832D
GUARD, Muffler Used Before Code Date 08062500 BS-796240
...
836E
SCREW (Muffler Guard) BS-699755
...
843A
SLEEVE, Lever BS-695588
...
851
TERMINAL-SPARK PLUG BS-493880S
...
883
GASKET-EXHAUST BS-691893
...
890
BRACKET, Support BS-790203
...
968
COVER, Air Cleaner (Flat Panel) BS-692584
...
971
SCREW (Air Cleaner Base to Carburetor) (SAE) BS-690370
...
971
SCREW (Air Cleaner Base to Carburetor) (Metric) BS-798649

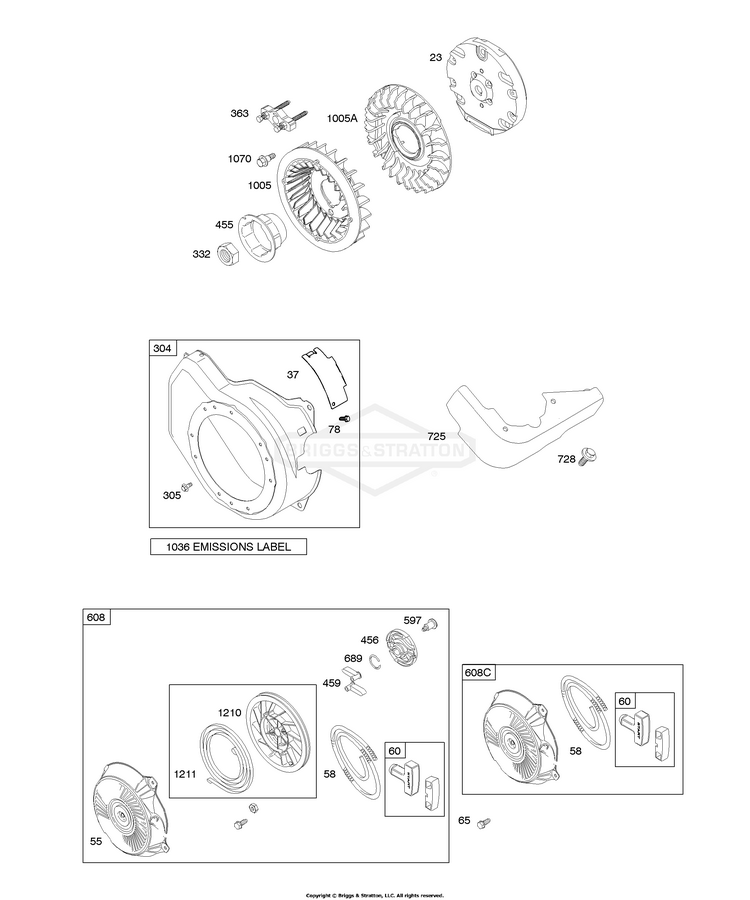

Blower Housing, Flywheel, Rewind Starter

...
...
23
FLYWHEEL BS-699488
...
37
GUARD, Flywheel BS-699661
...
55
HOUSING, Rewind Starter BS-791848
...
58
ROPE, Starter (Cut To Required Length) Used After Code Date 11123100 BS-693389
...
58
ROPE, Starter (Cut To Required Length) Used Before Code Date 12010100 BS-66574
...
60
GRIP-STARTER ROPE (2 Piece) BS-490652
...
65
SCREW (Rewind Starter) (Metric) BS-699851
...
65
SCREW (Rewind Starter) (SAE) BS-699228
...
78
SCREW (Flywheel Guard) BS-699205
...
304
HOUSING, Blower BS-699598
...
305
SCREW (Blower Housing) BS-699481
...
332
NUT (Flywheel) BS-591988
...
363
PULLER, Flywheel BS-19203
...
455
CUP-FLYWHEEL Used After Code Date 11123100 BS-591302
...
455
CUP-FLYWHEEL Used Before Code Date 12010100 BS-591302
...
456
PLATE-PAWL FRICTION BS-692299
...
459
PAWL-RATCHET BS-281505S
...
597
SCREW (Pawl Friction Plate) BS-691696
...
608
STARTER, Rewind Used Before Code Date 12010100 BS-591301
...
608C
STARTER, Rewind Used After Code Date 11123100 BS-591301
...
689
SPRING-FRICTION BS-691855
...
725
SHIELD, Heat BS-792874
...
728
SCREW (Heat Shield) BS-699632
...
1005
FAN-FLYWHEEL BS-555778
...
1005A
FAN, Flywheel BS-794273
...
1070
SCREW (Flywheel Fan) BS-699201
...
1210
PULLEY/SPRING ASSEMBLY (Pulley) BS-791849
...
1211
PULLEY/SPRING ASSEMBLY (Spring) BS-791849

Camshaft, Crankcase Cover, Crankshaft, Cylinder, Lubrication, Piston Group

...
...
1
CYLINDER ASSEMBLY BS-699490
...
3
SEAL, Oil (Magneto Side) BS-299819S
...
7
GASKET, Cylinder Head BS-698210
...
12
GASKET-CRANKCASE BS-699485
...
15
PLUG-OIL DRAIN (Square Head) BS-691686
...
15A
PLUG-OIL DRAIN (Flush) BS-691682
...
16
CRANKSHAFT BS-797072
...
17
BEARING-BALL (PTO Side) BS-798538
...
17A
BEARING-BALL BS-690824
...
18A
COVER, Crankcase BS-790337
...
20
SEAL-OIL (PTO Side) BS-692550
...
21
CAP-OIL FILL BS-281658S
...
22
SCREW (Crankcase Cover/Sump) BS-594761
...
24
KEY, Flywheel BS-796335
...
25
PISTON ASSEMBLY (.020 Oversize) BS-799064
...
25
PISTON ASSEMBLY (Standard) BS-799063
...
25
PISTON ASSEMBLY (.010 Oversize) BS-797820
...
26
SET, Ring (.010 Oversize) BS-797821
...
26
SET, Ring (Standard) Used After Code Date 05093000 BS-791969
...
26
SET, Ring (Standard) Used Before Code Date 05100100 BS-499631
...
26
SET, Ring (.020 Oversize) Used Before Code Date 05100100 BS-692786
...
26
SET, Ring (.020 Oversize) Used After Code Date 05093000 BS-791324
...
27
LOCK-PISTON PIN BS-691866
...
28
PIN-PISTON/STD (Standard) BS-499423
...
29
ROD, Connecting Used Before Code Date 07081600 BS-798813
...
29
ROD, Connecting (.020 Undersize) BS-792247
...
29B
ROD, Connecting (Metric) Used After Code Date 09053100 BS-798813
...
29B
ROD, Connecting (SAE) Used After Code Date 07081500 Used Before Code Date 09060100 BS-798813
...
30
DIPPER-CONN ROD BS-791584
...
32
SCREW (Connecting Rod) BS-691664
...
32A
SCREW (Connecting Rod) BS-695759
...
32B
SCREW (Connecting Rod) (Metric) Used After Code Date 09053100 BS-797437
...
32B
SCREW (Connecting Rod) (SAE) Used Before Code Date 09060100 BS-791784
...
46A
CAMSHAFT BS-555790
...
51
GASKET, Intake (2 Required) BS-692555
...
146
KEY, Woodruff BS-690979
...
163B
GASKET, Air Cleaner (Flat Panel Air Cleaner) BS-696024
...
219
GEAR, Governor BS-693578
...
220
WASHER (Governor Gear) BS-691724
...
306
SHIELD-CYLINDER BS-795334
...
307
SCREW (Cylinder Shield) BS-794822
...
332
NUT (Flywheel) BS-591988
...
358
GASKET SET, Engine BS-791797
...
415
PLUG BS-693463
...
522
PLUG, Dipstick/Fill BS-798503
...
552
BUSHING, Governor Crank BS-692346
...
615
RETAINER, Governor Shaft BS-692576
...
616
CRANK, Governor BS-692547
...
718
PIN, Locating BS-690959
...
741
GEAR-TIMING BS-695087
...
742
RETAINER, E Ring BS-692564
...
746
GEAR-IDLER BS-790278
...
868
SEAL-VALVE BS-795440
...
883
GASKET-EXHAUST BS-691893
...
993
GASKET-CYL HD PLATE BS-694088
...
1022
GASKET-ROCKER COVER BS-691890
...
1058
MANUAL, Operator's BS-277040
...
1319
LABEL, Warning BS-794467
...
1330
MANUAL, Repair BS-272147

Carburetor, Fuel Supply

...
...
38
SCREW (Shut Off Valve) BS-698557
...
51
GASKET, Intake (2 Required) BS-692555
...
95A
SCREW (Throttle Valve) BS-698544
...
97A
SHAFT, Throttle BS-698542
...
98B
KIT, Idle Speed (Carburetor) BS-698551
...
104A
PIN, Float Hinge BS-698536
...
105
VALVE, Float Needle BS-698537
...
108C
VALVE, Choke BS-698546
...
117A
JET, Main (Standard) BS-698670
...
118A
JET, Main (High Altitude) BS-698552
...
121B
KIT, Carburetor Overhaul BS-797634
...
122
SPACER, Carburetor BS-795643
...
125A
CARBURETOR BS-698535
...
127C
PLUG, Welch BS-690727
...
130B
VALVE, Throttle BS-698543
...
133A
FLOAT, Carburetor BS-698539
...
137A
GASKET, Float Bowl BS-698538
...
141
KIT, Choke Shaft BS-698545
...
163B
GASKET, Air Cleaner (Flat Panel Air Cleaner) BS-696024
...
180
TANK, Fuel (Metal) Used After Code Date 07050800 Used Before Code Date 08051200 BS-794640
...
180
TANK, Fuel (Metal) Used Before Code Date 07050900 BS-791598
...
180
TANK, Fuel (Metal) Used After Code Date 08051100 BS-795832
...
181
CAP, Fuel Tank (Metal) Used After Code Date 07050800 BS-794641
...
181
CAP, Fuel Tank (Metal) Used Before Code Date 07050900 BS-699840
...
187B
LINE, Fuel (Molded) BS-791874
...
190B
SCREW (Fuel Tank) Used After Code Date 08051100 BS-795047
...
190B
SCREW (Fuel Tank) Used Before Code Date 08051200 BS-699839
...
231
SCREW (Choke Valve) BS-690718
...
276A
WASHER, Sealing BS-698540
...
365
SCREW (Carburetor) BS-699484
...
464
SEAL, O-Ring (Fuel Shut-off Valve) BS-698550
...
601
CLAMP, Hose BS-791850
...
633B
SEAL, Choke/Throttle Shaft BS-690998
...
692
SPRING, Detent (Choke) BS-590931
...
958
VALVE, Fuel Shut Off (Plastic) BS-698549
...
975A
BOWL, Float BS-698541
...
977B
SET, Carburetor Gasket BS-797635
...
987
SEAL, Choke/Throttle Shaft BS-698556
...
1345
FILTER, Filler Neck BS-699887
...
1345A
FILTER, Filler Neck BS-792917

Cylinder Head

...
...
5
HEAD, Cylinder (SAE) Used Before Code Date 09061800 BS-699486
...
5
HEAD, Cylinder (Metric) Used After Code Date 09061700 BS-594514
...
7
GASKET, Cylinder Head BS-698210
...
13
SCREW (Cylinder Head) BS-699482
...
33
VALVE, Exhaust BS-499642
...
34
VALVE, Intake BS-795443
...
35
SPRING, Valve (Intake) BS-691304
...
36
SPRING, Valve (Exhaust) BS-691304
...
40
RETAINER, Valve BS-692194
...
45
TAPPET, Valve BS-690977
...
51
GASKET, Intake (2 Required) BS-692555
...
122
SPACER, Carburetor BS-795643
...
155
PLATE, Cylinder Head (SAE) Used Before Code Date 09061800 BS-698214
...
155
PLATE, Cylinder Head (Metric) Used After Code Date 09061700 BS-797442
...
192
ADJUSTER-ROCKER ARM (SAE) Used Before Code Date 09061800 BS-694543
...
192
ADJUSTER. Rocker Arm (Metric) Used After Code Date 09061700 BS-797440
...
238
CAP, Valve BS-691300
...
337
PLUG, SPARK BS-84007216
...
337
PLUG, SPARK (China Only) BS-84007216
...
383
WRENCH, Spark Plug BS-19576S
...
619
SCREW (Cylinder Head Plate) BS-699481
...
635
BOOT-SPARK PLUG BS-798619
...
830
STUD, Rocker Arm (Rocker Arm) (Metric) Used After Code Date 09061700 BS-797441
...
830
STUD-ROCKER ARM (Rocker Arm) (SAE) Used Before Code Date 09061800 BS-694544
...
868
SEAL-VALVE BS-795440
...
914
SCREW (Rocker Cover) (Bottom) BS-699481
...
914A
SCREW (Rocker Cover) (Top) Used Before Code Date 09061800 BS-692557
...
914A
SCREW (Rocker Cover) (Top) Used After Code Date 09061700 BS-797444
...
914B
SCREW (Rocker Cover) (Center) Used Before Code Date 09061800 BS-691108
...
914B
SCREW (Rocker Cover) (Center) Used After Code Date 09061700 BS-797444S
...
993
GASKET-CYL HD PLATE BS-694088
...
1022
GASKET-ROCKER COVER BS-691890
...
1023
COVER, Rocker BS-791585
...
1026
ROD, Push BS-790287
...
1029
ARM, Rocker (SAE) Used Before Code Date 09061800 BS-691230
...
1029
ARM, Rocker (Metric) Used After Code Date 09061700 BS-797443
...
1034
GUIDE-PUSH ROD BS-691343
...
1095
GASKET SET, Valve BS-791798

Replacement Engine - US & Canada

...

No Parts Available for this Schematic

...
...
...
...
