120502-0015-E1 Briggs and Stratton Engine

Model: 120502-0015-E1

Save
 Part Not Listed?Part Not Listed?
product name

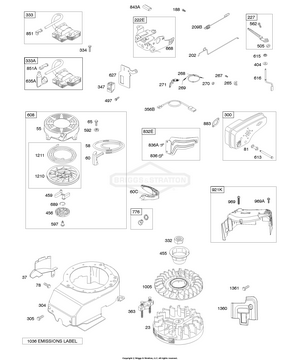

Blower Housing/Shrouds, Controls, Electrical, Exhaust System, Flywheel, Governor Spring, Ignition, Rewind Starter

...
...
23
FLYWHEEL BS-591282
...
37
GUARD-FLYWHEEL BS-793756
...
55
HOUSING, Rewind Starter BS-691421
...
58
ROPE, Starter (Cut To Required Length) BS-693389
...
60
GRIP, Starter Rope BS-691915
...
60C
GRIP, Starter Rope BS-799716
...
65
SCREW (Rewind Starter) BS-690837
...
78
SCREW (Flywheel Guard) BS-691108
...
81
LOCK, Muffler Screw BS-691740
...
188
SCREW (Control Bracket) BS-693399
...
202
LINK, Mechanical Governor BS-691829
...
209B
SPRING, Governor BS-693187
...
222E
BRACKET-CONTROL (Fixed Speed And 5 Position Manual Choke) BS-793754
...
227
LEVER-GOV CONTROL BS-690783
...
265
CLAMP, Casing BS-690798
...
267
SCREW (Casing Clamp) BS-691044
...
268
CASING, Control Wire (Cut To Required Length) BS-691025
...
269
WIRE, Control (Cut To Required Length) BS-26634
...
270
NUT (Control Wire Casing) BS-691027
...
271
LEVER, Control BS-691028
...
300
MUFFLER (Super Lo Tone) BS-692038
...
304
HOUSING, Blower BS-790286
...
305
SCREW (Blower Housing) BS-691108
...
332
NUT (Flywheel) BS-690662
...
333
ARMATURE-MAGNETO BS-590454
...
334
SCREW (Magneto Armature) BS-691061
...
347
SWITCH, Rocker BS-790283
...
356B
WIRE, Stop BS-693010
...
363
PULLER, Flywheel BS-19069
...
404
WASHER (Governor Crank) BS-690272
...
455
CUP, Flywheel BS-791960
...
456
PLATE-PAWL FRICTION BS-692299
...
459
PAWL-RATCHET BS-281505S
...
497
SCREW (Stopswitch Bracket) BS-690664
...
505
NUT (Governor Control Lever) BS-691251
...
562
BOLT (Governor Lever) BS-92613
...
592
NUT (Rewind Starter) BS-690800
...
597
SCREW (Pawl Friction Plate) BS-691696
...
608
STARTER, Rewind BS-697743
...
613
SCREW (Muffler) BS-691340
...
615
RETAINER, Governor Shaft BS-690340
...
616
CRANK-GOVERNOR BS-698801
...
627
BRACKET-STOPSWITCH BS-792565
...
635A
SHIELD-SPARK PLUG BS-793351
...
668
SPACER (Includes 2) BS-493823
...
689
SPRING-FRICTION BS-691855
...
776
GUIDE, Rope BS-861324
...
832E
GUARD, Muffler BS-790280
...
836
SCREW (Muffler Guard) BS-690664
...
836A
SCREW (Muffler Guard) BS-690661
...
843A
SLEEVE, Lever BS-691895
...
851
TERMINAL-SPARK PLUG BS-493880S
...
851A
TERMINAL, Spark Plug BS-692424
...
883
GASKET, Exhaust BS-691881
...
921K
HOUSING, Blower BS-790294
...
969
SCREW (Blower Housing) BS-690700
...
969A
SCREW (Blower Housing) BS-691135
...
1005
FAN, Flywheel BS-691346
...
1210
PULLEY/SPRING ASSY (Pulley) BS-498144
...
1211
PULLEY/SPRING ASSY (Spring) BS-498144
...
1360
SWITCH, Cover BS-790281
...
1361
SCREW (Switch Cover) BS-790282

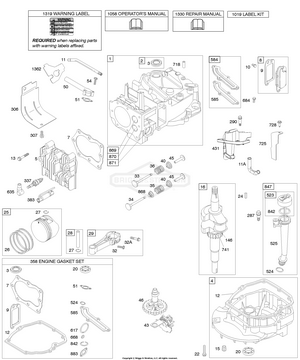

Cam, Crankshaft, Cylinder, Engine Sump, Lubrication, Piston Group, Valves

...
...
1
CYLINDER ASSEMBLY Used After Code Date 11063000 BS-592645
...
1
CYLINDER ASSEMBLY Used Before Code Date 11070100 BS-592645
...
2
KIT, Bushing/Seal (Magneto Side) BS-796961
...
3
SEAL, Oil (Magneto Side) BS-299819S
...
4
SUMP, Engine BS-493279
...
5
HEAD-CYLINDER Used Before Code Date 11070100 BS-594989
...
5
HEAD, Cylinder Used After Code Date 11063000 BS-590411
...
7
GASKET, Cylinder Head Used Before Code Date 11070100 BS-692249
...
7
GASKET, Cylinder Head Used After Code Date 11063000 BS-799875
...
8
BREATHER ASSEMBLY Used Before Code Date 11070100 BS-590395
...
8
BREATHER ASSEMBLY Used After Code Date 11063000 BS-590395
...
9
GASKET-BREATHER Used After Code Date 11063000 BS-699833
...
9
GASKET-BREATHER Used Before Code Date 11070100 BS-699833
...
10
SCREW (Breather Assembly) BS-691125
...
11
TUBE-BREATHER BS-691781
...
11A
TUBE, Breather BS-691934
...
12
GASKET, Crankcase BS-692232
...
13
SCREW (Cylinder Head) Used Before Code Date 11070100 BS-690912
...
13
SCREW (Cylinder Head) Used After Code Date 11063000 BS-590422
...
15
PLUG, Oil Drain (Square Socket) BS-691680
...
16
CRANKSHAFT BS-790277
...
20
SEAL, Oil (PTO Side) BS-399781S
...
22
SCREW (Crankcase Cover/Sump) BS-691092
...
24
KEY, Flywheel BS-222698S
...
25
PISTON ASSEMBLY (Standard) Used After Code Date 07090300 Used Before Code Date 09041700 BS-799063
...
25
PISTON ASSEMBLY (.020 Oversize) Used After Code Date 07090300 Used Before Code Date 09041700 BS-799064
...
25
PISTON ASSEMBLY (Standard) Used After Code Date 09041600 Used Before Code Date 11070100 BS-590404
...
25
PISTON ASSEMBLY-020 (.020 Oversize) Used After Code Date 09041600 Used Before Code Date 11070100 BS-590407
...
25
PISTON ASSEMBLY (Standard) Used After Code Date 11063000 BS-590404
...
25
PISTON ASSEMBLY-020 (.020 Oversize) Used After Code Date 11063000 BS-590407
...
25
PISTON ASSEMBLY (Standard) Used Before Code Date 07090400 BS-799063
...
25
PISTON ASSEMBLY (.020 Oversize) Used Before Code Date 07090400 BS-799064
...
26
SET, Ring (Standard) Used After Code Date 04031400 Used Before Code Date 07090400 BS-791098
...
26
SET, Ring (.020 Oversize) Used After Code Date 04102100 Used Before Code Date 07090400 BS-791324
...
26
RING SET (Standard) Used After Code Date 07090300 Used Before Code Date 09041700 BS-795431
...
26
SET, Ring (.020 Oversize) Used After Code Date 07090300 Used Before Code Date 09041700 BS-795432
...
26
PISTON ASSEMBLY (Standard) Used After Code Date 09041600 Used Before Code Date 11070100 BS-590404
...
26
PISTON ASSEMBLY-020 (.020 Oversize) Used After Code Date 09041600 Used Before Code Date 11070100 BS-590407
...
26
SET, Ring (Standard) Used Before Code Date 04031500 BS-499425
...
26
SET, Ring (.020 Oversize) Used Before Code Date 04102200 BS-499427
...
26
SET, Ring (Standard) Used After Code Date 11063000 BS-590402
...
26
SET, Ring (.020 Oversize) Used After Code Date 11063000 BS-590403
...
27
LOCK, Piston Pin Used After Code Date 09041600 BS-691588
...
27
LOCK-PISTON PIN Used Before Code Date 09041700 BS-691866
...
28
PIN. Piston (Standard) Used After Code Date 09041600 BS-298909
...
28
PIN-PISTON/STD (Standard) Used Before Code Date 09041700 BS-499423
...
29
PISTON ASSEMBLY (Standard) Used Before Code Date 09041700 BS-590406
...
29
ROD, Connecting (Standard) Used After Code Date 09041600 BS-797306
...
32
SCREW (Connecting Rod) BS-691664
...
32A
SCREW (Connecting Rod) BS-695759
...
33
VALVE-EXHAUST Used After Code Date 11063000 BS-590394
...
33
VALVE-EXHAUST Used Before Code Date 11070100 BS-590394
...
34
VALVE-INTAKE Used Before Code Date 11070100 BS-590393
...
34
VALVE-INTAKE Used After Code Date 11063000 BS-590393
...
35
SPRING, Valve (Intake) BS-691270
...
36
SPRING, Valve (Exhaust) BS-691270
...
40
RETAINER, Valve BS-692194
...
43
SLINGER, Governor/Oil BS-691997
...
45
TAPPET, Valve BS-690548
...
46
CAMSHAFT BS-691449
...
50
MANIFOLD, Intake BS-790285
...
51
GASKET, Intake (2 Required) BS-692555
...
54
SCREW (Intake Manifold) BS-691650
...
146
KEY, Woodruff BS-690979
...
287
SCREW (Dipstick Tube) BS-690940
...
290
SCREW (Intake Elbow) BS-690349
...
306
SHIELD, Cylinder BS-690450
...
307
SCREW (Cylinder Shield) BS-690345
...
337
PLUG, Spark (EMS) Used Before Code Date 11070100 BS-697451
...
337
PLUG, Spark Used After Code Date 11063000 BS-591868
...
337
PLUG-SPARK (Resistor) Used Before Code Date 11070100 BS-796112S
...
358
GASKET SET, Engine BS-590508
...
383
WRENCH-SPARK PLUG BS-89838S
...
431
MANIFOLD, Intake BS-790284
...
523
DIPSTICK BS-499621
...
524
SEAL-DIPSTICK TUBE (Dipstick Tube) BS-692296
...
525
TUBE, Dipstick BS-495265
...
584
COVER-BREA PASSAGE BS-697734
...
585
GASKET-BREA PASSAGE BS-691879
...
617
SEAL, O-Ring (Intake Manifold) BS-270344S
...
635
BOOT, Spark PLug BS-66538S
...
668
SPACER (Includes 2) BS-493823
...
684
SCREW (Breather Passage Cover) BS-690345
...
718
PIN, Locating BS-690959
...
725
SHIELD, Heat BS-790289
...
728
SCREW (Heat Shield) BS-691648
...
741
GEAR, Timing (Metal) Used After Code Date 08021700 BS-797521
...
741
GEAR-TIMING (Uses Woodruff Key) BS-691830
...
741
GEAR, Timing (Use Without Woodruff Key) Used Before Code Date 07100100 BS-790345
...
741
GEAR, Timing (Use Without Woodruff Key) Used After Code Date 07093000 Used Before Code Date 08021800 BS-794388
...
741
GEAR, Timing (Plastic) Used After Code Date 08021700 BS-797521
...
842
SEAL, O-Ring (Dipstick Tube) BS-691031
...
847
DIPSTICK/TUBE ASSY BS-692047
...
868
SEAL, Valve Used After Code Date 11063000 BS-590410
...
868
SEAL, Valve Used Before Code Date 11070100 BS-697338
...
869
SEAT, Valve (Intake) BS-691155
...
870
SEAT, Valve (Exhaust) BS-690380
...
871
BUSHING-VALVE GUIDE (Exhaust) Used Before Code Date 11070100 BS-262001
...
871
BUSHING, Valve Guide Used After Code Date 11063000 BS-590409
...
871
BUSHING, Valve Guide (Intake) Used Before Code Date 11070100 BS-63709
...
883
GASKET, Exhaust BS-691881
...
1019
KIT, Label BS-790295
...
1058
MANUAL, Operator's BS-277100
...
1319
LABEL, Warning BS-794467
...
1330
REP MAN-1 CYL L-HD BS-270962
...
1362
BAFFLE, Intake Elbow BS-790288

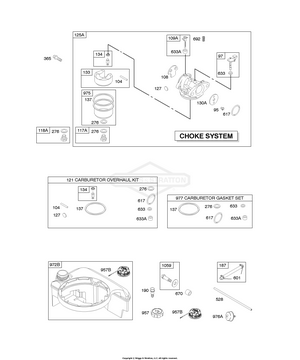

Carburetor, Fuel Supply

...
...
95
SCREW (Throttle Valve) BS-691636
...
97
SHAFT-THROTTLE BS-493267
...
104
PIN-FLOAT HINGE BS-797622
...
108
VALVE-CHOKE BS-691182
...
109A
SHAFT, Choke BS-498593
...
117A
JET, Main (Standard) BS-798660
...
118A
JET-MAIN (High Altitude) BS-496495
...
121
KIT, Carburetor Overhaul BS-498260
...
125A
CARBURETOR (Choke) BS-790276
...
127
PLUG, Welch (Bowl Vent) BS-694468
...
130A
VALVE, Throttle BS-691203
...
133
FLOAT-CARBURETOR BS-398187
...
134
KIT-NEEDLE/SEAT BS-398188
...
137
GASKET-FLOAT BOWL (1/16) BS-693981
...
137
GASKET, Float Bowl BS-796610
...
187
LINE, Fuel (Cut To Required Length) BS-791766
...
190
SCREW (Fuel Tank) BS-690940
...
276
WASHER-SEALING (Main Jet) BS-271716
...
365
SCREW (Carburetor/Throttle Body) BS-691688
...
528
HOSE, Primer BS-793006
...
601
CLAMP, Hose BS-791850
...
617
SEAL, O-Ring (Intake Manifold) BS-270344S
...
633
SEAL-CHOKE/THR SHAFT (Throttle) BS-691321
...
633A
SEAL, Choke/Throttle Shaft (Choke) BS-693867
...
670
SPACER, Fuel Tank BS-692294
...
692
SPRING, Detent BS-590931
...
957
CAP-FUEL TANK BS-796577
...
957B
CAP-FUEL TANK BS-796577
...
972B
TANK, Fuel BS-699374
...
975
BOWL, Float BS-796611
...
976A
PRIMER-CARBURETOR Used After Code Date 11051500 BS-793382
...
976A
PRIMER-CARBURETOR Used Before Code Date 11051600 BS-793382
...
977
KIT, Carburetor Overhaul BS-498260
...
1059
KIT, Screw/Washer BS-692311

Replacement Engine - US & Canada

...
...
xx
Replacement Engine BS-1205020015
...
xx
Replacement Short Block BS-791275
...
...
...
