product name

Columbia 11A-020B897 (2010) Push Walk Behind Mower

Model: 11A-020B897 (2010)
Save
 Don't See Your Part Listed?
product name

General Assembly

...
...
1
Hex Wash HD Tap Scr 3/8-16 x .88 MTD-710-0654A
...
2
20" DECK MTD-787-01759A-0606
...
3
Lower Handle MTD-749-04037
...
4
Upper Handle MTD-749-1092A-0637
...
5
Blade Control Handle MTD-747-1161A-0637
...
6
Rear Flap MTD-731-0872B
...
7
Hinge Clip MTD-17098P
...
8
Hex Bolt 3/8-24 x 1.5" Lg. (Gr 8) MTD-710-1044
...
9
BLADE BELL SUPPORT MTD-736-0524B-1
...
10
Blade Adapter MTD-753-06315
...
11
Blade, Centre Star, 20" MTD-942-0640
...
12
20" FIXED DISCHARGE CHUTE MTD-731-0064A
...
13
Carriage Bolt 1/4-20 x 1.00" Lg. MTD-710-0932A
...
14
Flat Washer .28 ID x .74 OD x .063 MTD-736-0173
...
15
Flanged Lock Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
16
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
17
Flanged Lock Nut 5/16-18 Gr. F Nylon MTD-712-04063
...
18
Rope Guide Bolt MTD-710-1205
...
19
Carriage Bolt 5/16-18 x 1.50 Gr. 2 MTD-710-0262
...
22
COMPLETE WHEEL MTD-734-04063B
...
23
SCREW:SHLDR:0.498X1.630:3/8-16 MTD-738-0533
...
24
Cupped Washer .375 ID x .870 OD x .063 MTD-736-0105
...
25
Flanged Lock Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
26
Cable Tie MTD-725-0157
...
27
Control Cable 37.25" Lg. (B&S) MTD-946-0957
...
29
Shoulder Screw, 5/16-18 x.428" MTD-738-04033
...
30
Blade Adapter Kit MTD-753-06315

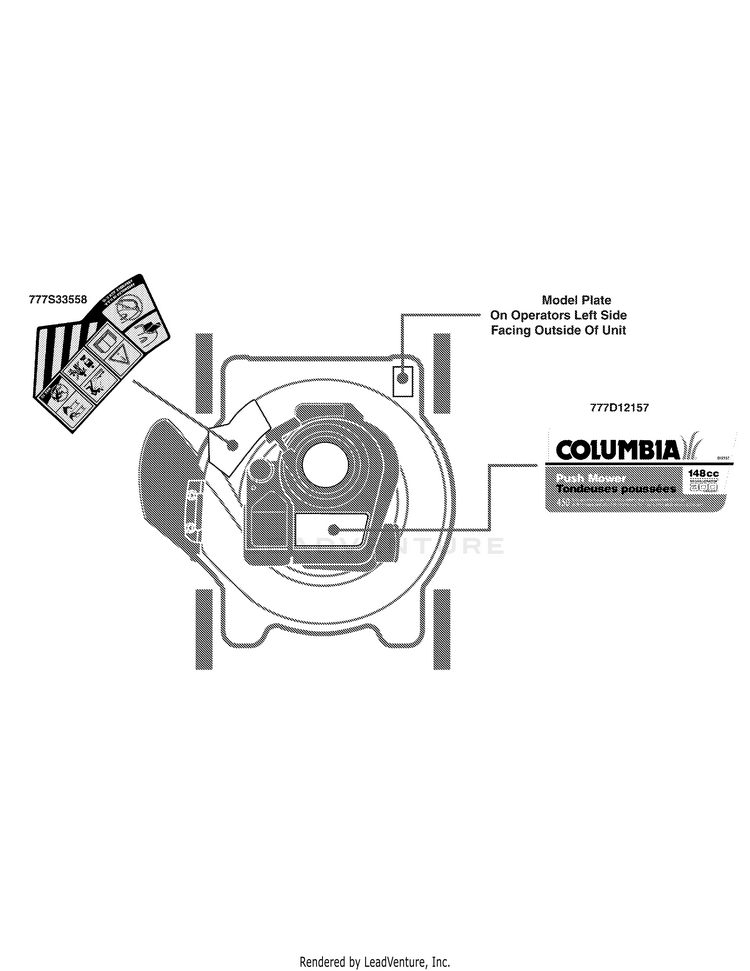

Label Map

...
...
777S33558
LBL:MWR:020 DECK:S&I INFO:CAN Mold In Graphic MTD-NA
...
777D12157
LABEL-ENG SHROUD COLUMBIA 020B MTD-777D12157
...
...
...
...
