1150-1 Briggs and Stratton Portable Generator Companion 5,000 Watt

Model: 1150-1

Save Part Not Listed?
product name

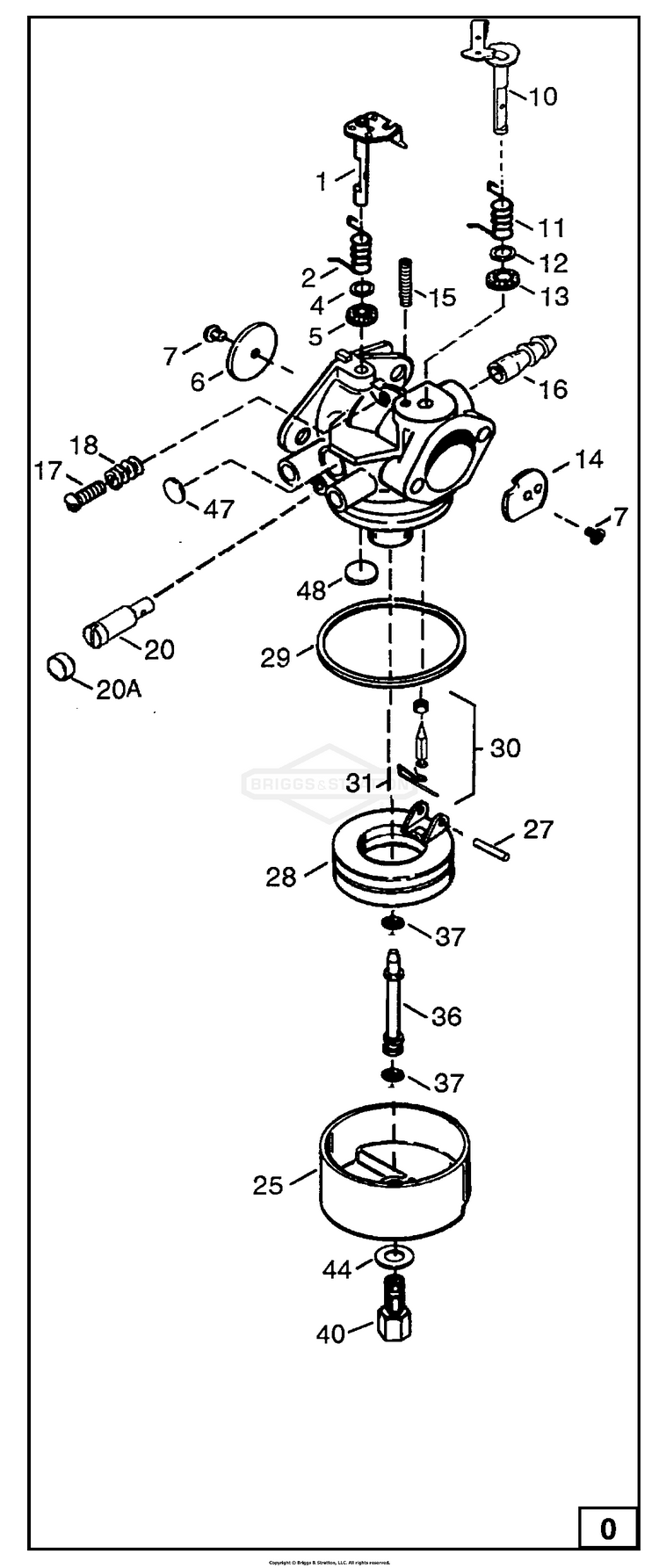

Carburetor (Tecumseh Engine - 143.981007)

...
...
0
Carburetor (Incl. 184 of Engine Parts List) BS-640129
...
1
Throttle Shaft & Lever Assembly BS-631776A
...
2
Throttle Return Spring BS-631970
...
4
Dust Seal Washer BS-631184
...
5
Dust Seal (Throttle) BS-631183
...
6
Throttle Shutter BS-640109
...
7
Shutter Screw BS-650506
...
10
Choke Shaft and Lever Assembly BS-632597
...
11
Choke Return Spring BS-632043
...
12
Dust Seal Washer BS-631184
...
13
Dust Seal (Choke) BS-631183
...
14
Choke Shutter BS-631753
...
15
Choke Positioning Spring BS-630735
...
16
Fuel Fitting BS-632164
...
17
Throttle Crack Screw/Idle Speed Screw BS-651025
...
18
Tension Spring BS-630766
...
20
Idle Restrictor Screw BS-640027
...
20A
Idle Restrictor Screw Cap BS-640053
...
25
Float Bowl BS-631867
...
27
Float Shaft BS-631024
...
28
Float BS-632019
...
29
Float Bowl "O" Ring BS-631028
...
30
Inlet Needle, Seat & Clip (Incl. 31) BS-631021
...
31
Spring Clip BS-631022
...
36
Main Nozzle Tube BS-640113
...
37
"O" Ring, Main Nozzle Tube BS-632547
...
40
High Speed Bowl Nut BS-640114
...
44
(C) FITTING 90 DEG W BS-7027110YP
...
47
Welch Plug, Idle Mixture Well BS-630748
...
48
Welch Plug, Atmospheric Vent BS-631027

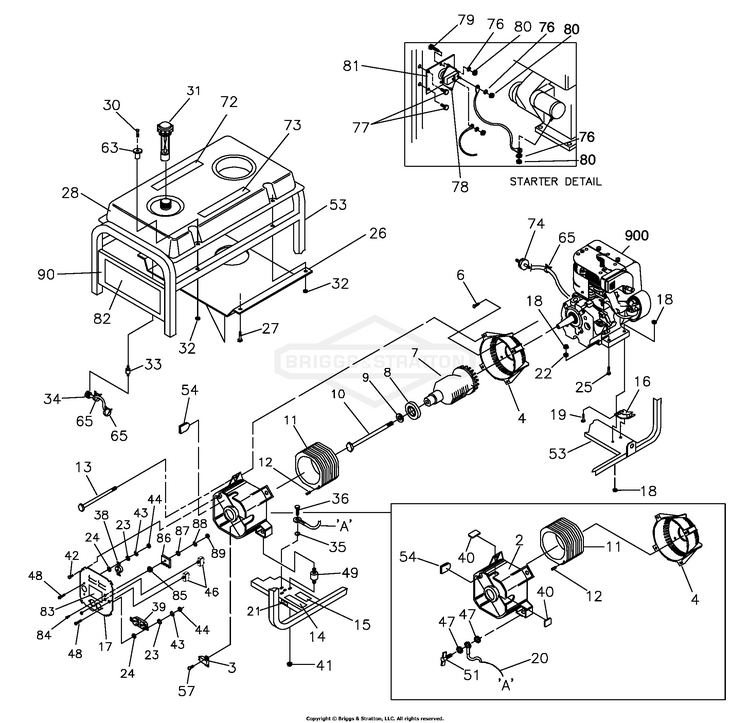

Main Unit

...
...
2
CARRIER, Rear Bearing BS-66825B
...
3
ASSEMBLY, Brush & Bridge Rectifier BS-91825
...
4
ADPTR, HSNG, 8 HP BS-66365DGS
...
6
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
7
ASSY, RTR, 5000, 105MM DPE BS-74716JGS
...
8
BEARING BS-65791GS
...
9
WASHER, Special BS-67451
...
10
CAPSCREW, Hex Head BS-75431GS
...
11
ASSY, STATOR, 5000DPE105, TRKL-BC BS-B2762JGS
...
12
PIN, ROLL 4MM x 10 BS-81917GS
...
13
BOLT, Stator BS-86308CGS
...
14
DECAL, 1-800 Number BS-20566GS
...
15
DECAL, 1-800-4-My Home BS-B4901
...
16
MOUNT, Vibration 45°. BS-70642GS
...
17
PNL, CNTRL BS-B3104GS
...
18
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
19
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
20
WIRE, Ground BS-195373GS
...
21
DECAL, Ground BS-B4986GS
...
22
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
23
WASHER BS-38150GS
...
24
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
25
HHCS, M8 - 1.25 x 35 BS-39414GS
...
26
SHIELD, Heat BS-78951B
...
27
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
28
TANK, Gas Plastic 5 Gal. BS-77374
...
30
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
31
SCREW BS-691677
...
32
NUT, FLANGE LOCK - M6 BS-77395GS
...
33
Kit, Valve BS-192980GS
...
34
Kit, Valve BS-192980GS
...
35
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
36
SCREW BS-313085GS
...
38
OUTLET, 120/240V Locking, 20A BS-68867GS
...
39
OUTLET, 20A,120V BS-68759GS
...
40
GROMMET, Plastic RBC BS-84242GS
...
41
NUT, Hex Locking Flange M8 BS-67989GS
...
42
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
43
WASHER, #8 Lock BS-22264
...
44
NUT, M4-0.7 Hex BS-51715GS
...
46
BREAKER, Circuit BS-94396BGS
...
48
SCREW, M4 - 0.7 x 10 Pn Hd BS-75475
...
49
MOUNT-VIBRATION BS-194153GS
...
50
SCREW, Self Tapping, STC 3 x 18 BS-82308GS
...
51
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
53
CRADLE BS-B1635B
...
54
GROMMET, RUBBER BS-67022GS
...
57
HHCS, M5-0.8 X 16 BS-49815GS
...
63
GROMMET, TANK BS-83465GS
...
65
CLAMP, Hose - 1/4" BS-48031C
...
72
DECAL, Danger BS-194799GS
...
73
DECAL, START INSTRUCTIONS BS-93826GS
...
74
FILTER, FUEL, 150 MICRN BS-68740GS
...
76
CAP BS-5022097SM
...
77
SCREW, 12-14 x 7/8 Self Drilling BS-B2153GS
...
78
SWITCH, Starter BS-77282
...
79
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
80
NUT, 1/4" - 20 Hex BS-22127
...
81
BRACKET, STARTER SWITCH BS-78289GS
...
82
DECAL, 5000, ELEC, SRS BS-B3049GS
...
83
DECAL, Control Panel BS-98247
...
84
SCREW BS-75477GS
...
85
WASHER, #10 Ext. Shakeproof BS-23762GS
...
86
RECTIFIER, BATTERY CHARGE BS-65795GS
...
87
WASHER, Rivet, 3/16 BS-1910531SM
...
88
WASHER, M5 Lock BS-49226GS
...
89
NUT, M5 x 0.8 BS-51716GS
...
90
PNL, CNTRL, 5000, SRS BS-B3105GS
...
900
ENGINE, 143.981007 BS-~NSP
...
MANUAL-OPERATOR Not Illustrated BS-B3353GS
...
Engine Oil, 28oz. Not Illustrated BS-~NSP
...
CONTROL, Hydro, Right Not Illustrated; Battery Tray Part BS-5044951B
...
HHCS, 1/4-20 X 7 Not Illustrated; Battery Tray Part BS-45000GS
...
CAP Not Illustrated; Battery Tray Part BS-5022097SM
...
Hex Nut Not Illustrated; Battery Tray Part BS-22127
...
WIRE-A, 8AWG, BLK, #0, 495MM Not Illustrated; Battery Tray Part BS-11353621GS
...
WIRE-A, 8AWG, BLK, #0, 495MM Not Illustrated; Battery Tray Part BS-11353621GS
...
Wheel Kit Optional Accessory BS-0932684
...
Cord Wrap Kit Optional Accessory BS-0932688
...
120/240V 20A Plug Optional Accessory BS-0932686

Recoil Starter (Tecumseh Engine - 143.981007)

...
...
0
Recoil Starter BS-590746
...
1
Spring Pin (Incl. 4) BS-590599A
...
2
Washer BS-590600
...
3
FAN, Flywheel BS-590679
...
4
FILTER, A/C Cartridge BS-590601
...
5
PLUG, Oil Drain BS-590678
...
6
Starter Dog BS-590680
...
7
Dog Spring BS-590412
...
8
FLYWHEEL BS-590681
...
11
Starter Housing Assembly BS-590747
...
12
Starter Rope BS-590535
...
13
SCREW BS-590850

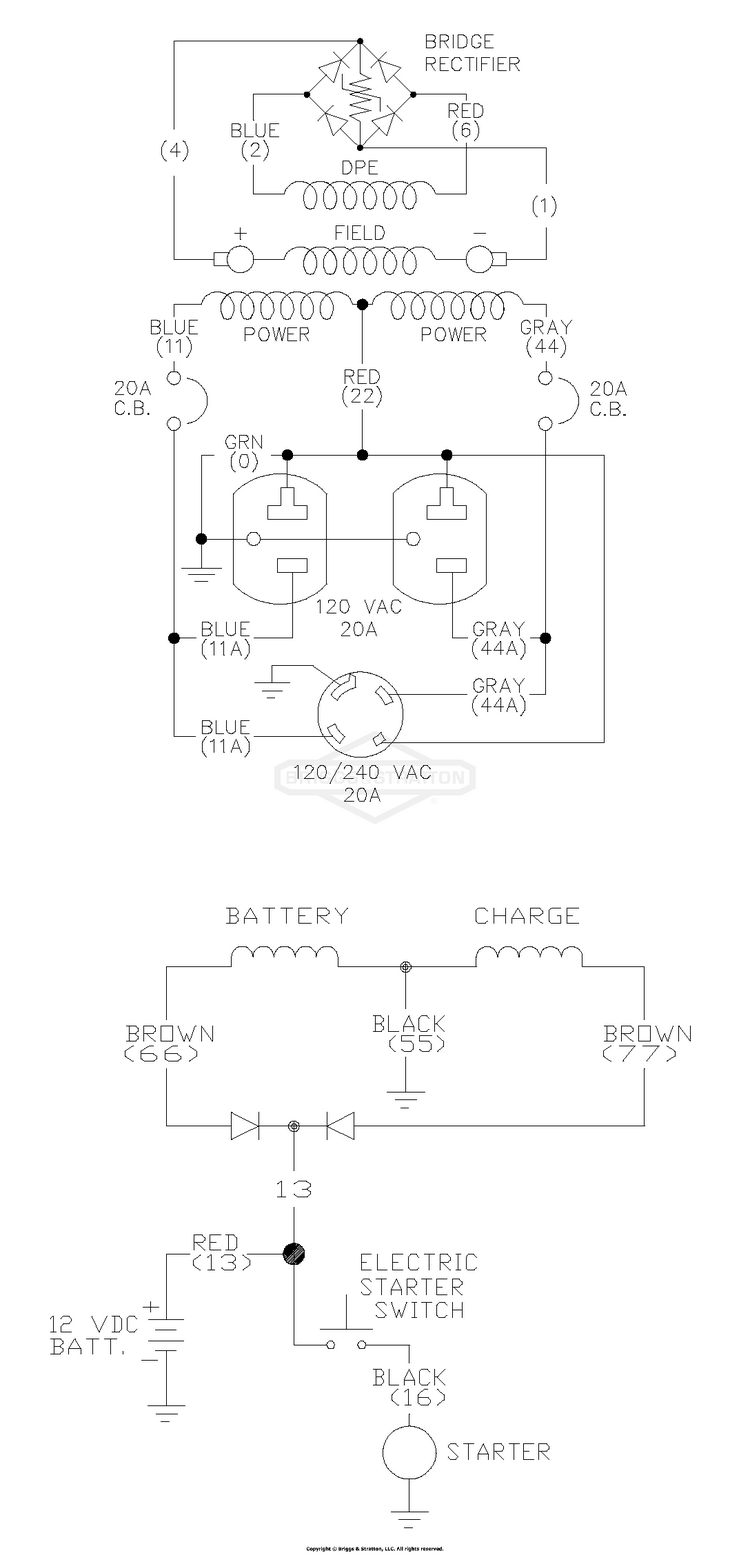

Wiring Diagram

...

No Parts Available for this Schematic

Wiring Schematic

...

No Parts Available for this Schematic
