111788-0171-01 Briggs and Stratton Engine

Model: 111788-0171-01

Back To Assemblies

Save Part Not Listed?
product name

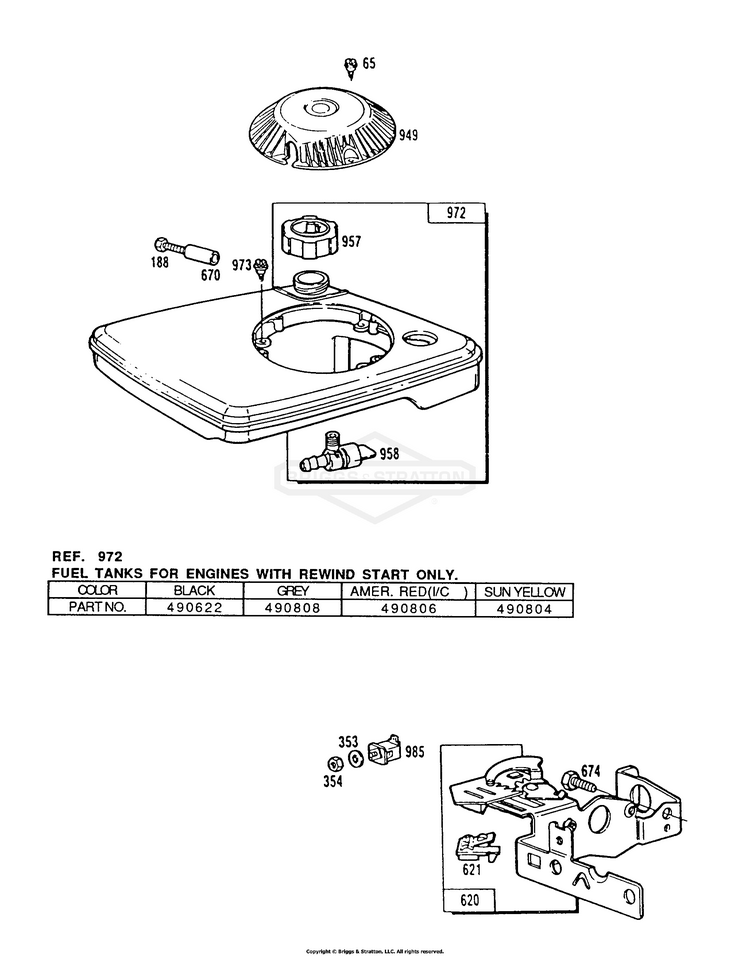

Fuel Tank Assy,Control Brkt

...
...
65
SCREW (Rewind Starter) BS-94058
...
188
KIT, Screw/Washer (Control Bracket) BS-692311
...
353
WASHER BS-691077
...
354
NUT (Ground Terminal) BS-691612
...
621
SWITCH, Stop BS-692310
...
670
SPACER, Fuel Tank BS-692294
...
674
SCREW (Tank) (Fuel Tank) BS-791680
...
957
CAP-FUEL TANK (Plastic) BS-796577
...
958
VALVE, Fuel Shut Off (Plastic) BS-698182
...
972
TANK, Fuel (Black) (Rewind Starter) BS-490622
...
972
TANK, Fuel (Yellow) (Rewind Starter) BS-490622
...
972
TANK, Fuel (Red) BS-490622
...
972
TANK, Fuel (Grey) (Rewind Starter) BS-490622
...
973
SCREW BS-94114
...
985
INSULATOR BS-691972
