11054x37NB Murray - CT20, Husqvarna Cultivator (2007)

Model: 11054x37NB

Save
 Part Not Listed?Part Not Listed?
product name

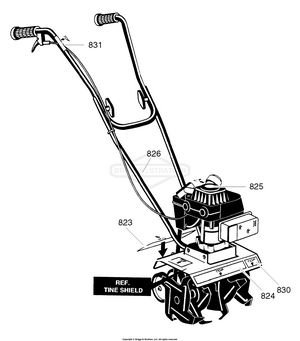

Decal Group

...
...
823
DECAL, Caution BS-601 00 12 96
...
824
DECAL, Husqvarna BS-601 00 20 96
...
825
DECAL, Engine Recoil BS-601 00 22 00
...
826
DECAL, Hold Grip BS-601 00 11 95
...
830
DECAL, CT20 BS-601 00 24 67
...
831
DECAL, Throttle Control BS-601 00 25 02

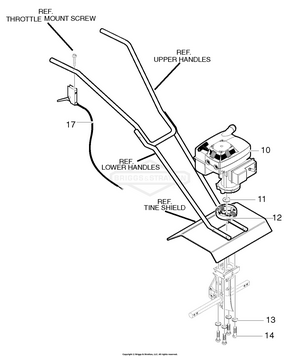

Engine Mount

...
...
11
WASHER, Flat BS-601 00 06 17
...
12
ROTOR BS-601 00 19 50
...
13
WASHER BS-601 00 00 14
...
14
SCREW BS-601 00 12 83
...
17
CABLE, Throttle BS-601 00 12 84
...
--
INSTRUCTION MANUAL BS-1740516

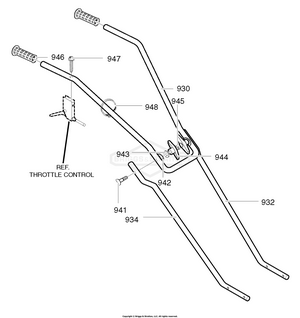

Handle Assembly

...
...
930
HANDLE, Upper BS-601 00 22 62
...
932
HANDLE, Lower LH BS-601 00 22 63
...
934
HANDLE, Lower RH BS-601 00 22 64
...
941
BOLT 5/16-18x1.63 BS-601 00 12 94
...
942
WASHER, Formed BS-601 00 23 12
...
943
FLAT WASHER BS-601 00 00 19
...
944
T KNOB BS-601 00 06 84
...
945
NUT, 5/16-18 BS-601 00 00 12
...
946
GRIP, Hand BS-601 00 06 18
...
947
SCREW BS-601 00 12 15
...
948
TIE, Cable BS-601 00 06 28

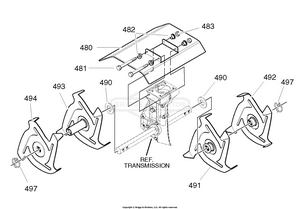

Tine Assembly

...
...
480
SHIELD, Tine BS-601 00 25 01
...
481
SCREW, 1/4-20x5.50 BS-601 00 12 87
...
482
SPACER, Flange BS-601 00 00 18
...
483
NUT, 1/4-20 BS-601 00 23 18
...
490
WASHER, Felt BS-601 00 06 02
...
491
TINE ASSEMBLY, Inner LH BS-531 30 74-52
...
492
TINE ASSEMBLY, Outer LH BS-531 30 74-53
...
493
TINE ASSEMBLY, Inner RH BS-531 30 74-54
...
494
TINE ASSEMBLY, Outer RH BS-531 30 74-55
...
497
PIN, Latch BS-531 30 74-56

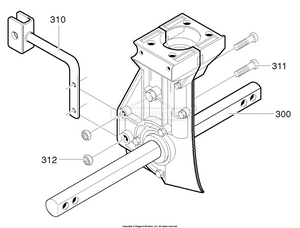

Transmission Group

...
...
300
TRANSMISSION BS-601 00 24 64
...
310
BRACKET, Depth Rod BS-601 00 20 06
...
311
SCREW, 1/4-20x1.25 BS-601 00 00 69
...
312
NUT, 1/4-20 BS-601 00 23 18

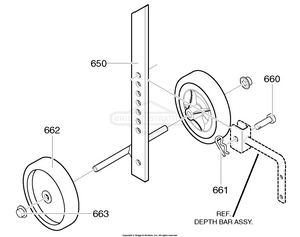

Wheel Assembly

...
...
650
WHEEL SUPPORT ASSEMBLY BS-601 00 12 88
...
660
PIN, Clevis BS-601 00 18 60
...
661
HAIR PIN BS-601 00 06 04
...
662
TIRE & RIM BS-601 00 22 57
...
663
NUT, Push on BS-601 00 12 91
...
...
...
