11052x92D Murray - Cultivator (2003)

Model: 11052x92D

Back To Assemblies

Save Part Not Listed?
product name

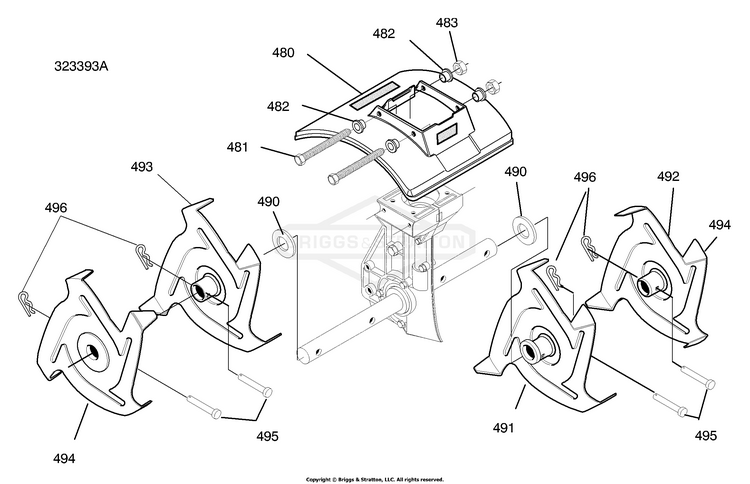

Tine & Shield Assembly

...
...
480
Shield, Tine (Includes Ref. No's. 484, 485 and four of Ref. No. 482) BS-7401015
...
481
Screw, 1/4-20x5.50 BS-310056
...
482
Spacer, Flange BS-672734MA
...
483
NUT, 1/4-20 BS-703251
...
484
Decal, Murray BS-48X894
...
485
Decal, Caution BS-48X4031
...
490
Washer, Felt BS-56158MA
...
491
Tine Assy. Inner LH BS-1901047E701
...
492
Tine Assy. Outer LH BS-56155E701
...
493
Tine Assy. Inner RH BS-1901048E701
...
494
Tine Assy. Outer RH BS-56154E701MA
...
495
Clevis Pin BS-56123MA
...
496
PIN, 3/32 X 1.6 BS-703300
