product name

11052x4NC Murray - Cultivator (2004)

Model: 11052x4NC

Save
 Part Not Listed?Part Not Listed?
product name

Depth Rod Mount

...
...
300
Transmission BS-1901017
...
310
Bracket, Depth Rod BS-339390E701MA
...
311
BOLT, 1/4-20 BS-5025010X12SM
...
312
NUT, 1/4-20 BS-703251

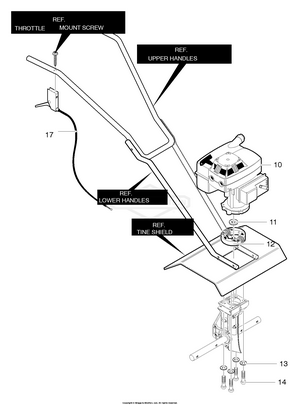

Engine Mount

...
...
11
Flat washer BS-56694
...
12
Rotor BS-335350MA
...
13
SLW, .256X.487X.062 Z BS-7090052SM
...
14
SCREW BS-703588
...
17
Cable, Throttle BS-319306MA
...
--
Instruction Manual BS-F-041305C

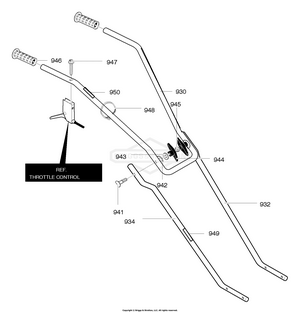

Handle Assembly

...
...
930
Upper Handle (Includes Ref. No. 950) BS-7401026MA
...
932
Lower Handle LH BS-339398E701MA
...
934
Lower Handle RH (Includes Ref. No. 949) BS-7401023MA
...
941
Bolt 5/16-18X1.63 BS-1901029MA
...
942
Formed Washer BS-783000MA
...
943
Flat washer BS-120393
...
944
KNOB, WING 3.00 BS-1501260MA
...
945
Nut, 5/16-18 BS-120376
...
946
Hand Grip BS-56778MA
...
947
Screw 10-16x1.5 BS-426635MA
...
948
Cable Tie BS-712267
...
949
Decal, Caution BS-577434
...
950
Decal, Throttle Control BS-48X4018MA

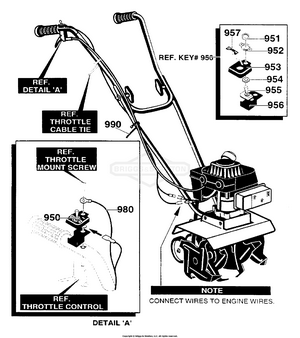

Starter Switch Mount

...
...
950
Switch Assemby BS-333172MA
...
951
Plate, Indicator BS-1901044
...
953
Bracket, Switch BS-56236 Z
...
954
Lockwasher BS-1901043
...
955
Switch BS-1901041
...
956
Bracket, Switch BS-56822 Z
...
957
Decal, On-Off BS-339293
...
980
Wire Assembly, Kill Switch BS-740034
...
990
Fastener, Cable BS-712267

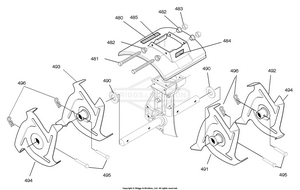

Tines & Shield Assembly

...
...
480
Shield, Tine BS-7401028MA
...
481
Screw, 1/4-20X5.50 BS-310056
...
482
Spacer, Flange BS-1901023
...
483
NUT, 1/4-20 BS-703251
...
484
Decal, Murray BS-48X894
...
485
Decal, Caution BS-48X4017
...
490
Washer, Felt BS-56158MA
...
491
Tine Assy. Inner LH BS-56157E701
...
492
Tine Assy. Outer LH BS-56155E701
...
493
Tine Assy. Inner RH BS-56156E701
...
494
Tine Assy. Outer RH BS-56154E701MA
...
495
Clevis Pin BS-56123MA
...
496
PIN, 3/32 X 1.6 BS-703300

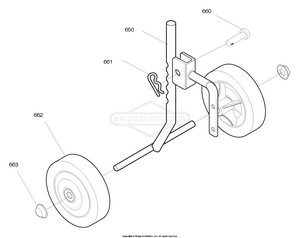

Wheel Mount

...
...
650
Wheel Support Assy. BS-331176 Z
...
660
Clevis Pin BS-56123MA
...
661
PIN, 3/32 X 1.6 BS-703300
...
662
Tire & Rim BS-338307MA
...
663
Push On Nut BS-73664MA
...
...
...
