product name

10D137-0006-F8 Briggs and Stratton Engine

Model: 10D137-0006-F8

Back To Assemblies

Save Part Not Listed?
product name

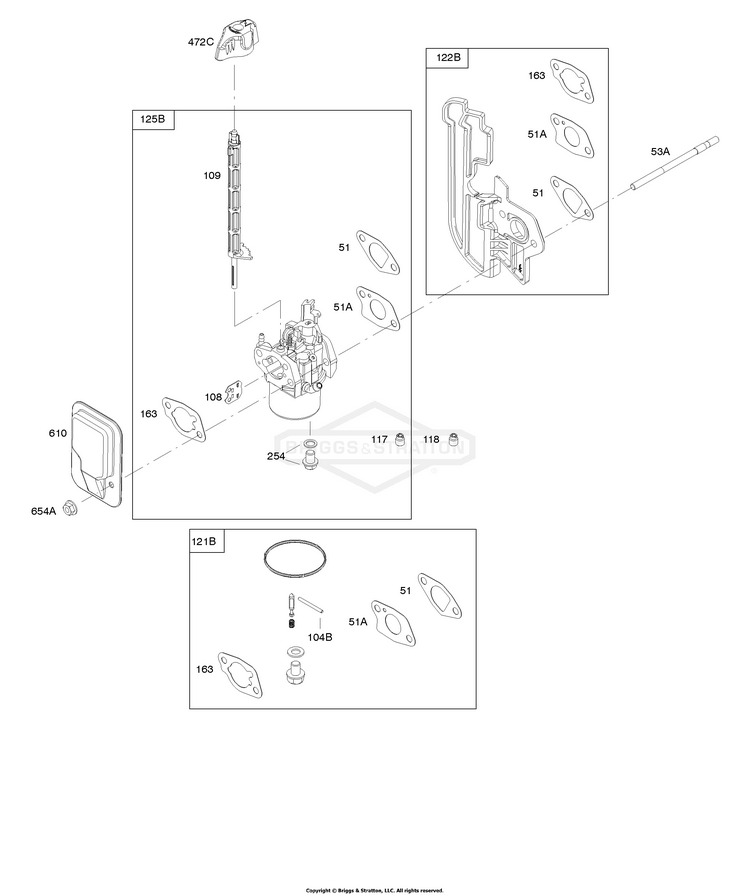

Carburetor

...
...
51
GASKET, Intake BS-590612
...
51A
GASKET, Intake BS-590613
...
53A
STUD (Carburetor) BS-591455
...
104B
PIN, Float Hinge BS-592486
...
108
VALVE, Choke BS-591767
...
109
SHAFT, Choke BS-591542
...
117
JET, Main (Standard) BS-591768
...
118
JET, Main (High Altitude) BS-591769
...
121B
KIT, Carburetor Overhaul BS-591770
...
122B
SPACER, Carburetor BS-592388
...
125B
CARBURETOR BS-595778
...
163
GASKET, Air Cleaner BS-590605
...
254
DRAIN, Carburetor Bowl BS-592493
...
472C
KNOB, Choke Shaft BS-791948
...
610
ARRESTER, INTAKE BS-84005068
...
654A
NUT (Carburetor) BS-591527
