104772-3112-02 Briggs and Stratton Engine

Model: 104772-3112-02

Back To Assemblies

Save Part Not Listed?
product name

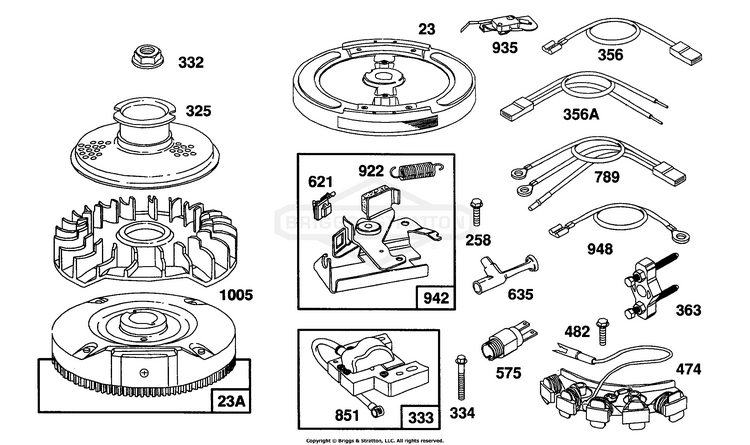

Flywheels,Brake, Misc Elect

...
...
23A
FLYWHEEL BS-491814
...
23
FLYWHEEL BS-493911
...
258
SCREW (Brake) BS-810075
...
325
PULLEY, Rope Starter BS-492676
...
332
NUT (Flywheel) BS-810042
...
333
ARMATURE-MAGNETO BS-590454
...
334
SCREW BS-810035
...
356A
WIRE, Stop BS-493468
...
356
WIRE, Stop BS-399094
...
363
PULLER, Flywheel BS-19203
...
474
ALTERNATOR BS-494254
...
482
SCREW (Stator) BS-690938
...
575
SWITCH, Key Includes: 392832 Key Set BS-690646
...
621
SWITCH, Stop BS-692310
...
635
BOOT-SPARK PLUG BS-798619
...
789
HARNESS, Wiring Used on Engines With Brake. BS-492518
...
789
HARNESS, Wiring Used on Engines Without Brake. BS-492520
...
851
TERMINAL, Spark Plug BS-493880S
...
922
SPRING, Brake BS-262554
...
935
SWITCH, Interlock BS-492371
...
942
BRAKE BS-492372
...
948
WIRE ASSEMBLY BS-492519
...
1005
FAN, Flywheel BS-280887
