1046-0 Briggs and Stratton Pressure Washer 3,500 PSI

Model: 1046-0

Save
 Part Not Listed?Part Not Listed?
product name

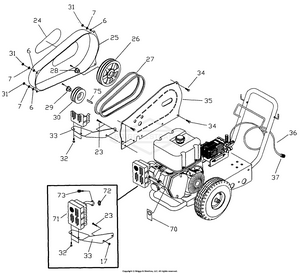

Drive System

...
...
7
WASHER, Lock BS-22129GS
...
17
NUT, Lock BS-99583GS
...
23
WASHER BS-703332
...
24
DECAL, Shroud 1046 BS-82328
...
25
SHROUD, PDR Coat Red BS-B2612
...
26
PULLEY, 8.75 OD BS-B2282B
...
27
BELT, 1046-0 BS-B2283
...
28
BUSHING, 24mm BS-B2281B
...
29
BUSHING, 1" ID BS-B2281A
...
30
PULLEY, 4.25" OD BS-B2282A
...
31
SKID PLATE BS-5045771B
...
32
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
33
BRCKT, MFFLR BS-B2487GS
...
34
HHCS, M8 x 20 BS-39253GS
...
35
BACK PANEL, Powder Coat Red BS-B2613
...
36
HOSE, Chemical Inject BS-A1040AGS
...
37
FILTER-CHEM HOSE BS-709496
...
70
TAG BS-B1210AGS
...
71
MUFFLER BS-A7433GS
...
72
GASKET, Exhaust BS-90239GS
...
73
SCREW BS-95531GS

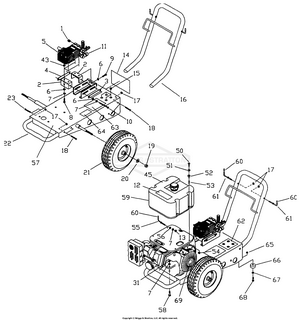

Frame, Fuel System and Handle

...
...
1
THERMAL RELIEF BS-195016GS
...
2
BRACKET, Pump Mounting BS-AB1642
...
3
BRACKET, Bolt Spacer BS-AB1643
...
4
BRACKET, Bolt w/ Nut BS-AB1648
...
5
PUMP, 3500 @ 46PM BS-B2327
...
7
WASHER, Lock BS-22129GS
...
8
SHC, M8 1.25 x 20 BS-40976
...
9
SCREW BS-51730GS
...
10
HHCS, M8 1.25 x 150 BS-81953
...
11
Conn, Gdn Hse BS-95320GS
...
12
LABEL, Warning BS-21786GS
...
13
NUT, 5/16 - 18 BS-22259GS
...
14
DECAL, UNIT, PW, 01046 BS-B2288GS
...
15
GROMMET BS-30809GS
...
16
HANDLE, Powder Coat BS-B2075
...
17
NUT, Lock BS-99583GS
...
18
BOLT, Carriage BS-B2043GS
...
19
NUT, NYLOK HEX 1/2-20 BS-26727GS
...
20
Washer, Flat 1/2 BS-22304GS
...
21
ASSY, Wheel 4 x 12 Dia. BS-89742
...
22
BUMPER BS-B1982GS
...
23
WASHER BS-703332
...
31
SKID PLATE BS-5045771B
...
43
WASHER, Flat M8 x 20 Special BS-67451
...
45
CAP, TANK, FUEL, KELCH, H60201 BS-99381GS
...
50
SCREW BS-38750GS
...
51
WASHER BS-B2495GS
...
52
BSHNG, MNTNG, TANK BS-B2465GS
...
53
SPACER, Sleeve Grommet BS-B2513
...
54
NUT, FLANGE LOCK - M6 BS-77395GS
...
55
HOOK, Square Neck (Fuel Tank) BS-B2532
...
56
WASHER, Flat 3/8" BS-22131GS
...
57
BASE, Power Red BS-AB2074C
...
58
HHCS, M8-1.25 x 40 BS-57821
...
59
ASSY, TANK, FUEL, 2 GAL BS-B2346GS
...
60
CAP, Vinyl, Black BS-B2516GS
...
61
HOOK, Gun BS-B2150GS
...
62
DECAL, Nozzles BS-B2329
...
63
DECAL, INSTRCTN, 01046 BS-B2330GS
...
64
DECAL, 1-800 Number BS-20566GS
...
65
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
66
VIBE MOUNT, with Washer BS-191413GS
...
67
Washer, .34 x 1 x 10 BS-50190GS
...
68
SCREW BS-42909GS
...
69
DECAL, RECOIL, GN-360 BS-91682DGS

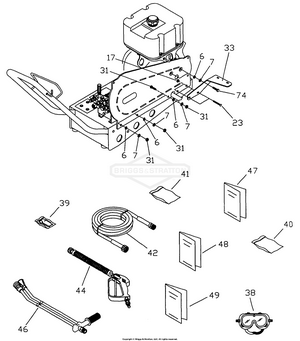

Hardware and Accessories

...
...
7
WASHER, Lock BS-22129GS
...
17
NUT, Lock BS-99583GS
...
23
WASHER BS-703332
...
31
SKID PLATE BS-5045771B
...
33
BRCKT, MFFLR BS-B2487GS
...
38
GOGGLES BS-87815GS
...
39
KIT, Quick Connect Nozzle Clean BS-B2509
...
40
KIT, Handle Hardware BS-B2684
...
41
KIT-QC NOZZLES BS-204170GS
...
42
ASSY, Hose 4000 PSI 3/8 50' BS-B3039
...
44
GUN BS-704311
...
46
WAND, Dual BS-B1748GS
...
47
MANUAL, AR Pump BS-B2081
...
48
MANUAL-OPERATOR BS-B2287GS
...
49
MANUAL, Engine BS-A1697
...
74
HHCS, 5/16-24 x 3/4 BS-48614
...
...
...
