1019-3 Briggs and Stratton Portable Generator 7,500 EXL

Model: 1019-3

Save Part Not Listed?
product name

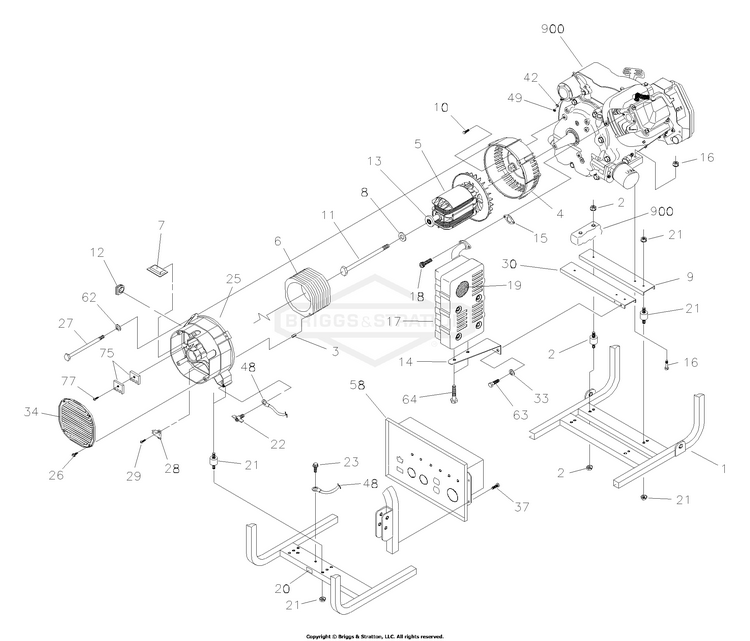

Alternator

...
...
1
CRADLE, Red BS-M197022GS
...
2
KIT, Mount,Vibration BS-194219GS
...
3
PIN, Roll 4mm x 10 BS-81917GS
...
4
HOUSING, Engine Adapter BS-92247GS
...
5
ASSY, Rotor BS-B1342GGS
...
6
ASSY, Stator BS-B1897AGS
...
7
ASSY, Power Regulator BS-84132GS
...
8
WASHER, Special Flat - M8 BS-96796GS
...
9
SUPPORT, Engine BS-M92531GS
...
10
HHMS, 5/16-24 x 3/4" Lg. SEMS BS-86307GS
...
11
HHCS, 5/16-24 x 10-5/8 Lg. BS-47481GS
...
12
GROMMET, Rubber BS-67022GS
...
13
BEARING BS-65791GS
...
14
BRACKET, Muffler BS-92532GS
...
15
GASKET, Muffler BS-90239GS
...
16
KIT, Engine Mounting Hardware BS-195078GS
...
17
MUFFLER BS-A7433GS
...
19
SCREEN, Spark Arrestor BS-83083GS
...
20
DECAL, Ground BS-B4986GS
...
21
KIT, Mount,Vibration BS-194218GS
...
22
SCREW,Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
TAPTITE, M5-0.8 x 10 Lg. BS-74908GS
...
27
BOLT BS-66449LGS
...
28
ASSY, Brush Holder BS-66386GS
...
29
HHCS, M5-0.8 X 16 BS-49815GS
...
30
SUPPORT, Engine & Muffler BS-M92731GS
...
34
COVER, Bearing Carrier BS-B4871GS
...
37
SCREW, 12-14 x 7/8, Self Driller BS-B2153GS
...
48
WIRE, Ground BS-195373GS
...
58
ASSY, Control Panel (see "Frame") BS-B4366GS
...
75
RECTIFIER, Battery Charge BS-65795GS
...
77
TAPTITE, M5-0.8 x 30 Lg. BS-66849CGS
...
BOTTLE, Oil Not Illustrated BS-BB3061GS
...
COVER, Unit Not Illustrated BS-B4767GS
...
PLUG, SPARK BS-84007216
...
MANUAL, Operator's Not Illustrated BS-189713GS
...
FILTER,Air Not Illustrated BS-73111GS
...
WRENCH, Spark Plug Not Illustrated BS-84882GS
...
PLUG, 120/240V, 30A Not Illustrated BS-43438GS
...
FILTER, Oil Not Illustrated BS-70185GS
...
Set, Cord, 30A Not Illustrated BS-191895DGS
...
MANUAL, Engine Not Illustrated BS-A8927GS
...
CHARGER, Battery Not Illustrated BS-84002790
...
DECAL, Family, CA EVP Not Illustrated BS-199384GS
...
CABLE, Battery Charge Not Illustrated BS-65787GS
...
PLUG, 120V/30A Not Illustrated BS-100523GS
...
KIT, Decals Service Not Illustrated BS-194033GS
...
Cord Wrap Optional Accessories Not Included BS-84883GS
...
Front Draw Bar w/Spindles-RH Side Optional Accessories Not Included BS-100126

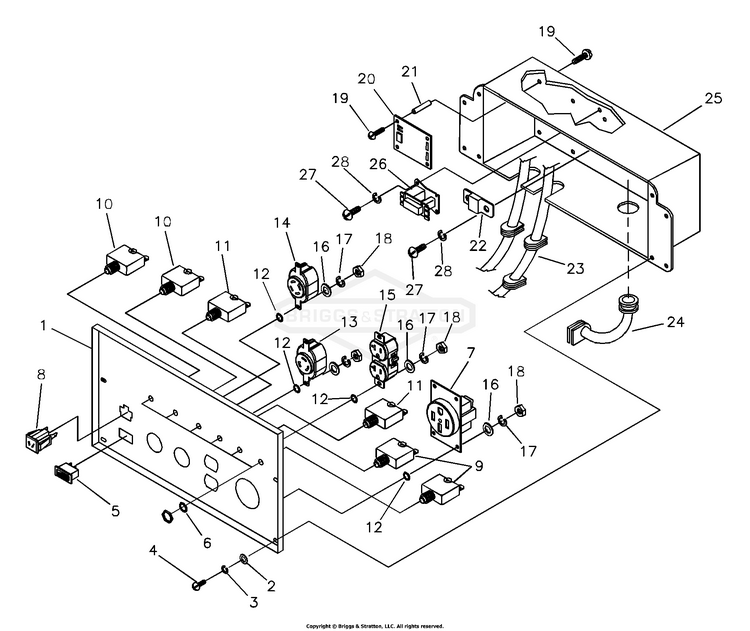

Control Panel

...
...
1
PANEL, Control BS-BB4461GS
...
5
SWITCH, Idle Control BS-82538GS
...
7
OUTLET, 50A, 240V BS-B4262GS
...
8
OUTLET, 10A, 12VDC BS-90418GS
...
9
BREAKER, Circuit, 35A BS-75207NGS
...
10
BREAKER-CIRCUIT 30A BS-706178
...
11
BREAKER-CIRCUIT 20A BS-209872GS
...
13
OUTLET-120V TL30A BS-705932
...
14
OUTLET, 30A, 120V/240V Locking BS-43437GS
...
15
OUTLET, 20A, 120V BS-68759GS
...
20
BOARD, System Control BS-83970GS
...
21
STANDOFF, 3/4" Hex BS-64525GS
...
22
BREAKER, Circuit, 10A (auto), 12V BS-87962GS
...
23
ASSY,Wire Harness BS-84335GS
...
24
GROMMET BS-84134GS
...
25
BOX, Control Panel BS-B92069GS
...
26
TRANSFORMER, Idle Control BS-84028GS

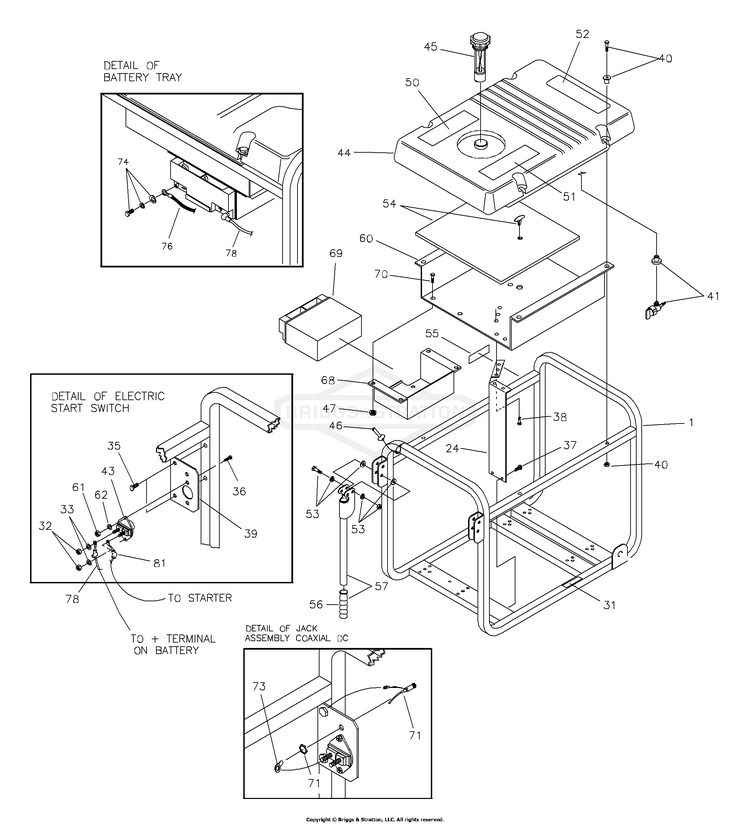

Frame

...
...
1
CRADLE, Red BS-M197022GS
...
24
SHIELD, Heat BS-194390GS
...
31
DECAL, Hot Muffler BS-196830GS
...
35
SCREW, 10 - 16 x .68 Self Drill BS-195094GS
...
37
SCREW, 12-14 x 7/8, Self Driller BS-B2153GS
...
38
CRIMPTITE, 10-24 x 1/2" BS-56893GS
...
39
BRACKET, Switch BS-188987GS
...
40
KIT, Hardware Tank Fuel (Includes Qty. 4) BS-194401GS
...
41
KIT,Valve Tank BS-192980GS
...
43
SWITCH, Starter BS-77282GS
...
44
ASSY,Tank, Fuel (Includes Items 41, 50, 51, & 52) BS-193823GS
...
45
CAP, with Gauge, Fuel BS-B4363GS
...
46
PIN, with Lanyard BS-B4135GS
...
50
DECAL, Instruction Fuel BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-93826GS
...
53
KIT, Fold Down Handle Hardware BS-194034GS
...
54
KIT, Insulation with Clip BS-194448GS
...
55
DECAL, Fuel Shut-Off BS-197798GS
...
56
GRIP BS-198669GS
...
57
ASSY, Handle (Includes Item 56) BS-B193200GS
...
60
HEATSHIELD BS-208564GS
...
68
TRAY, Battery BS-192985GS
...
69
BATTERY BS-193043GS
...
71
ASSY, Jack, DC BS-192531GS
...
73
LUG, 5/16 #22/18 I-S BS-58359GS
...
74
KIT, Battery Hardware BS-193347GS
...
76
ASSY,Wire, #55 BS-185939HGS
...
78
ASSY,Wire, #13 BS-189302CGS
...
81
ASSY,Wire, #16 BS-189302BGS
...
COVER, Unit Not Illustrated BS-B4767GS
...
PLUG, SPARK BS-84007216
...
MANUAL, Operator's Not Illustrated BS-189713GS
...
FILTER,Air Not Illustrated BS-73111GS
...
WRENCH, Spark Plug Not Illustrated BS-84882GS
...
PLUG, 120/240V, 30A Not Illustrated BS-43438GS
...
FILTER, Oil Not Illustrated BS-70185GS
...
Set, Cord, 30A Not Illustrated BS-191895DGS
...
MANUAL, Engine Not Illustrated BS-A8927GS
...
CHARGER, Battery Not Illustrated BS-84002790
...
DECAL, Family, CA EVP Not Illustrated BS-199384GS
...
CABLE, Battery Charge Not Illustrated BS-65787GS
...
PLUG, 120V/30A Not Illustrated BS-100523GS
...
KIT, Decals Service Not Illustrated BS-194033GS
...
Cord Wrap Optional Accessories Not Included BS-84883GS
...
Front Draw Bar w/Spindles-RH Side Optional Accessories Not Included BS-100126

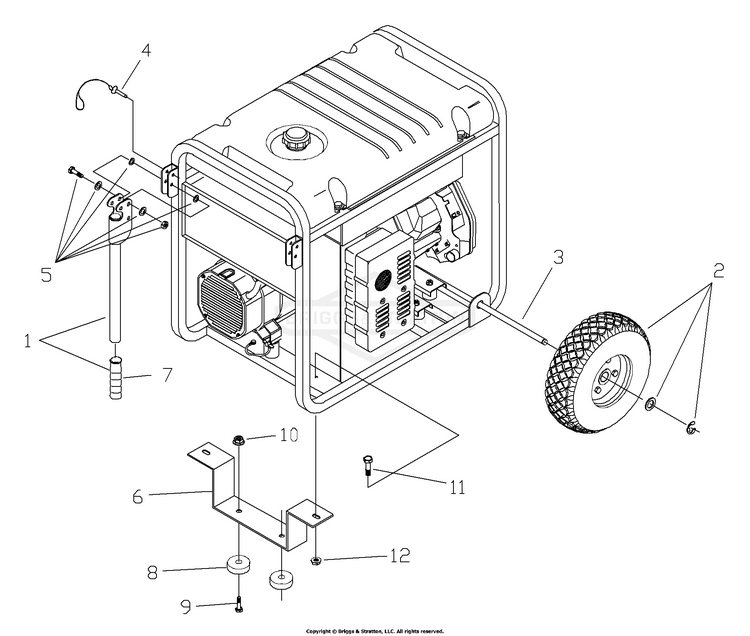

Wheel Kit

...
...
1
ASSY, Handle (Includes Item 7) BS-B193200GS
...
2
KIT,Wheel BS-194509GS
...
3
AXLE, 5/8" x 23.62" BS-191267GGS
...
4
PIN, with Lanyard BS-B4135GS
...
5
KIT, Hardware Fold Down Handle BS-194034GS
...
6
SUPPORT LEG BS-B186927GS
...
7
GRIP BS-198669GS
...
8
VIBE MOUNT BS-191413GS

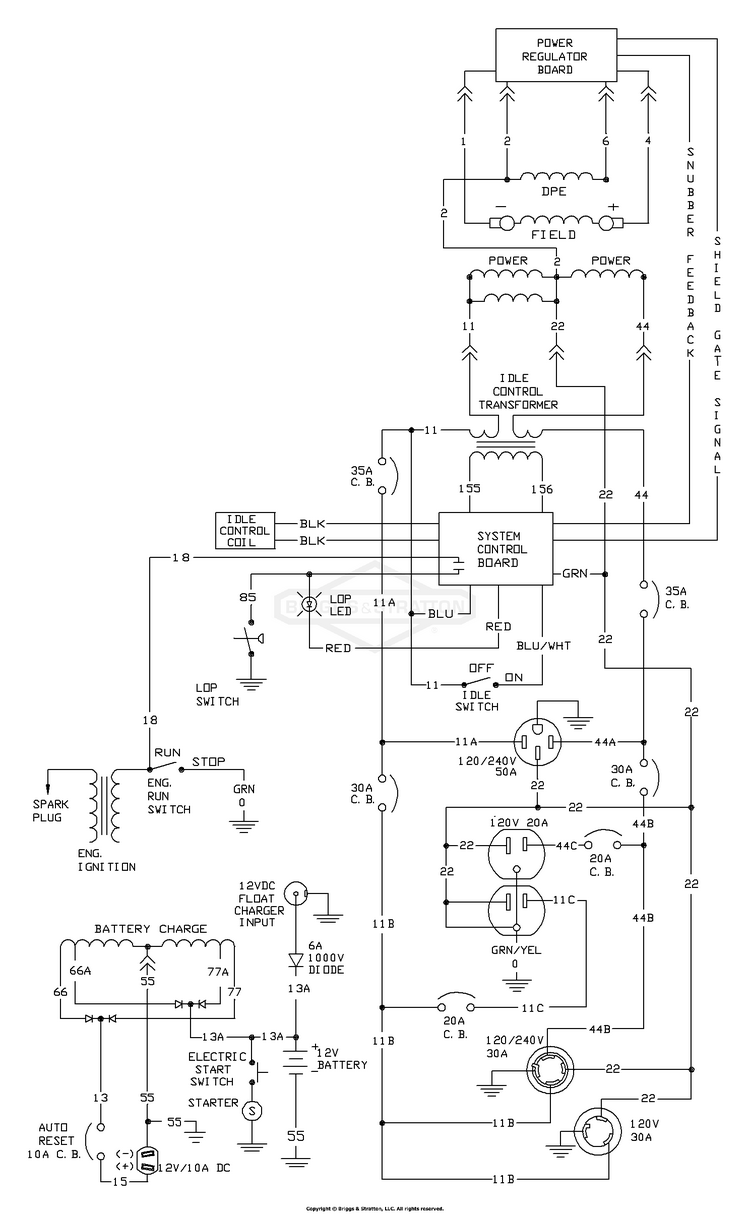

Wiring Diagram

...

No Parts Available for this Schematic

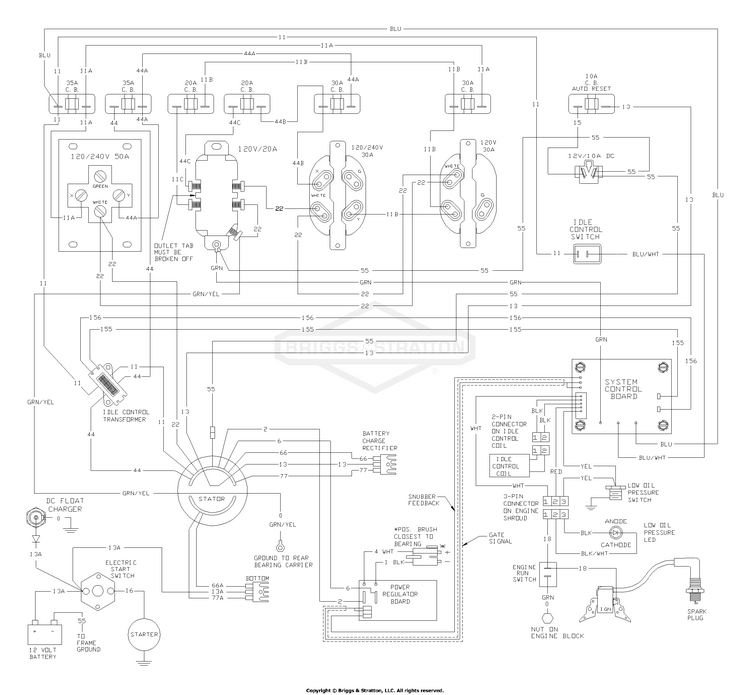

Wiring Schematic

...
