1019-0 Briggs and Stratton Portable Generator 7,500 EXL

Model: 1019-0

Save Part Not Listed?
product name

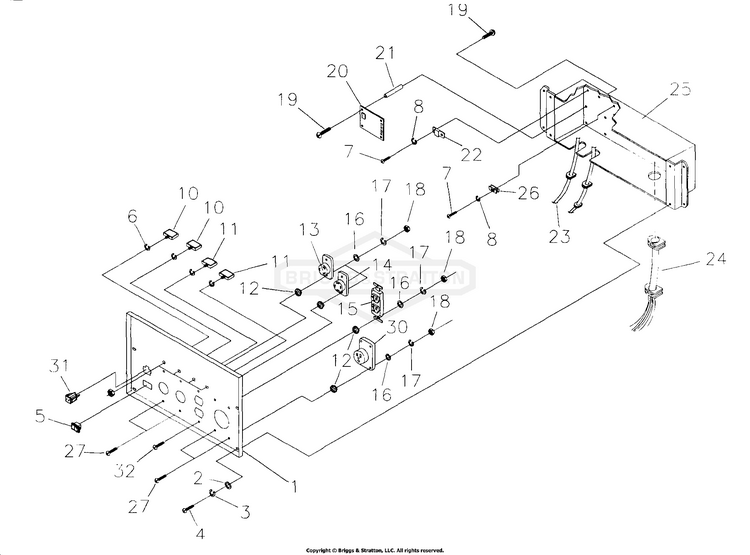

Control Panel

...
...
1
PANEL, Control BS-B1331GS
...
2
WASHER, Rivet, 3/16 BS-1910531SM
...
3
WASHER, M5 Lock BS-49226GS
...
4
SCREW, M5-0.8 x 12 mm BS-91526GS
...
5
SWITCH, Idle Control BS-82538GS
...
6
WASHER, 7/16" Int Lock BS-82881GS
...
7
SCREW, M3-0.5 x 10mm BS-43181GS
...
8
WASHER, M3 Lock BS-43182GS
...
10
BREAKER-CIRCUIT 30A BS-706178
...
11
BREAKER-CIRCUIT 20A BS-209872GS
...
12
WASHER, #8 Shakeproof BS-23365GS
...
13
OUTLET-120V TL30A BS-705932
...
14
OUTLET, 30A, 120V/240V Locking Type BS-43437GS
...
15
OUTLET, 20A,120V BS-68759GS
...
16
WASHER, M4 Flat BS-43180GS
...
17
WASHER BS-847333
...
18
NUT, M4-0.7 Hex BS-51715GS
...
19
SCREW, #6-32 x 3/8" BS-64526GS
...
20
BOARD, System Control BS-83970GS
...
21
3/4" Hex Standoff BS-64525GS
...
22
CIRCUIT BREAKER, 10A (Automatic), 12V BS-87962GS
...
23
ASSEMBLY, Wire Harness BS-84335GS
...
24
GROMMET, Rubber Connector BS-84134GS
...
25
BOX, Control Panel BS-92069GS
...
26
TRANSFORMER, Idle Control BS-84028GS
...
27
SCREW, M4-0.7x10mm BS-75475GS
...
30
OUTLET, 50A, 240V BS-74191GS
...
31
OUTLET, 10A, 12VDC BS-90418GS
...
32
PPHMS, M4-0.7 x 16 BS-75476GS

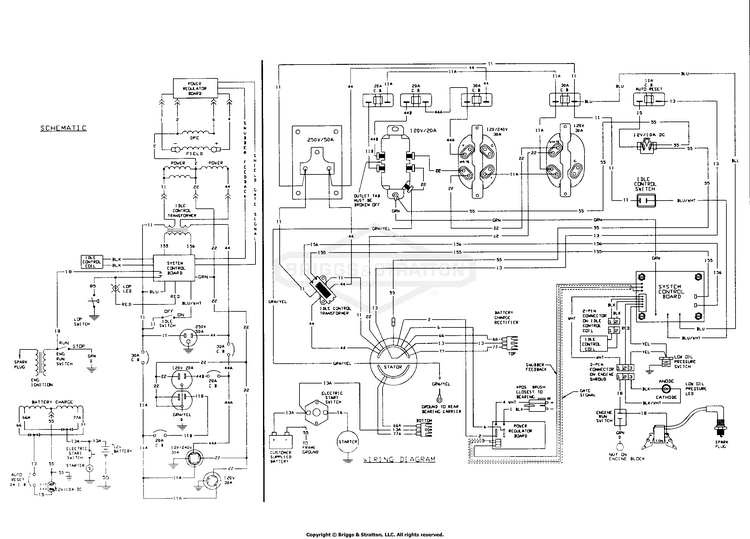

Electrical Data

...

No Parts Available for this Schematic

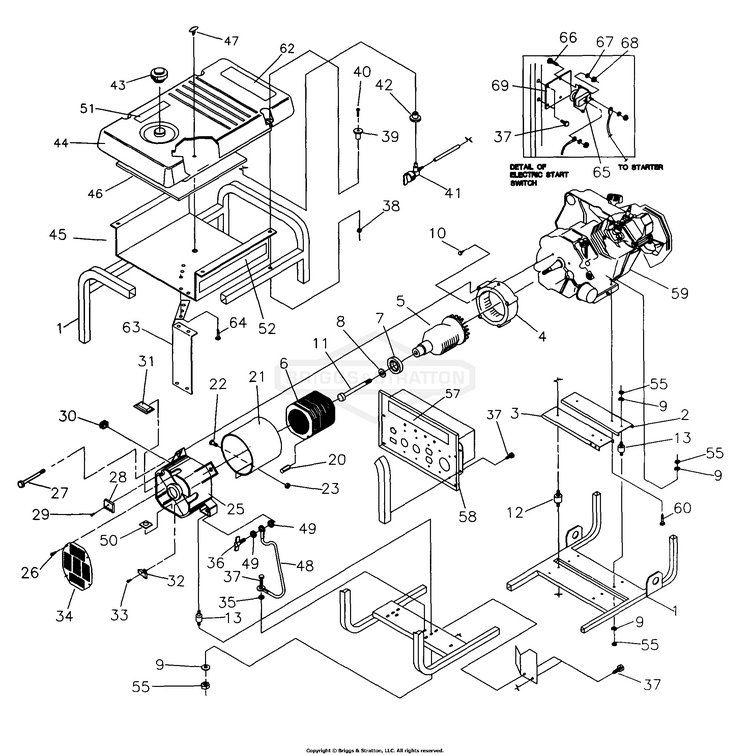

Generator

...
...
1
CRDL, 6500, BLK BS-B92432GS
...
2
SUPPORT, Engine BS-B92531GS
...
3
SUPPORT, Eng/Muffler BS-N92731GS
...
4
HOUSING, ENGINE ADAPTER BS-92247GS
...
5
ASSY, Rotor BS-B1342GGS
...
6
ASSEMBLY, STATOR BS-B1897GS
...
7
BEARING BS-65791GS
...
8
WASHER, SPECIAL FLAT - M8 BS-67451GS
...
9
WASHER, LOCK - M8 BS-22129GS
...
10
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
11
HHCS, 5/16-24 x 10.625 LG. BS-47481GS
...
12
MOUNT, VIBRATION BS-92069GS
...
13
MOUNT, VIBRATION BS-82857GS
...
20
PIN, ROLL 4MM x 10 BS-81917GS
...
21
WRAP, STATOR BS-81887JGS
...
22
HHCS, M5-0.8 x 12 LG BS-52618GS
...
23
NUT, LOCKING-M5 BS-52856GS
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
27
BOLT BS-66449LGS
...
28
RECTIFIER, BATTERY CHARGE BS-65795GS
...
29
TAPTITE, M5-0.8 x 30 LG. BS-66849CGS
...
30
GROMMET, RUBBER BS-67022GS
...
31
ASSEMBLY, POWER REGULATOR BS-84132GS
...
32
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
33
HHCS, M5-0.8 X 16 BS-49815GS
...
34
COVER, Bearing Carrier BS-B4871GS
...
35
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
36
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
37
SCREW BS-313085GS
...
38
NUT, FLANGE LOCK - M6 BS-77395GS
...
39
GROMMET, TANK BS-83465GS
...
40
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
41
Kit, Valve BS-192980GS
...
42
Kit, Valve BS-192980GS
...
43
CAP, FUEL BS-90878GS
...
44
ASSY,Tank, Fuel BS-193500GS
...
45
SHIELD, HEAT BS-92039GS
...
46
INSULATION, # 2-1/4" THICK BS-92665GS
...
47
CLIP, INSULATION BS-85000GS
...
48
WIRE, Ground BS-195373GS
...
49
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
50
MOUNT, CABLE TIE BS-57593GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, HEAT SHIELD BS-B2165GS
...
55
NUT, 5/16-18 HEX BS-25244GS
...
57
DECAL, CONTROL PANEL BS-B2166GS
...
58
ASSEMBLY, CONTROL BOX BS-B1332GS
...
59
ENGINE, 15 HP. GPS. BS-~NSP
...
60
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
62
DECAL, START INSTRUCTIONS BS-93826GS
...
63
SHIELD, HEAT BS-96068GS
...
64
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
65
SWITCH, STARTER BS-77282GS
...
66
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
67
WASHER BS-22097GS
...
68
NUT, Hex, 1/4-20 BS-22127GS
...
69
BRACKET, STARTER SWITCH BS-78289GS
