1006-0 Briggs and Stratton Portable Generator 6,500 Watt

Model: 1006-0

Save Part Not Listed?
product name

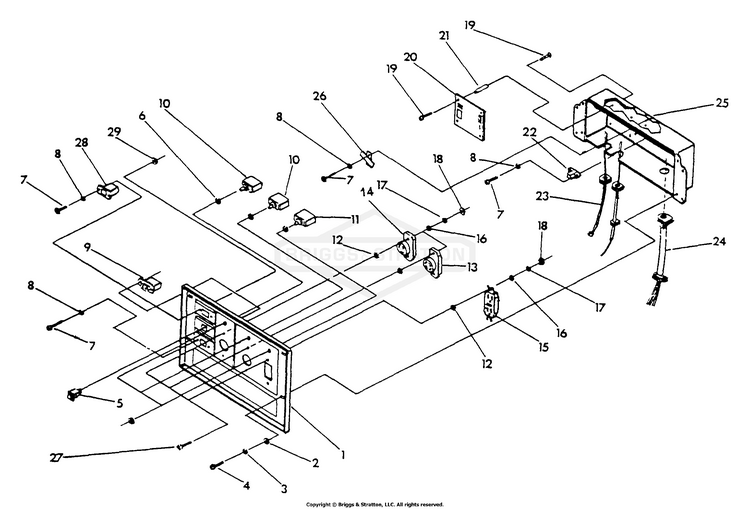

Control Panel

...
...
1
Control Panel BS-92570
...
2
WASHER, Rivet, 3/16 BS-1910531SM
...
3
WASHER, M5 Lock BS-49226GS
...
4
M5-0.8 x 12mm Screw BS-91526
...
5
SWITCH, ROCKER, ON/OFF BS-87968GS
...
6
WASHER, 7/16" Int Lock BS-82881GS
...
7
SCREW, M3-0.5 x 10mm BS-43181GS
...
8
WASHER, M3 Lock BS-43182GS
...
9
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.) BS-66822GS
...
10
BREAKER-CIRCUIT 30A BS-706178
...
11
BREAKER-CIRCUIT 20A BS-209872GS
...
12
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
13
OUTLET-120V TL30A BS-705932
...
14
120V/240V, 30A Locking Type Outlet BS-43437
...
15
RECEPTACLE, Dplx GFCI 20A BS-80409GS
...
16
M4 Flat Washer BS-43108
...
17
#8 (M4) Lock Washer BS-22264
...
18
NUT, M4-0.7 Hex BS-51715GS
...
19
#6-32 x 3/8" Screw BS-64526
...
20
BOARD, System Control BS-83970GS
...
21
3/4" Hex Stand-Off BS-64525
...
22
12V, 10A Cir. Breaker (Auto) BS-87692
...
23
ASSEMBLY, Wire Harness BS-84335GS
...
24
GROMMET, Rubber Connector BS-84134GS
...
25
Control Box Panel BS-92069
...
26
TRANSFORMER, Idle Control BS-84028GS
...
27
M4-0.7 x 10mm Screw BS-75475
...
28
HOUR METER BS-77604GS
...
29
NUT, M3 - 0.5 BS-51714GS

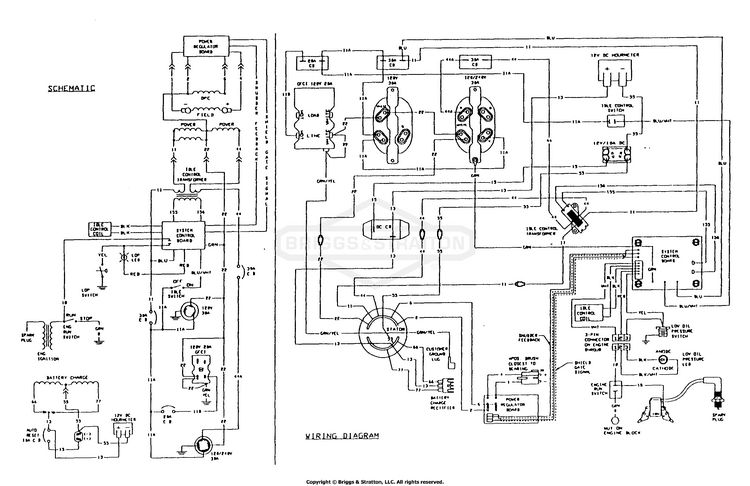

Electrical Data

...

No Parts Available for this Schematic

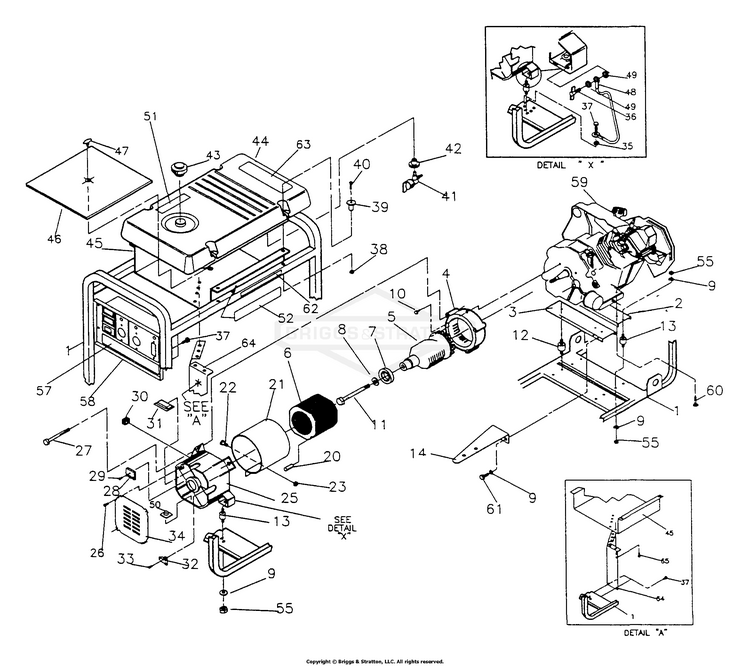

Generator

...
...
1
Cradle BS-92432
...
2
Engine Support BS-92531
...
3
SUPPORT, Eng/Muffler BS-N92731GS
...
4
HOUSING, ENGINE ADAPTER BS-92247GS
...
5
ASSY, Rotor BS-92679GGS
...
6
ASSEMBLY, Stator BS-92681AGS
...
7
BEARING BS-65791GS
...
8
M8 Flat Washer BS-67451
...
9
WASHER, Lock BS-22129GS
...
10
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
11
NUT BS-5025254FS
...
12
MOUNTS,Vibration BS-92609GS
...
13
MOUNT, VIBRATION BS-82857GS
...
20
PIN, ROLL 4MM x 10 BS-81917GS
...
21
WRAP, ALT, 131 X 623LG BS-81887GGS
...
22
SCREW, M5 x 0.8 x 12 BS-52618GS
...
23
NUT, LOCKING-M5 BS-52856GS
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
27
BOLT BS-86308BGS
...
28
RECTIFIER, BATTERY CHARGE BS-65795GS
...
29
SCREW BS-66849AGS
...
30
GROMMET, RUBBER BS-67022GS
...
31
ASSEMBLY, POWER REGULATOR BS-84132GS
...
32
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
33
HHCS, M5-0.8 X 16 BS-49815GS
...
34
Bearing Carrier Cover BS-67025
...
35
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
36
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
37
SCREW BS-313085GS
...
38
NUT, FLANGE LOCK - M6 BS-77395GS
...
39
GROMMET, TANK BS-83465GS
...
40
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
41
Kit, Valve BS-192980GS
...
42
Kit, Valve BS-192980GS
...
43
SCREW BS-691677
...
44
ASSY,Tank, Fuel BS-193500GS
...
45
Heat Shield BS-92039
...
46
INSULATION, # 2-1/4" THICK BS-92665GS
...
47
CLIP, INSULATION BS-85000GS
...
48
WIRE, Ground BS-195373GS
...
50
MOUNT, CABLE TIE BS-57593GS
...
51
DECAL, Danger BS-194799GS
...
52
Heat Shield Decal BS-B1223
...
55
NUT, 5/16-18 HEX BS-25244GS
...
57
Control Panel Decal BS-B1224
...
58
ASSY, Control Box BS-92631GS
...
59
13 Hp Engine BS-ENGA1394
...
60
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
61
MODULE BS-84009650
...
62
Decal, Cradle BS-93221
...
63
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
64
Heat Shield BS-96068
...
65
CRIMPTITE, 10-24 x 1/2 BS-56893GS

Wheel Kit And Lift Kit

...
...
1
Handle BS-93393A
...
2
Wheel BS-93682
...
3
Axle BS-93936A
...
4
PIN, Quick Release BS-87005GS
...
5
Wheel Spacer BS-93685
...
6
Support Leg BS-93696
...
7
VIBE MOUNT, with Washer BS-191413GS
...
8
SCREW BS-42909GS
...
9
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
10
WASHER, 5/8" SAE BS-5025281SM
...
11
CAPSCREW M8-1.25X16 BS-703988
...
13
HHCS, M8-1.25 X 45 GR10.9 BS-B1214GS
...
14
WLDMNT, LIFTING KIT BS-B1212GS
