09P702-0173-H1 Briggs and Stratton Engine

Model: 09P702-0173-H1

Back To Assemblies

Save Part Not Listed?
product name

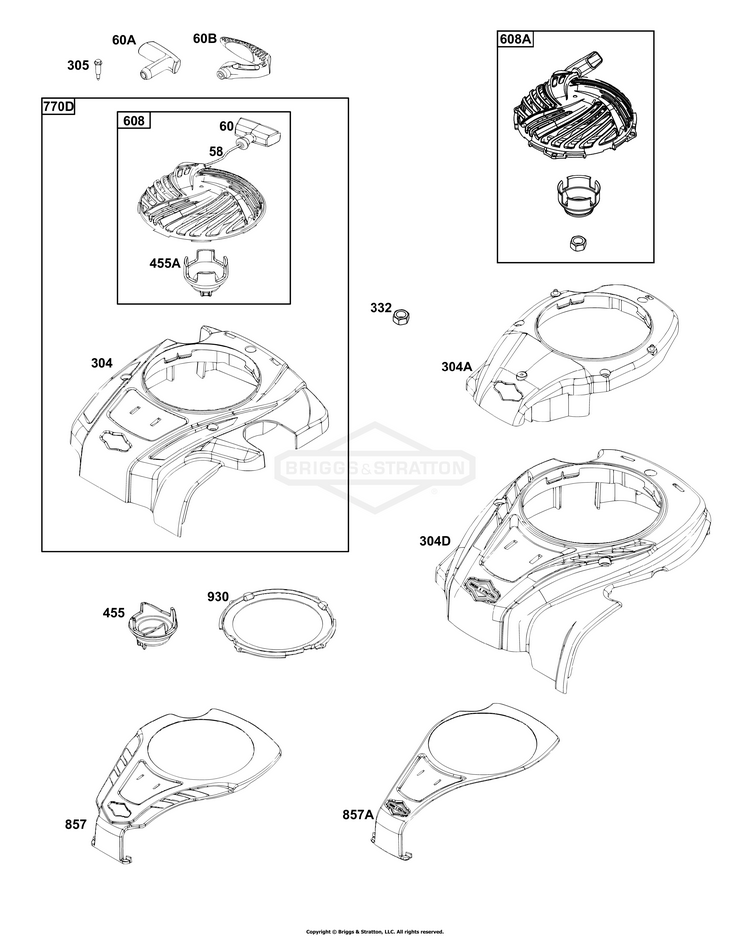

Blower Housing, Rewind Starter

...
...
58
ROPE, Starter BS-591108
...
60
GRIP, Starter Rope BS-691915
...
60A
GRIP, Starter Rope BS-281434S
...
60B
GRIP, Starter Rope BS-799716
...
304
HOUSING, Blower BS-593961
...
304A
HOUSING, Blower BS-593962
...
304D
HOUSING, Blower BS-596457
...
305
SCREW (Blower Housing) BS-590586
...
332
NUT (Flywheel) BS-690662
...
455
CUP, Flywheel (No Longer Available) BS-590545
...
455A
CUP, Flywheel (To Be Used With Reference 608) BS-84013130
...
608
STARTER, REWIND (No Longer Available) (See Reference 608A for Service) (Replace as a Kit) BS-84010941
...
608A
STARTER, Rewind BS-84013626
...
770D
KIT, Rewind/Blower Housing BS-595355
...
857
TRIM, Blower Housing Cover BS-591113
...
857A
TRIM, Blower Housing Cover BS-591114
...
930
GUARD, Rewind Used Before Code Date 15041300 BS-590585
