093212-0109-01 Briggs and Stratton Engine

Model: 093212-0109-01

Back To Assemblies

Save Part Not Listed?
product name

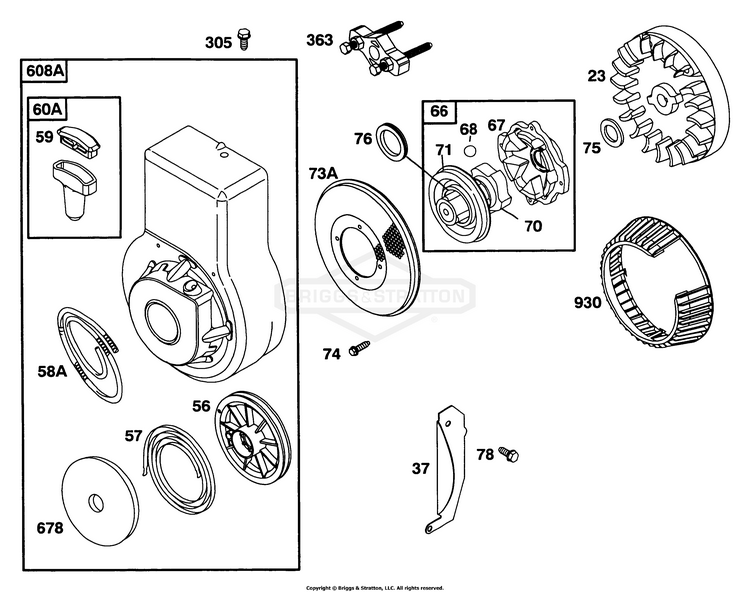

Blower Hsg, Rewind, Flywheel

...
...
23
FLYWHEEL BS-795695
...
37
GUARD, Flywheel BS-690463
...
56
PULLEY, Rope Starter BS-281336S
...
57
SPRING-REWIND STR BS-490179
...
58A
ROPE, Starter (Cut To Required Length) BS-280406S
...
59
INSERT-GRIP BS-396892
...
60A
GRIP-STARTER ROPE BS-393152
...
66
CLUTCH-STARTER BS-399671
...
67
HOUSING, Clutch BS-394897
...
68
BALL, Clutch BS-691604
...
70
RATCHET-CLUTCH BS-691945
...
71
COVER, Ratchet BS-691359
...
73A
SCREEN, Rotating BS-691725
...
74
SCREW (Interlock Switch) BS-690345
...
75
WASHER (Flywheel) BS-691736
...
76
COVER, Ratchet BS-691359
...
78
SCREW BS-690364
...
305
SCREW (Rocker Cover) (7/16) BS-692198
...
363
PULLER, Flywheel BS-19069
...
608A
STARTER, Rewind (10 O'clock) BS-690098
...
678
SPACER-REWIND (Rewind) BS-490817
...
930
GUARD, Rewind BS-691330
