091412-0120-E1 Briggs and Stratton Engine

Model: 091412-0120-E1

Save Part Not Listed?
product name

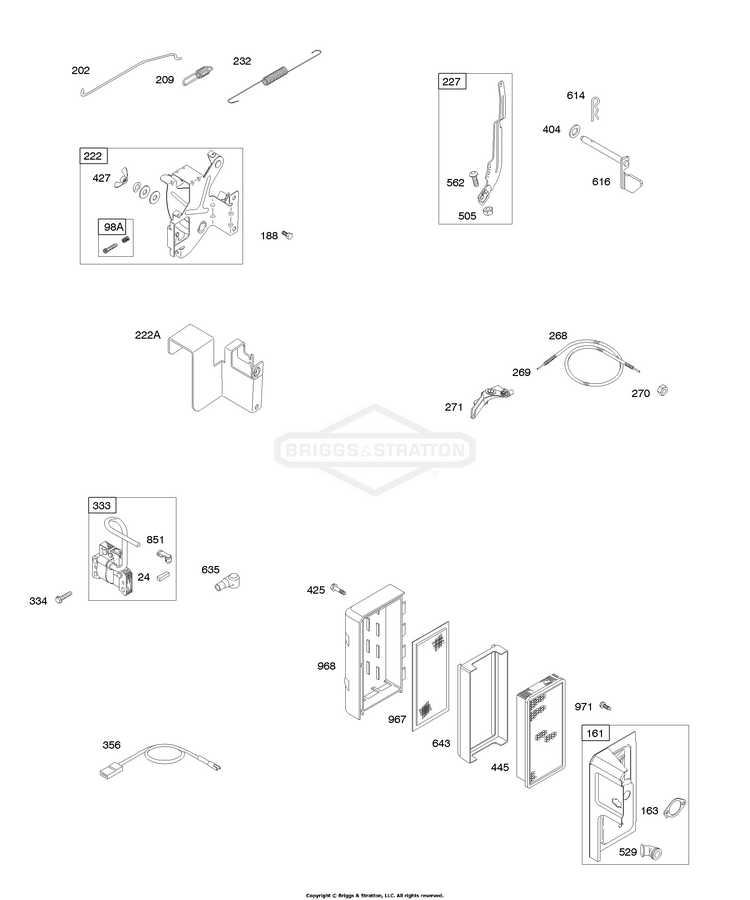

Air Cleaner, Controls, Governor Spring, Ignition

...
...
24
KEY, Flywheel BS-222698S
...
98A
KIT-IDLE SPEED (Control Bracket) BS-493280
...
161
BASE, Air Cleaner (Metal) BS-691393
...
163
GASKET, Air Cleaner (Air Cleaner) BS-272948S
...
188
SCREW (Control Bracket) BS-691637
...
202
LINK, Mechanical Governor BS-692351
...
209
SPRING, Governor (Yellow) BS-691858
...
222
BRACKET, Control BS-691411
...
227
LEVER, Governor Control BS-691412
...
232
SPRING/LINK, Governor BS-691846
...
268
CASING, Control Wire (Cut To Required Length) BS-691025
...
269
WIRE, Control (Cut To Required Length) BS-26634
...
270
NUT (Control Wire Casing) BS-691027
...
271
LEVER, Control BS-691028
...
333
ARMATURE, Magneto BS-591420
...
334
SCREW (Magneto Armature) BS-691061
...
356
WIRE, Stop BS-696030
...
404
WASHER (Governor Crank) BS-691691
...
425
SCREW (Air Cleaner Cover) BS-690670
...
427
NUT (Control Bracket) BS-690355
...
445
FILTER, A/C Cartridge BS-494511S
...
505
NUT (Governor Control Lever) BS-691251
...
529
GROMMET (45 Degree) BS-692187
...
562
BOLT (Governor Lever) BS-92613
...
614
PIN, Cotter BS-691620
...
616
CRANK-GOVERNOR BS-692016
...
635
BOOT, Spark PLug BS-66538S
...
643
RETAINER, Air Filter BS-691908
...
851
TERMINAL, Spark Plug BS-493880S
...
967
FILTER, Pre Cleaner BS-492889
...
968
COVER, Air Cleaner BS-691327
...
971
SCREW (Air Cleaner Base) (Remote Choke) BS-690370

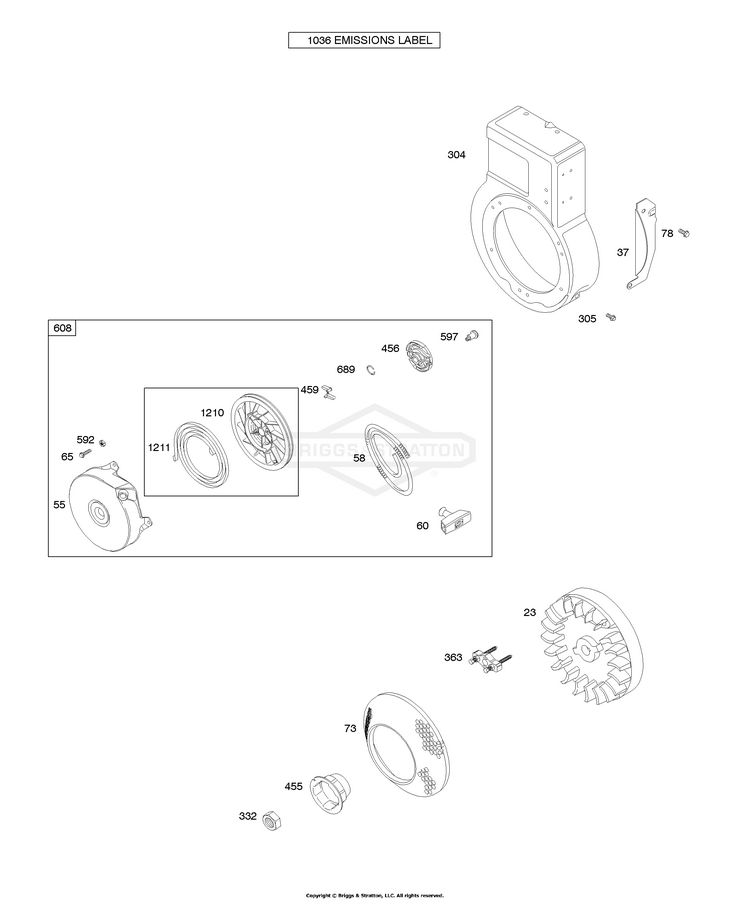

Blower Housing/Shrouds, Flywheel, Rewind Starter

...
...
23
FLYWHEEL BS-799682
...
37
GUARD, Flywheel BS-690463
...
55
HOUSING, Rewind Starter BS-692144
...
58
ROPE, Starter (70 Rope) BS-691921
...
60
GRIP, Starter Rope BS-691915
...
65
SCREW (Rewind Starter) BS-690837
...
73
SCREEN, Rotating BS-699850
...
78
SCREW (Flywheel Guard) BS-690364
...
304
HOUSING-BLOWER BS-694144
...
305
SCREW (Blower Housing) BS-692198
...
332
NUT (Flywheel) BS-690662
...
363
PULLER, Flywheel BS-19069
...
455
CUP, Flywheel BS-691236
...
456
PLATE-PAWL FRICTION BS-692299
...
459
PAWL-RATCHET BS-281505S
...
592
NUT (Rewind Starter) BS-690800
...
597
SCREW (Pawl Friction Plate) BS-691696
...
608
STARTER, Rewind BS-499706
...
689
SPRING-FRICTION BS-691855
...
1210
PULLEY/SPRING ASSY (Pulley) BS-499901
...
1211
PULLEY/SPRING ASSY (Spring) BS-499901

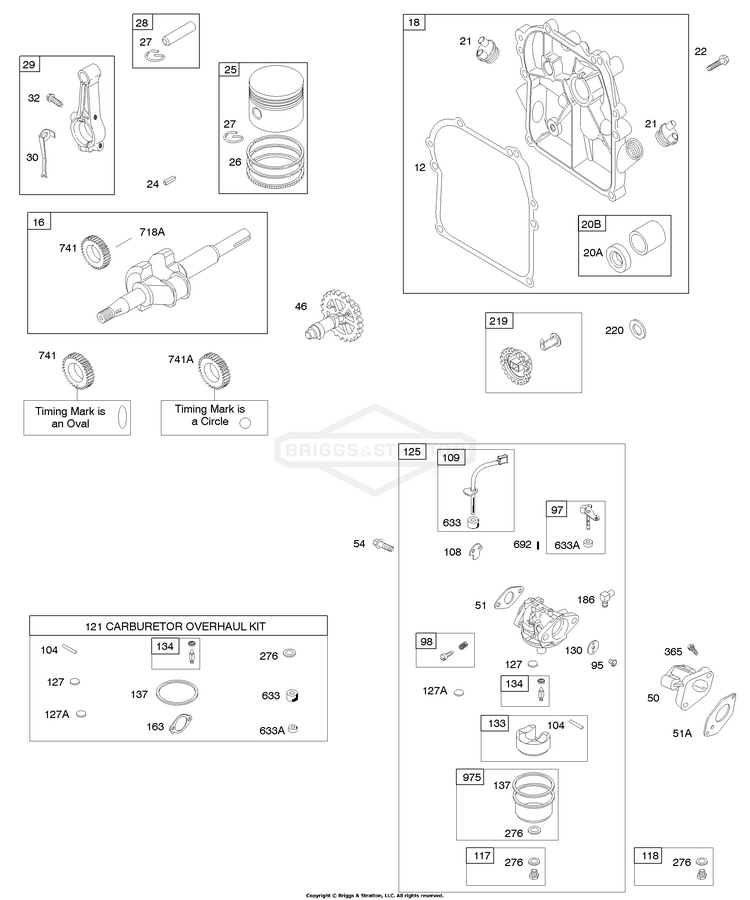

Camshaft, Carburetor, Carburetor Overhaul Kit, Crankcase Cover/Sump, Crankshaft, Piston/Rings/Connecting Rod

...
...
12
GASKET, Crankcase (.015)(Standard) BS-692218
...
12
GASKET, Crankcase (.009) BS-270896
...
12
GASKET, Crankcase (.005) BS-270895
...
16
CRANKSHAFT BS-793155
...
18
COVER, Crankcase (Plain Bearing) BS-699096
...
20A
SEAL, Oil (PTO Side) BS-299819S
...
20B
SEAL, Oil (PTO Side) BS-691356
...
21
CAP, Oil Fill BS-281658S
...
22
SCREW (Crankcase Cover/Sump) (Used In Positions 1 and 6) BS-693732
...
22
SCREW (Crankcase Cover/Sump) (1 1/4" Long) BS-691129
...
24
KEY, Flywheel BS-222698S
...
25
PISTON ASSEMBLY (.020 Oversize) Used After Code Date 07072900 BS-795689
...
25
PISTON ASSEMBLY (Standard) Used After Code Date 08021200 BS-795691
...
25
PISTON ASSEMBLY (Standard) Used Before Code Date 07073000 BS-795691
...
25
PISTON ASSEMBLY (.020 Oversize) Used After Code Date 96012800 Used Before Code Date 07073000 BS-795689
...
25
PISTON ASSEMBLY (Standard) Used After Code Date 07072900 Used Before Code Date 08021300 BS-795691
...
26
SET, Ring (.020 Oversize) Used After Code Date 05051800 Used Before Code Date 08021300 BS-795688
...
26
SET, Ring (.020 Oversize) Used After Code Date 08021200 BS-795688
...
26
SET, Ring (Standard) Used After Code Date 08021200 BS-795690
...
26
SET, Ring (Standard) Used Before Code Date 05051900 BS-695169
...
26
SET, Ring (.020 Oversize) Used Before Code Date 05051900 BS-695172
...
26
SET, Ring (Standard) Used After Code Date 05051800 Used Before Code Date 07073000 BS-795690
...
26
SET, Ring (Standard) Used After Code Date 07072900 Used Before Code Date 08021300 BS-795690
...
27
LOCK, Piston Pin BS-691588
...
28
PIN, Piston (.005 Oversize) Used Before Code Date 05051900 BS-298908
...
28
PIN. Piston (Standard) Used Before Code Date 05051900 BS-298909
...
28
PIN, Piston (Standard) Used After Code Date 05051800 BS-699659
...
29
ROD, Connecting (Standard) BS-699655
...
30
DIPPER, Connecting Rod BS-691719
...
32
SCREW (Connecting Rod) BS-691664
...
46
CAMSHAFT BS-691998
...
50
MANIFOLD, Intake BS-691922
...
51
GASKET, Intake BS-692283
...
51A
GASKET, Intake BS-273113S
...
54
SCREW (Intake Manifold) BS-691689
...
95
SCREW (Throttle Valve) BS-691636
...
97
SHAFT, Throttle BS-496861
...
98
KIT-IDLE SPEED (Carburetor) BS-398185
...
104
PIN, Float Hinge BS-797622
...
108
VALVE-CHOKE BS-692567
...
109
SHAFT, Choke BS-496860
...
117
JET, Main (Standard) BS-498981
...
118
JET, Main (High Altitude) BS-494870
...
121
KIT, Carburetor Overhaul BS-695157
...
125
CARBURETOR BS-496863
...
127
PLUG-WELCH (5/16 Diameter) BS-691739
...
127A
PLUG, Welch (3/8 Diameter) BS-694468
...
130
VALVE-THROTTLE BS-691181
...
133
FLOAT-CARBURETOR BS-398187
...
134
KIT-NEEDLE/SEAT BS-398188
...
137
GASKET-FLOAT BOWL BS-693981
...
163
GASKET, Air Cleaner (Air Cleaner) BS-272948S
...
186
CONNECTOR-HOSE BS-692317
...
219
GEAR-GOVERNOR BS-496786
...
220
WASHER (Governor Gear) BS-691724
...
276
WASHER-SEALING BS-271716
...
365
SCREW (Carburetor) BS-691688
...
633
SEAL, Choke/Throttle Shaft (Choke) BS-693867
...
633A
SEAL, Choke/Throttle Shaft (Throttle) BS-691321
...
692
SPRING, Detent BS-590931
...
718A
PIN, Locating (Crankshaft) BS-499047
...
741
GEAR, Timing [Timing Mark is an Oval {()}] Used After Code Date 05013000 BS-791124
...
741A
GEAR, Timing {Timing Mark is a Circle (O)} Used Before Code Date 05013100 BS-691805
...
975
BOWL, Float BS-796611

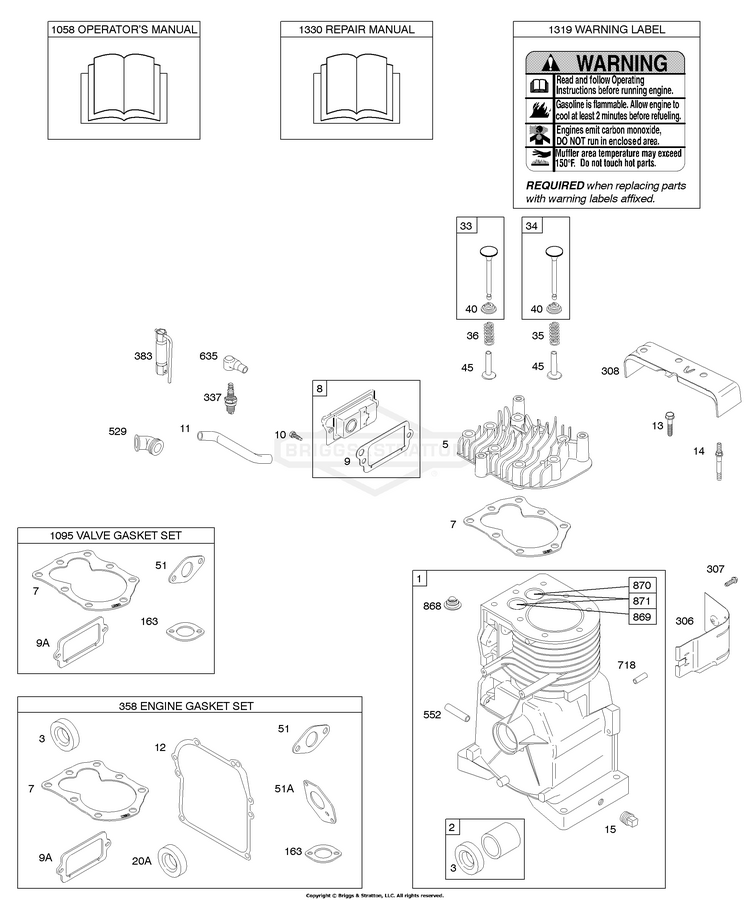

Cylinder, Cylinder Head, Gasket Set - Engine, Gasket Set - Valve, Operator's Manual, Warning Label

...
...
1
CYLINDER ASSEMBLY BS-791357
...
2
KIT, Bushing/Seal (Magneto Side) BS-796961
...
3
SEAL, Oil (Magneto Side) BS-299819S
...
5
HEAD, Cylinder BS-790169
...
7
GASKET-CYL HD BS-698717
...
8
BREATHER ASSEMBLY Used After Code Date 05102400 BS-791779
...
8
BREATHER ASSEMBLY Used Before Code Date 05102500 BS-791779
...
9
GASKET-BREATHER Used After Code Date 03031900 BS-695890
...
9A
GASKET, Breather Used Before Code Date 03032000 BS-27549S
...
10
SCREW (Breather Assembly) BS-691666
...
11
TUBE, Breather BS-691246
...
12
GASKET, Crankcase (.009) BS-270896
...
12
GASKET, Crankcase (.005) BS-270895
...
12
GASKET, Crankcase (.015)(Standard) BS-692218
...
13
SCREW (Cylinder Head) BS-691640
...
14
SCREW (Cylinder Head) (Used In Positions 4, 6 And 8) BS-690361
...
15
PLUG-OIL DRAIN BS-691686
...
20A
SEAL, Oil (PTO Side) BS-299819S
...
33
VALVE, Exhaust BS-497871
...
34
VALVE, Intake (Grooved stem-includes Retainer) BS-296677
...
35
SPRING-VALVE (Intake) BS-690520
...
36
SPRING-VALVE (Exhaust) BS-690520
...
40
RETAINER, Valve BS-692194
...
45
TAPPET, Valve BS-691762
...
51
GASKET, Intake BS-692283
...
51A
GASKET, Intake BS-273113S
...
163
GASKET, Air Cleaner (Air Cleaner) BS-272948S
...
306
SHIELD, Cylinder BS-690461
...
307
SCREW (Cylinder Shield) BS-691660
...
308
COVER, Cylinder Head BS-690462
...
337
PLUG, Spark (Resistor) BS-796112S
...
358
GASKET SET, Engine BS-795971
...
383
WRENCH, Spark Plug BS-89838S
...
529
GROMMET (45 Degree) BS-692187
...
552
BUSHING, Governor Crank BS-690508
...
635
BOOT, Spark PLug BS-66538S
...
718
PIN, Locating (Cylinder) BS-690959
...
868
SEAL, Valve BS-697338
...
869
SEAT-VALVE (Intake) BS-691701
...
870
SEAT, Valve (Exhaust) BS-691702
...
871
BUSHING-VALVE GUIDE (Exhaust) BS-262001
...
1058
MANUAL, Operator's BS-277098
...
1095
GASKET SET-VALVE BS-795972
...
1319
LABEL, Warning BS-794467
...
1330
REP MAN-1 CYL L-HD BS-270962

Replacement Engine - US & Canada

...
...
xx
Replacement Engine BS-934121236
