082331-0147-01 Briggs and Stratton Engine

Model: 082331-0147-01

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

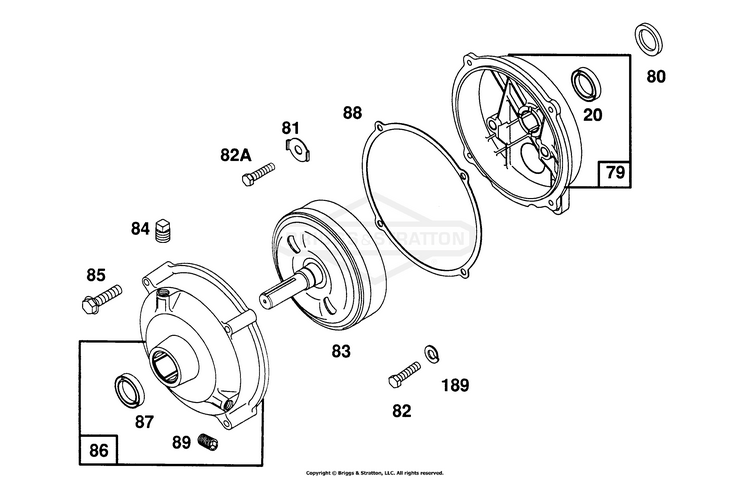

Gear Case Assembly

...
...
20
SEAL, Oil (Plain Bearing) Included in Gasket Set-Part No. 495602 BS-299819S
...
20
SEAL-OIL Used Before Code Date 93071800 BS-393812
...
20
SEAL, Oil (Ball Bearing) Used After Code Date 93071900 BS-692020
...
79
CASE, Gear Reduction BS-690605
...
80
GASKET, Gear Case Included in Gasket Set-Part No. 495602 BS-691602
...
81
LOCK, Screw Head BS-691168
...
82A
SCREW (5/16-24 X 1/2) BS-699164
...
82
SCREW (5/16-24 X 7/8) BS-690369
...
83
SHAFT, Auxiliary Drive BS-690374
...
84
PLUG-BREATHER (Gear Case) BS-691121
...
85
SCREW (Used on Two Top Holes to Mount Cover) BS-691117
...
86
COVER, Gear BS-690608
...
87
SEAL, Gear Reduction Included in Gasket Set-Part No. 495602 BS-691582
...
88
GASKET, Gear Cover/Housing Included in Gasket Set-Part No. 495602 BS-691600
...
89
PLUG-OIL DRAIN (Flush) (1/4-18 NPTF) (Flush) (1/4 18 NPTF) BS-691682
...
189
WASHER, 5/16" LOCK BS-5025170SM
