082252-0302-01 Briggs and Stratton Engine

Model: 082252-0302-01

Back To Assemblies


product name

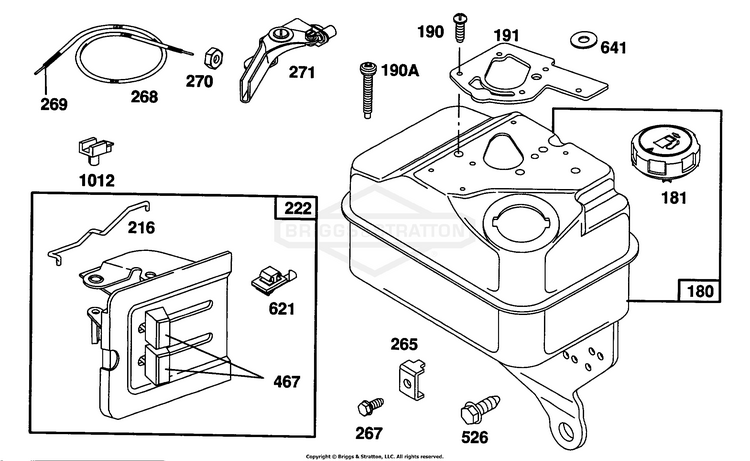

Fuel Tank (2) Quart

...
...
180
TANK, Fuel (3 Quart Tank) (Air Vane) BS-495391

...
181
CAP, Fuel Tank (Plastic) BS-494559

...
190A

...
190

...
191
GASKET, Fuel Tank Used Before Code Date 92060800 BS-272996

...
191
GASKET, Fuel Tank Used After Code Date 92060700 BS-692241

...
216
LINK, Choke Used Before Code Date 87030200 BS-262274

...
216
LINK, Choke Used After Code Date 87030100 BS-691824

...
222
BRACKET, Control BS-490649

...
265
CLAMP-CASING BS-690393

...
267
SCREW (10-32 X 5/8) BS-690804

...
268
CASING, Control Wire (Cut To Required Length) BS-691025

...
269
WIRE, Control (Cut To Required Length) If Longer Wire is Needed, Specify Length in Inches; If Shorter Wire is Needed, Order and Cut to Required Length BS-26634

...
270
NUT (Control Wire Casing) BS-691027

...
271
LEVER, Control BS-691028

...
467
KNOB, Air Cleaner Cover BS-692295

...
526
SCREW (Control Panel) BS-690297

...
621
SWITCH, Stop BS-692310

...
641
WASHER BS-690390

...
1012
RETAINER, Link BS-490507
Schematic Image Zoomed
