product name

081232-9231-99 Briggs and Stratton Engine

Model: 081232-9231-99

Save Part Not Listed?
product name

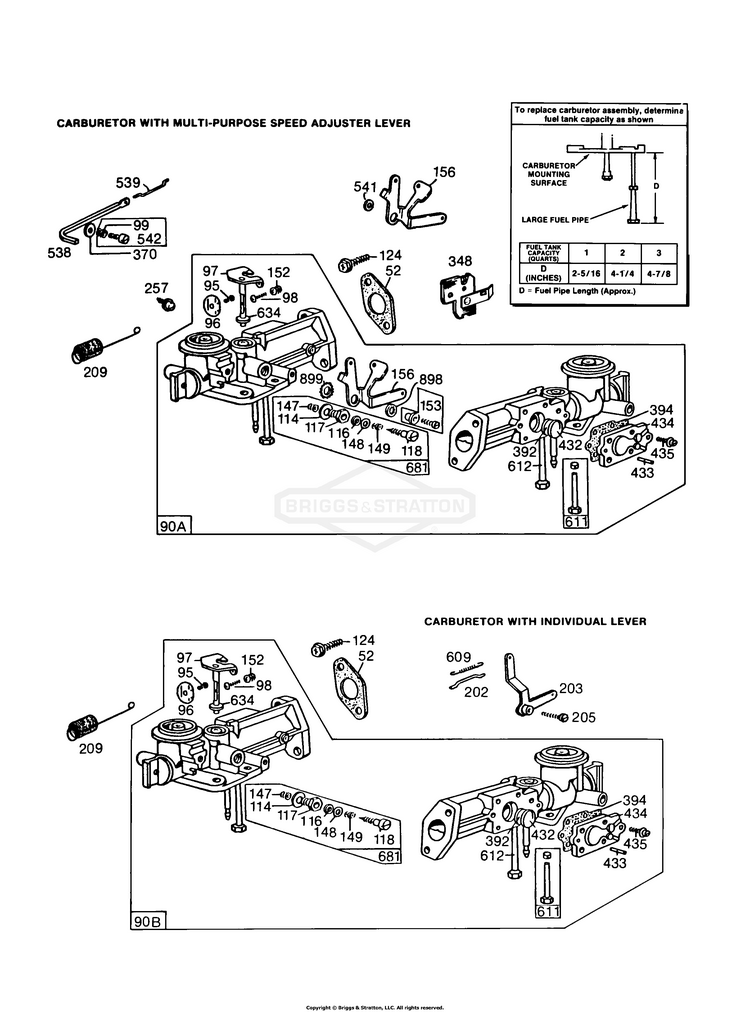

(2) Carburetor Assemblies

...
...
52
GASKET, Intake (2) Included in Gasket Set-See Ref. 358 BS-27355S
...
90A
CARBURETOR (Manual Friction) (3 Quart Tank) BS-393977
...
90B
CARBURETOR (Mechanical Governor) (Manual Choke) (2 Quart Tank) BS-297153
...
90A
CARBURETOR (Manual Choke) (2 Quart Tank) All Carburetors Listed under Ref. 90A use 222955 Ref. 156 Lever. BS-393976
...
95
SCREW (Throttle Valve) BS-691437
...
96
VALVE, THROTTLE BS-211203
...
97
SHAFT, Throttle BS-297961
...
98
SCREW (5-40 X 1/2) BS-93524
...
99
KIT, Spring/Screw BS-490956
...
114
WASHER-SEALING (Needle Valve) BS-691608
...
116
SEAL-O RING (Needle Valve) BS-691606
...
117
NUT-NEEDLE VALVE BS-690504
...
118
VALVE-IDLE MIXTURE BS-690266
...
124
SCREW BS-690953
...
147
SEAT-NEEDLE VALVE BS-692134
...
148
WASHER BS-690257
...
149
SPRING-NEEDLE VALVE BS-691592
...
152
SPRING-FRICTION BS-691783
...
153
SCREW (Carburetor Lever) BS-298031
...
156
LEVER, Control BS-222955
...
205
SCREW (Bell Crank) BS-230671
...
209
SPRING, Governor BS-692205
...
257
SCREW (10-32 X 3/8) BS-691082
...
348
SWITCH, Stop BS-691941
...
370
WASHER BS-691607
...
392
SPRING-PUMP DIAPH BS-692206
...
394
DIAPHRAGM, Carburetor BS-270026
...
432
CAP-SPRING BS-690766
...
433
PIN-LOCATING BS-690296
...
434
COVER-DIAPHRAGM BS-691713
...
435
SCREW (Diaphragm Cover) BS-691619
...
538
ROD, Control (Square Rod) BS-691787
...
539
LINK, Throttle (Square Rod) BS-691788
...
541
SPRING, COMPRESSION BS-84010259
...
542
KIT, Spring/Screw BS-490956
...
609
SPRING, Throttle Return BS-260564
...
611
TUBE-PICK UP (2 And 3 Quart Tanks) BS-391813
...
612
TUBE-PICK UP BS-497413S
...
634
SEAL, Choke/Throttle Shaft (Felt) BS-270167
...
634
SEAL-THROTTLE SHAFT (Foam) BS-692279
...
681
VALVE, High Speed (Threaded) BS-299060
...
898
WASHER BS-690288
...
899
WASHER BS-690299

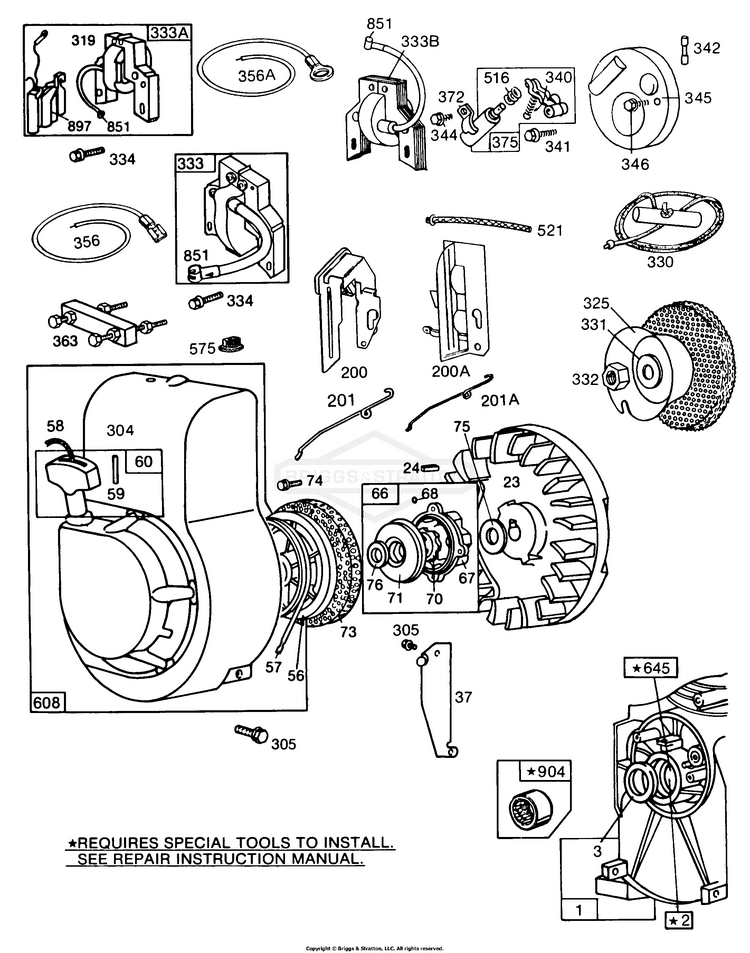

Blower Hsg,Rewind,Electrical

...
...
1
CYLINDER ASSEMBLY Used Before Code Date 81080100 BS-395262
...
1
CYLINDER ASSEMBLY BS-395262
...
2
KIT, Bushing/Seal BS-796961
...
3
SEAL, Oil (Plain Bearing) BS-299819S
...
23
FLYWHEEL BS-296884
...
24
KEY, Flywheel BS-222698S
...
24
KEY, Flywheel (Breaker Ignition) BS-222698S
...
37
GUARD, Flywheel BS-220971
...
56
PULLEY, Rope Starter BS-280439S
...
57
SPRING-REWIND STR BS-490179
...
58
ROPE, Starter (47-1/8) BS-66734
...
59
PIN, Starter Grip BS-230228S
...
60
GRIP-STARTER ROPE BS-393152
...
66
CLUTCH-STARTER (Rewind Starter) BS-399671
...
67
HOUSING, Clutch BS-394897
...
68
BALL, Clutch BS-691604
...
70
RATCHET-CLUTCH BS-691945
...
71
COVER, Ratchet BS-691359
...
73
SCREEN, Rotating (Rewind Starter) BS-691725
...
74
SCREW (Rotating Screen) BS-691660
...
75
WASHER (Heavy Flywheel) BS-690582
...
76
COVER, Ratchet BS-691359
...
200A
BLADE, Governor BS-498770
...
200
BLADE, Governor BS-498770
...
201A
LINK, Air Vane All Links Listed under Ref. 201A are Used with Ref. 200A Governor Blade BS-261663
...
201
LINK, Choke Used with Ref. 200 Governor Blade. BS-262041
...
305
SCREW (1/4-20 X 5/8) BS-692198
...
319
ARMATURE, Magneto (Less Trigger Coil) BS-591420
...
325
PULLEY, Rope Starter (5/8 Hole) BS-298731
...
330
KIT, Handle/Rope (47-1/8) BS-69932S
...
331
WASHER (Heavy Flywheel) BS-690582
...
332
NUT (Flywheel) BS-690662
...
333A
ARMATURE, Magneto (Magnetron Ignition) BS-591420
...
333B
ARMATURE, Magneto (Points And Condenser) BS-591420
...
333
ARMATURE, Magneto BS-591420
...
334
SCREW BS-691061
...
340
SPRING, Breaker Arm BS-26018
...
341
SCREW BS-691061
...
342
PLUNGER-BRKR BS-65704S
...
344
SCREW BS-691078
...
345
COVER, Breaker BS-220366
...
346
SCREW (8-32 X 3/8) BS-690661
...
356A
WIRE, Stop (Used with Armatures Ref. 333A and 333B Only) BS-398808
...
356
WIRE, Stop BS-491391
...
363
PULLER, Flywheel BS-19069
...
372
CLAMP BS-220477
...
375
BREAKER, Ignition BS-294628
...
375
BREAKER, Ignition Includes: 294628 Point Set 65704 Plunger 61760 Key-Flywheel (Conversion to Electronic Ignition Order No. 394970 Electronic Module Kit) BS-294628
...
516
SPRING, Condensor BS-260374
...
521
SHIELD, Protective BS-297973
...
575
SWITCH, Rotary (Mechanical Governor) BS-692309
...
608
STARTER, Rewind (12 O'clock) BS-398035
...
645
BUSHING, Plunger (Used only with Breaker Point Ignition) BS-23513
...
851
TERMINAL, Spark Plug BS-493880S
...
897
KIT, Magnetron Ignition BS-394970
...
904
BEARING, Needle BS-394236

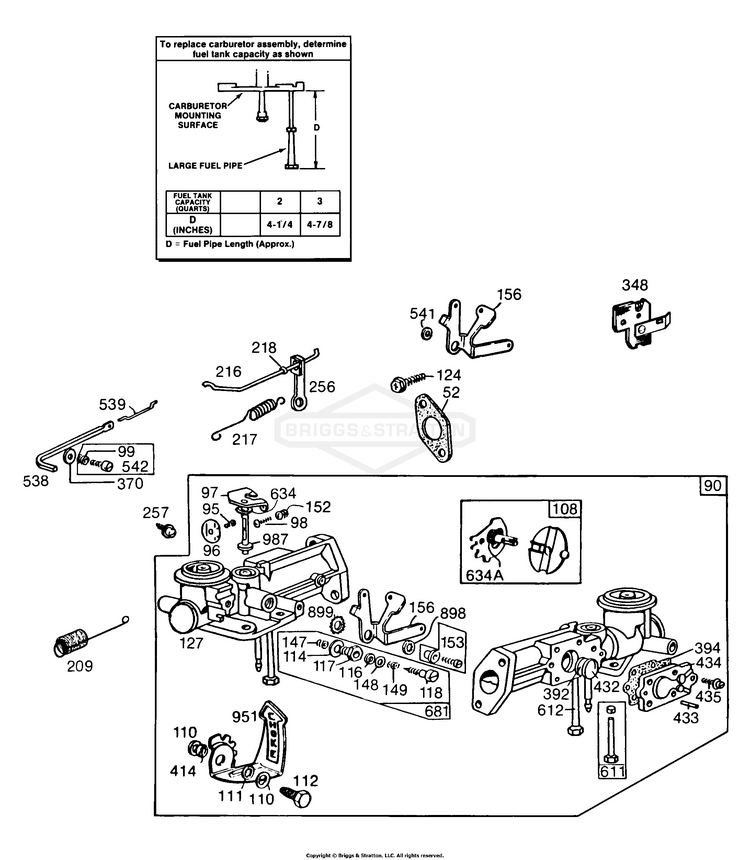

Carburetor Assembly

...
...
52
GASKET, Intake (2) Included in Gasket Set-See Ref. 358 BS-27355S
...
90
CARBURETOR (Rotary Choke) (2 Quart Tank) All Carburetors Listed Under Ref. 90 use 222955 Ref. 156 Lever BS-397939
...
90
CARBURETOR (3 Quart Tank) BS-398049
...
95
SCREW (Throttle Valve) BS-691437
...
96
VALVE, THROTTLE BS-211203
...
97
SHAFT, Throttle BS-297961
...
98
SCREW (5-40 X 1/2) BS-93524
...
99
KIT, Spring/Screw BS-490956
...
108
KIT, Choke Shaft BS-397134
...
110
WASHER BS-221226
...
111
WASHER BS-691089
...
112
SCREW (10-32 X 5/8) BS-691044
...
114
WASHER-SEALING (Needle Valve) BS-691608
...
116
SEAL-O RING (Needle Valve) BS-691606
...
117
NUT-NEEDLE VALVE BS-690504
...
118
VALVE-IDLE MIXTURE BS-690266
...
124
SCREW BS-690953
...
127
PLUG-WELCH BS-691585
...
147
SEAT-NEEDLE VALVE BS-692134
...
148
WASHER BS-690257
...
149
SPRING-NEEDLE VALVE BS-691592
...
152
SPRING-FRICTION BS-691783
...
153
SCREW (Carburetor Lever) BS-298031
...
156
LEVER, Control BS-222955
...
209
SPRING, Governor BS-692205
...
216
LINK, Choke BS-262020
...
217
SPRING, Choke Return BS-261951
...
218
WASHER BS-691722
...
256
LEVER, Speed Adjuster BS-220952
...
257
SCREW (10-32 X 3/8) BS-691082
...
348
SWITCH, Stop BS-691941
...
370
WASHER BS-691607
...
392
SPRING-PUMP DIAPH BS-692206
...
394
DIAPHRAGM, Carburetor BS-270026
...
414
SPACER (Choke Lever) BS-231325
...
432
CAP-SPRING BS-690766
...
433
PIN-LOCATING BS-690296
...
434
COVER-DIAPHRAGM BS-691713
...
435
SCREW (Diaphragm Cover) BS-691619
...
538
ROD, Control (Square Rod) BS-691787
...
539
LINK, Throttle (Square Rod) BS-691788
...
541
SPRING, COMPRESSION BS-84010259
...
542
KIT, Spring/Screw BS-490956
...
611
TUBE-PICK UP (2 And 3 Quart Tanks) BS-391813
...
612
TUBE-PICK UP BS-497413S
...
634A
SEAL, Choke/Throttle Shaft (Foam) BS-691869
...
634
SEAL, Choke/Throttle Shaft (Felt) BS-270167
...
634
SEAL-THROTTLE SHAFT (Foam) BS-692279
...
681
VALVE, High Speed (Threaded) BS-299060
...
898
WASHER BS-690288
...
899
WASHER BS-690299
...
951
LEVER, Choke BS-691180
...
987
SEAL-THROTTLE SHAFT (Lmt 46, 49, 50, 51, 53, 86) Used After Code Date 85081100 BS-692279

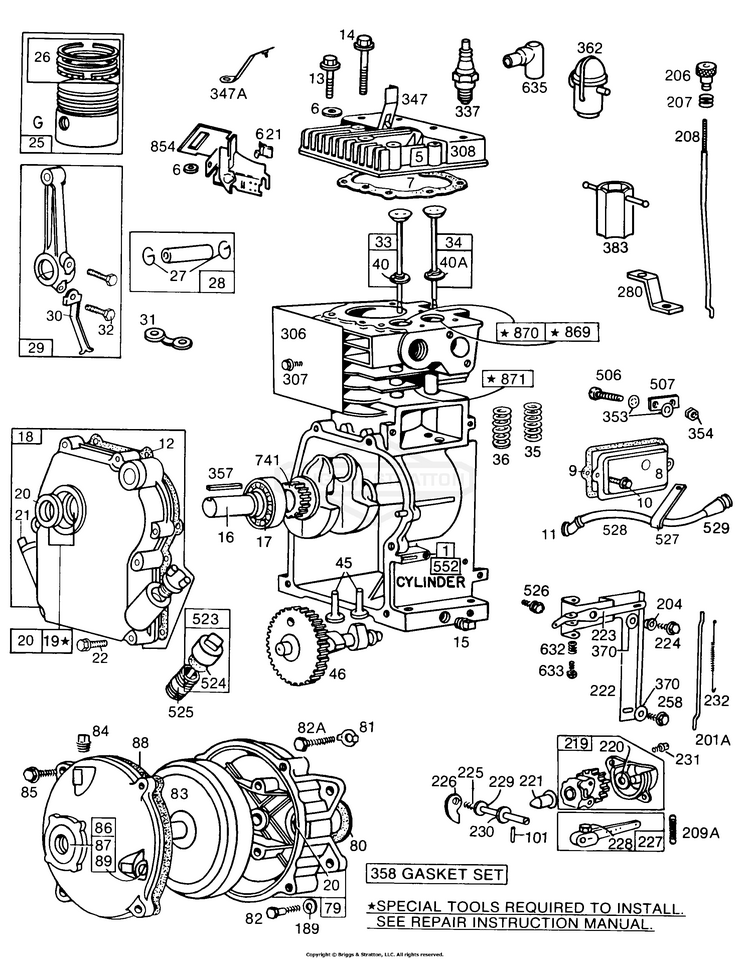

Cylinder,Crankcase,Gear Case

...
...
1
CYLINDER ASSEMBLY Used Before Code Date 81080100 BS-395262
...
1
CYLINDER ASSEMBLY BS-395262
...
5
HEAD, Cylinder BS-213953
...
6
WASHER BS-691261
...
7
GASKET-CYLINDER HEAD Included in Gasket Set-See Ref. 358 BS-272167
...
8
BREATHER ASSEMBLY BS-791779
...
9
GASKET, Breather Included in Gasket Set-See Ref. 358 BS-27549S
...
10
SCREW BS-691666
...
11
GROMMET BS-692187
...
12
GASKET, Crankcase (.015) Included in Gasket Set-See Ref. 358 BS-692218
...
12
GASKET, Crankcase (.005) Included in Gasket Set-See Ref. 358 BS-270895
...
12
GASKET, Crankcase (.009) Included in Gasket Set-See Ref. 358 BS-270896
...
13
WASHER BS-691261
...
14
WASHER BS-691261
...
15
PLUG-OIL DRAIN (1/4 Square) BS-691686
...
16
CRANKSHAFT To Replace Gear Pin, Order Part No. 230978 for Loose Gear Applications. BS-493633
...
17
BEARING-BALL BS-99158
...
18
COVER, Crankcase Used Before Code Date 81120900 BS-392975
...
19
KIT, Bushing/Seal (Plain Bearing) BS-796961
...
20
SEAL-OIL BS-393812
...
21
CAP, Oil Fill BS-281658S
...
22
SCREW (Fuel Tank) (Tank) BS-692551
...
25
PISTON ASSEMBLY (Standard) BS-295455
...
25
PISTON ASSEMBLY (.010 Oversize) BS-295456
...
25
PISTON ASSEMBLY (.020) BS-295457
...
25
PISTON ASSEMBLY (.030 Oversize) BS-295458
...
26
SET, Ring (Standard) BS-294232
...
26
SET, Ring (.010 Oversize) BS-295658
...
26
SET, Ring (.020 Oversize) BS-294225
...
26
SET, Ring (.030 Oversize) BS-294226
...
26
SET, Ring (Standard) BS-297201
...
27
LOCK, Piston Pin BS-691588
...
28
PIN, Piston (.005 Oversize) BS-298908
...
28
PIN. Piston BS-298909
...
29
ROD, Connecting For Connecting Rod with .020 Undersize Crankpin Bore-Order No. 296079 BS-699655
...
30
DIPPER, Connecting Rod BS-691719
...
31
WASHER BS-222282
...
32
SCREW (Connecting Rod) BS-691664
...
33
VALVE, Exhaust (Stellite With Hole In Stem) BS-296676
...
34
VALVE, Intake (Grooved stem-includes Retainer) (Grooved Stem-Includes Retainer No. 93312) BS-296677
...
35
SPRING-VALVE (Exhaust) BS-690520
...
36
SPRING, VALVE (Exhaust) BS-26826
...
40A
RETAINER, Valve (Valves With Groove In Stem) BS-692194
...
40
PIN, Retainer BS-230126
...
40
RETAINER, Valve BS-230127
...
40
RETAINER, Valve (Exhaust) BS-292259
...
45
TAPPET, Valve BS-691762
...
46
CAMSHAFT BS-793149
...
79
CASE, Gear Reduction BS-690605
...
80
GASKET, Gear Case BS-691602
...
81
LOCK, Screw Head BS-691168
...
82A
SCREW (5/16-24 X 1/2) BS-699164
...
82
SCREW (5/16-24 X 7/8) BS-690369
...
83
SHAFT, Auxiliary Drive BS-690374
...
84
PLUG-BREATHER (Gear Case) BS-691121
...
85
SCREW (Used on Two Top Holes to Mount Cover) BS-691117
...
86
COVER, Gear BS-690608
...
87
SEAL, Gear Reduction BS-691582
...
88
GASKET, Gear Cover/Housing BS-691600
...
89
PLUG-OIL DRAIN (Flush) (1/4-18 NPTF) (Flush) (1/4 18 NPTF) BS-691682
...
101
PIN, Shaft BS-691616
...
189
WASHER, 5/16" LOCK BS-5025170SM
...
201A
LINK, Air Vane All Links Listed under Ref. 201A are Used with Ref. 200A Governor Blade BS-261663
...
204
LEVER, Governor Control (With 3/8 Dia. Flange) BS-23688
...
206
NUT, Governor Adjusting (5-44) BS-230149
...
207
SPRING, Friction BS-692522
...
208
ROD, Control Use: 93384 Jam Nut 230944 Control Rod Guide with BS-230680
...
209A
SPRING, Throttle Return (Throttle Return) BS-260546
...
219
GEAR, Governor BS-296688
...
220
WASHER, Thrust (.030 Thick) (.030) BS-221361
...
221
CUP, Governor BS-230177
...
222
BRACKET, Control (Mechanical Governor) BS-220691
...
223
LEVER, Governor Control BS-221389
...
224
SCREW (3/8) BS-691082
...
225
SHAFT, Governor Gear BS-230181
...
226
CRANK, Governor BS-220381
...
227
LEVER, Governor Control BS-296087
...
228
SCREW (Governor Lever) BS-93100
...
229
WASHER BS-690390
...
230
WASHER BS-690264
...
231
SCREW BS-690292
...
232
SPRING/LINK, Governor BS-690545
...
258
SCREW BS-691637
...
280
BRACKET, Rod BS-221384
...
306
SHIELD, Cylinder BS-220478
...
307
SCREW (Rotating Screen) BS-691660
...
308
COVER, Cylinder Head BS-223390
...
337
PLUG, Spark BS-796112S
...
337
PLUG, Spark BS-796112S
...
337
PLUG, Spark BS-796112S
...
347A
SWITCH, Spark Plug Stop BS-298926
...
347
SWITCH, Stop BS-220884
...
353
WASHER BS-691077
...
354
NUT (Ground Terminal) BS-691612
...
357
KEY, Drive Pulley (3/16 Square) BS-692191
...
358
GASKET SET, Engine (Used with Rotary Choke Carburetors) BS-495602
...
358
GASKET SET, Engine (Rotary Choke) BS-495602
...
362
SHIELD, Spark Plug (With Stop Switch) BS-89742
...
370
WASHER BS-691607
...
383
WRENCH, Spark Plug BS-89838S
...
506
SCREW (8-32 X 1/2) BS-90200
...
507
INSULATOR BS-66895
...
523
CAP, Oil Fill BS-69345
...
524
SEAL, O-Ring (Dipstick Cap) BS-690270
...
525
TUBE, Dipstick (2 1/2) Use 394884 Adaptor-Oil Filler with Nipple BS-691257
...
526
SCREW (Control Panel) BS-690297
...
527
CLAMP, Tube (Pull Choke) BS-221279
...
527
CLAMP, Tube (Rotary Choke) BS-221514
...
528
TUBE, Breather (Pull Choke) BS-230634
...
528
TUBE, Breather (Rotary Choke) BS-231383
...
529
GROMMET (Used with Pull Choke Carburetors) BS-67608
...
529
GROMMET (Breather)(Rotary Choke) BS-67638
...
552
BUSHING, Governor Crank (1/4 I.D.) (Not Used with 394199 Cylinder Assembly) BS-690508
...
621
SWITCH, Stop BS-297472S
...
632
SPRING-FRICTION BS-691783
...
633
SCREW BS-93364
...
635
BOOT, Spark PLug BS-66538S
...
741
GEAR, Timing (Plain Bearing 2 Piece Crankshaft) BS-691805
...
741
GEAR, Timing (Ball Bearing) BS-261721
...
854
BRACKET, Stopswitch BS-392884
...
869
SEAT, Valve (Intake) BS-210879
...
870
SEAT, Valve (Exhaust) BS-691702
...
871
BUSHING-VALVE GUIDE (Exhaust) BS-262001
...
871
BUSHING, Valve Guide (Intake) BS-63709

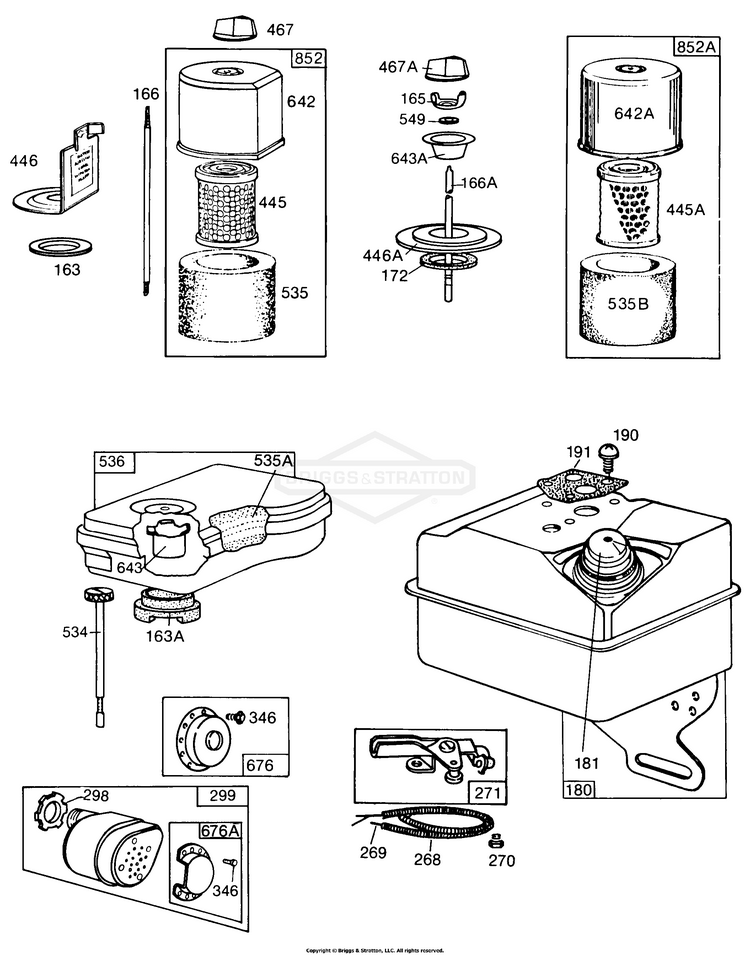

Fuel Tank, Air Cleaners

...
...
163A
GASKET, Air Cleaner BS-27660
...
163
GASKET, Air Cleaner (Above Spacer) BS-271139S
...
165
NUT (10-32) BS-93856
...
166A
STUD (Air Cleaner) (3/16) BS-231176
...
166
STUD (Pull Choke) BS-231398
...
166
STUD (Rotary Choke) BS-231332
...
172
SPACER BS-270055
...
180
TANK, Fuel (2 Quart Tank) (Used with Pull Choke Carburetor) BS-397789
...
180
TANK, Fuel (1 Quart) Uses: 93686 Screw-Bracket to Cylinder Mtg. BS-399439
...
180
TANK, Fuel (3 Quart Tank) Used After Code Date 84022200 BS-397622
...
180
TANK, Fuel (2 Quart Tank) (Used with Rotary Choke Carburetors) BS-397789
...
181
CAP, Fuel Tank (Metal) BS-493982S
...
181
CAP, Fuel Tank (Chrome) BS-493982S
...
190
SCREW BS-692200
...
191
GASKET, Fuel Tank Included in Gasket Set-See Ref. 358 (Used with Rotary Choke Carburetors) BS-272409S
...
191
GASKET, Fuel Tank (Pull Choke) Engines using 3 Quart Tank No. 296592 Require (2) Gaskets. Included in Gasket Set-See Ref. 358 BS-272409S
...
268
CASING, Control Wire (Cut To Required Length) BS-691025
...
269
WIRE, Control (Cut To Required Length) If longer wire is needed, specify length in inches; if shorter wire is needed, order No. 26099 and cut to required length. BS-26634
...
270
NUT (Control Wire Casing) BS-691027
...
271
LEVER, Control BS-691028
...
298
LOCKNUT-MUFF/ELBOW (Muffler and Elbow) BS-691720
...
299
MUFFLER (Lo Tone) BS-493288
...
346
SCREW (8-32 X 3/8) BS-690661
...
445A
FILTER-A/C CARTRIDGE BS-392308S
...
445
FILTER, A/C Cartridge BS-396424S
...
446A
BASE, Air Cleaner BS-691735
...
446
BASE-AIR CLEANER BS-223198
...
467A
KNOB, Choke Shaft BS-212293
...
467
KNOB, Air Cleaner Cover BS-691668
...
534
SCREW (1 15/16) BS-93322
...
535B
FILTER, Pre Cleaner BS-271466
...
535A
FILTER-A/C FOAM BS-27987S
...
535
FILTER, Pre Cleaner BS-271466
...
536
CLEANER, Air BS-296766
...
549
WASHER BS-271118
...
642A
COVER, Air Cleaner BS-222626
...
642
COVER, Air Cleaner BS-493822
...
643A
SUPPORT, Foam Element (1/2 Deep) BS-222845
...
643
RETAINER, Air Filter BS-280374
...
676A
DEFLECTOR, Muffler BS-590745
...
676
DEFLECTOR, Muffler BS-397931
...
852A
CLEANER, Air BS-392368
...
852
COVER, Air Cleaner BS-493822

Replacement Engine - US & Canada

...

No Parts Available for this Schematic

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
