0777-2 Briggs and Stratton Pressure Washer 1,300 PSI

Model: 0777-2

Back To Assemblies

Save Part Not Listed?
product name

Main Unit

...
...
2
DECAL, BRANCH CRCT BS-B1415GS
...
3
DECAL, Unit BS-A1252
...
4
DECAL, 00777-1 INSTRUCT BS-B2525GS
...
5
DECAL, 1-800 Number BS-20566GS
...
6
FOAM, AIR IN FAN END BS-98806GS
...
7
HOUSING-SWITCH BS-B1650GS
...
8
SWITCH, Rocker 16A BS-20984
...
9
MNT, VIBR, 15DI BS-98801GS
...
10
COVER, Motor BS-97892
...
11
COUPLER, 1/2" NPT BS-5020985
...
12
PLUG BS-5020986FS
...
13
SCREW BS-84543BGS
...
14
CORD, Power BS-98805
...
15
PLASTITE, #6-19 X .75 BS-84358GS
...
16
RELIEF, STRAIN, CORD BS-99349GS
...
17
DECAL, ETL ELECT P.W. BS-B1053GS
...
18
DECAL, Data BS-B2708
...
19
OVERLAMINATE BS-99736
...
20
HSNG, EPW, GNRC, RED OUTLET BS-21334GS
...
21
BACK PLATE BS-5021335
...
22
QC, PLSTC, GARDEN BS-21265GS
...
23
Garden Hose Quick Connect BS-7175187GS
...
24
NUT, STRN RELIEF, LOCK BS-A1484GS
...
25
SEAL RING, Strain Relief BS-A1485
...
26
O-RING, Housing Seal BS-97835GS
...
27
PLASTITE, #6-19 X 1.0 BS-99350GS
...
28
GUN, Spray BS-21336
...
29
EXTNSN, BAY, BAY BS-21337GS
...
30
HOSE, High Pressure BS-97810
...
31
NZZL, HIGH W/FG AL1.15 BS-B3333DGS
...
32
FOAMER BS-A1069
...
33
ADPTR, BAYONET AL-8 BS-B1051GS
...
34
GOGGLES BS-87815GS
...
36
ORIFICE BS-B1236DGS
...
37
ACC, KIT, BRUSH, DUAL BS-6057
...
38
NZZL, TURBO, 1.15, M22, ARL BS-B1300DGS
...
39
BRUSH, MULTI-USE BS-B2391GS

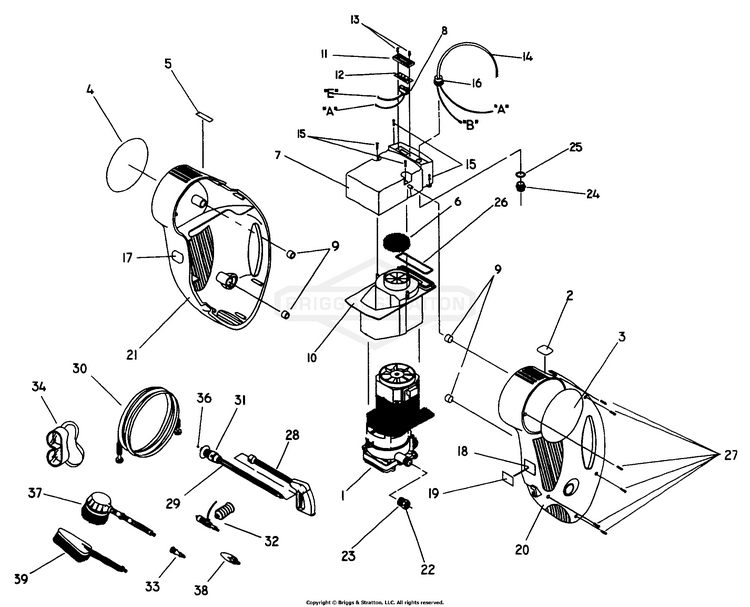

Schematic Image Zoomed
