0773-0 Briggs and Stratton Pressure Washer 2,100 PSI

Model: 0773-0

Save Part Not Listed?
product name

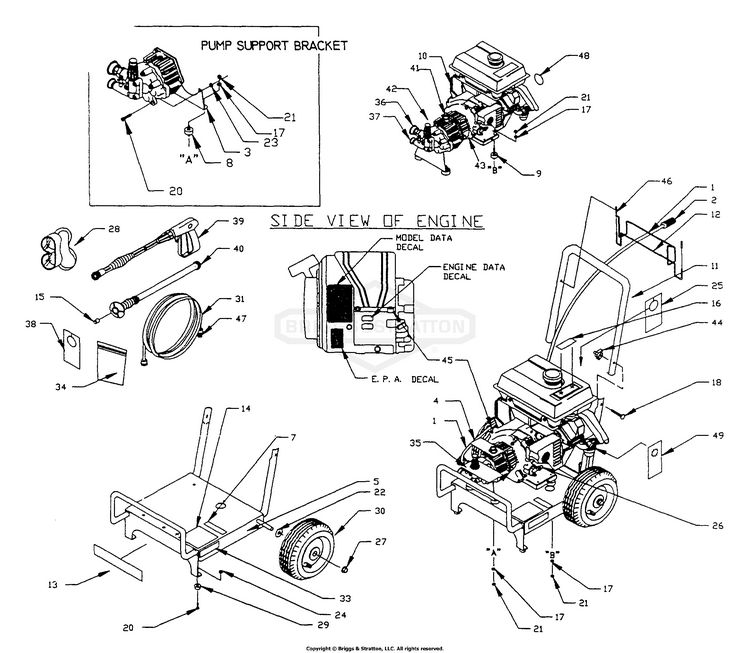

Pressure Washer

...
...
1
HOSE-CHEMICAL BS-705076
...
2
FILTER-CHEM HOSE BS-709496
...
3
BRACKET, PUMP SUPPORT BS-A1701
...
4
TAG, Breather BS-B1288GS
...
5
WLDMNT, BASE, HSPW BS-B1078GS
...
7
DECAL, 1-800 Number BS-20566GS
...
8
RIM, WHEEL BS-84010093
...
9
MOUNT, Rubber Shock BS-21217GS
...
10
GN191, ENGINE GPS BS-~NSP
...
11
BELT BS-84009028
...
12
DECAL, 52 BS-5022812SM
...
13
DECAL, LOGO BS-21295
...
14
DECAL, IMPORTANT BS-21521
...
15
NOZZLE, Replacement BS-92661GS
...
16
LABEL, Warning BS-21786GS
...
17
WASHER, Lock BS-22129GS
...
18
BOLT, Carriage BS-31669GS
...
19
SCREW BS-38750GS
...
20
CAPSCREW M8-1.25X16 BS-703988
...
21
SKID PLATE BS-5045771B
...
22
WASHER, Flat BS-49808GS
...
23
NUT-M6 FLANGE BS-52857GS
...
24
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
25
TAG, Oil Warning BS-70453GS
...
26
LIQUID NEOPRENE BS-~NSP
...
27
PUSHNUT BS-194062GS
...
28
GOGGLES BS-87815GS
...
29
MOUNT, Rubber Donut BS-87841GS
...
30
ASSY., Wheel & Tire 10" BS-88521GS
...
31
HIGH PRESSURE HOSE BS-91630
...
33
DECAL, CAUTION, INSTR BS-96415GS
...
34
KIT, CLNNG, P/W NOZ BS-97009GS
...
35
TAG, PRESSURE ADJUST BS-97054
...
36
CAP, GRDN HOSE, INLET BS-97098GS
...
37
CAP, ADPTR, HP BS-97100GS
...
38
TAG, Nozzle Instructions BS-97566GS
...
39
KIT, GUN/CONN, RPLCMNT BS-189533GS
...
40
WAND, FG HI-LO 1.20 BS-B3264CGS
...
41
BREATHER BS-99735GS
...
42
HEAD ASSY BS-21301A
...
43
FINAL PUMP ASSY SEE "PUMP" ILLUSTRATION AND PARTS LIST BS-~NSP
...
44
KNOB, Handle BS-97178GS
...
45
CLAMP, Hose BS-B1232GS
...
46
VINYL CAP BS-92528
...
47
TEFLON TAPE BS-~NSP
...
48
DECAL, RECOIL BS-91682A
...
49
TAG BS-B1210AGS
...
TANK, FUEL, 1 GAL, PLAIN BS-94994GS
...
CAP, FUEL, THREAD VENT BS-95549GS

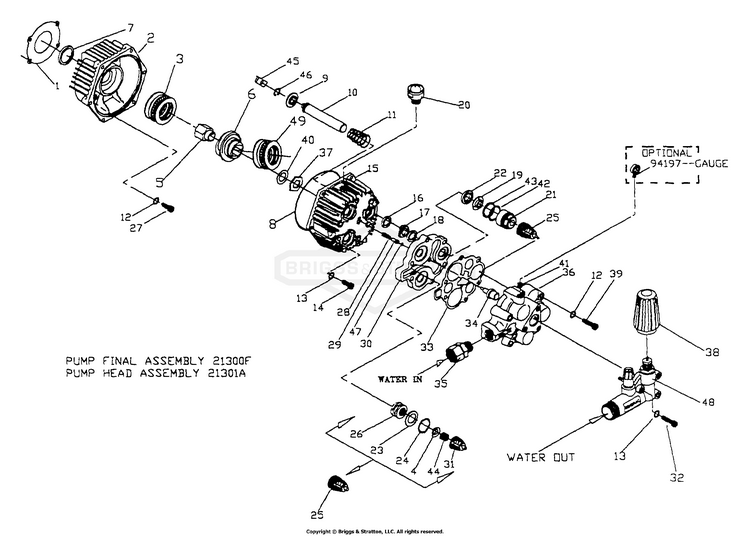

Pump

...
...
1
GSKT, ADPTR, ENG BS-93871GS
...
2
ADPTR, ENG, MCHND BS-96430AGS
...
3
ASSY, BRNG, RLLR, THRST, 81110 BS-96542GS
...
4
POPPET, VLV, CHCK BS-97215GS
...
5
ADPTR, ENG SHFT, TAPER BS-95165GS
...
6
CAM, MED, 8.0, 5.5, MACH BS-97673VGS
...
7
PLATE, SPACER, ENG D.1.62 BS-95441GS
...
8
O-RING, Crankcase BS-93790GS
...
10
PISTON BS-95217
...
11
SPRING, Piston Return BS-96400GS
...
12
WASHER, Lock BS-92479GS
...
13
LOCKWASHER, M6-RIBBED BS-93873
...
14
SCREW BS-40945GS
...
15
HSNG, PSTN BS-97568YGS
...
16
SEAL, Oil Piston BS-93680GS
...
17
SPACER, PILOT BS-93668GS
...
18
SEAL, PSTN, U-CUP BS-93667GS
...
19
RING, Bearing BS-96015GS
...
20
BREATHER BS-99735GS
...
21
TOWER, HI-PRESS PORT, SS BS-97027GS
...
22
SEAL, High Pressure BS-96053GS
...
23
RING, BACKUP, HYTRILE BS-95504GS
...
24
O-RING, 0.67 X 0.88 X 0.10 BS-95503GS
...
25
ASSY, VLV, CHK BS-97128GS
...
26
SPPRT, VLV, CHK, SS SEAT BS-97028GS
...
27
CAPSCREW, Socket Head BS-23707GS
...
28
SPRING, Thermal By-Pass BS-93652GS
...
29
PISTON, Thermal By-Pass BS-95416GS
...
30
PLATE, SPACER BS-97122Z
...
31
GUIDE, VLV, CHK POPPET, PLSTC BS-89137GS
...
32
SHCS, M6-1.0 X 45 BS-46580GS
...
33
GASKET, HEAD BS-93645
...
34
ACTUATOR, Thermal By-Pass BS-93644GS
...
35
Conn, Gdn Hse BS-95320GS
...
36
HEAD, CYLINDER-ALUMINUM BS-97120Z
...
37
NUT, JAM. BS-93887
...
38
Handle (Replacement Part Only) BS-A2283
...
39
SCREW BS-690346
...
40
WSHR, BELV, 16 X 2.7 BS-94738GS
...
41
PLUG, 1/8" - 27 BS-96137GS
...
42
O-RING, 26.6 ID X 2.6 BS-96069GS
...
43
RING, BACKUP, HYTRILE BS-95506GS
...
44
SPRING, VLV, CHK BS-89138GS
...
45
SHOE, Piston Pivot BS-94944GS
...
46
C-RING, RETAINER BS-94284
...
47
SCREW BS-690312
...
48
BELT, A-SEC, 51.438EL BS-5021447YP
...
49
ASSY, THRST, BRNG, NDL BS-97606GS
