076361-01 Briggs and Stratton Generator 60,000 Watt LC Standby Generator

Model: 076361-01

Back To Assemblies

Save Part Not Listed?
product name

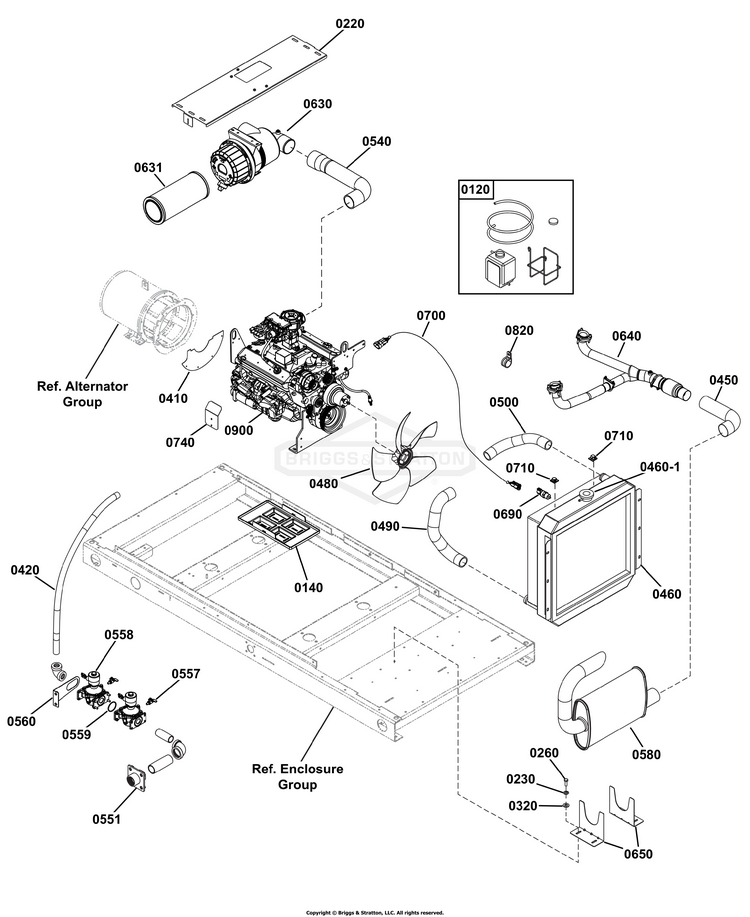

Engine Group

...
...
0010
CLAMP (Not Illustrated) BS-192669GS
...
0120
BOTTLE-OVERFLOW BS-205226GS
...
0140
TRAY-BATTERY BS-205623GS
...
0220
BRACKET-AIR CLEANER BS-708758
...
0410
COVER-DUST BS-B310532GS
...
0420
HOSE-FUEL BS-310809GS
...
0430
CABLE-BTTRY, BLACK (Not Illustrated) BS-310811GS
...
0440
CABLE-BTTRY, RED (Not Illustrated) BS-310812GS
...
0450
TUBE BS-311971GS
...
0460
RADIATOR BS-312322GS
...
0460-1
CAP-RADIATOR BS-314566GS
...
0460-2
VALVE-DRAIN (Not Illustrated) BS-314551GS
...
0480
FAN BS-312710GS
...
0490
HOSE BS-770027
...
0500
HOSE BS-313212GS
...
0540
TUBE-INTAKE BS-770028
...
0551
COUPLER BS-BC310518GS
...
0557
VALVE-BALL BS-312788GS
...
0558
VALVE-FUEL BS-316258GS
...
0559
O-RING BS-316259GS
...
0580
MUFFLER BS-707173
...
0630
FILTER-AIR BS-709905
...
0631
FILTER-CARTRIDGE BS-770029
...
0640
EXHAUST BS-706616
...
0650
BRACKET BS-707174
...
0690
SENSOR, Low Coolant BS-84011155
...
0700
HARNESS-WIRE, LOW COOLANT SESNOR BS-708762
...
0710
CLIP BS-197355GS
...
0730
HARNESS-WIRE (Not Illustrated) BS-708763
...
0820
CLAMP BS-704270
...
0900
ENGINE-5.7L BS-84013865
