076361-01 Briggs and Stratton Generator 60,000 Watt LC Standby Generator

Model: 076361-01

Back To Assemblies

Save Part Not Listed?
product name

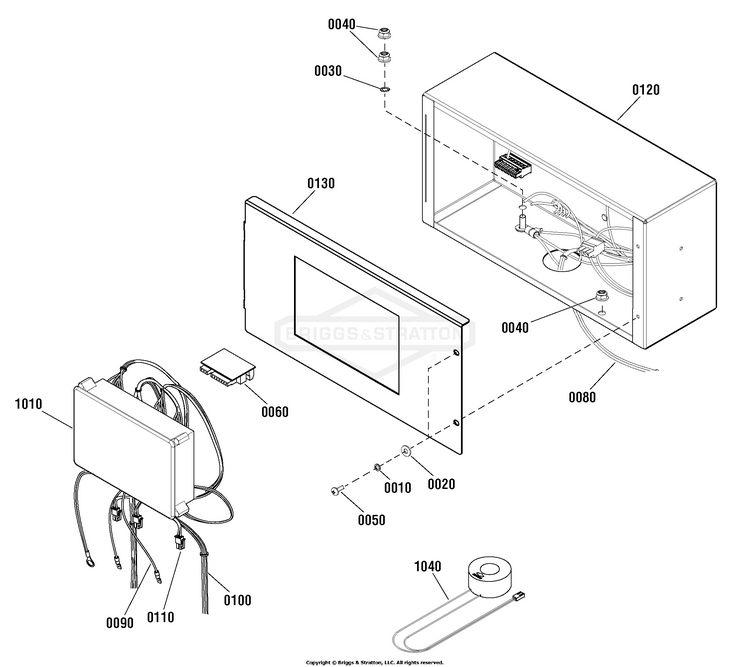

Control Panel Group

...
...
0060
CIRCUIT BOARD BS-708781
...
0080
HARNESS-WIRE BS-708782
...
0090
HARNESS-WIRE BS-708787
...
0100
HARNESS-WIRE BS-708784
...
0110
HARNESS-WIRE BS-708785
...
0120
BOX-CONTROL BS-770303
...
0130
COVER-CONTROL BOX (Intelilite Controller) BS-770306
...
1010
CONTROL PANEL BS-317970GS
...
1040
CURRENT TRANSFORMER, 200/240V (300A) BS-708786
...
1040
CURRENT TRANSFORMER, 416/480/600V (100A) BS-708788
