076346-00 Briggs and Stratton 35,000 Watt LC Standby Generator

Model: 076346-00

Back To Assemblies

Save Part Not Listed?
product name

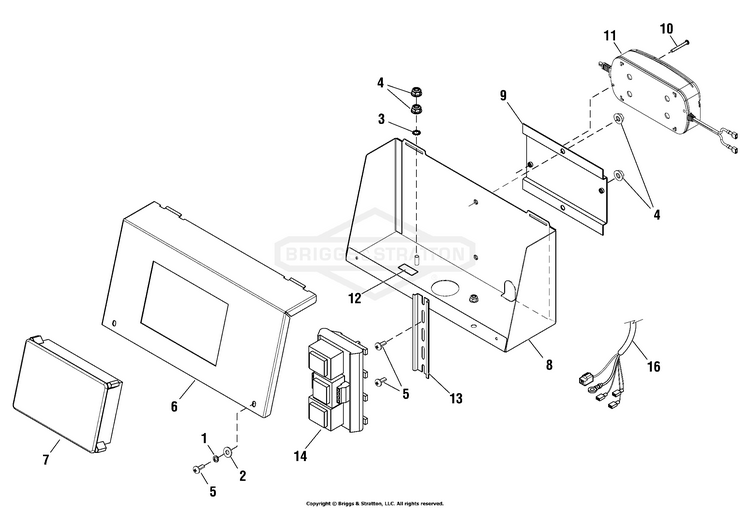

Control Panel Group

...
...
7
CONTROL PANEL BS-317970GS
...
9
BRACKET BS-704386
...
11
CHARGER-BATTERY BS-704387
...
12
DECAL SHEET, WARNINGS BS-705920
...
13
RAIL BS-704177
...
14
TRANSMFORMER BS-704176
...
16
HARNESS-WIRE BS-704244
...
--
CONNECTOR (Not Illustrated) BS-704245
