076004NG-0 Briggs and Stratton 30,000 Watt Home Generator System

Model: 076004NG-0

Back To Assemblies

Save Part Not Listed?
product name

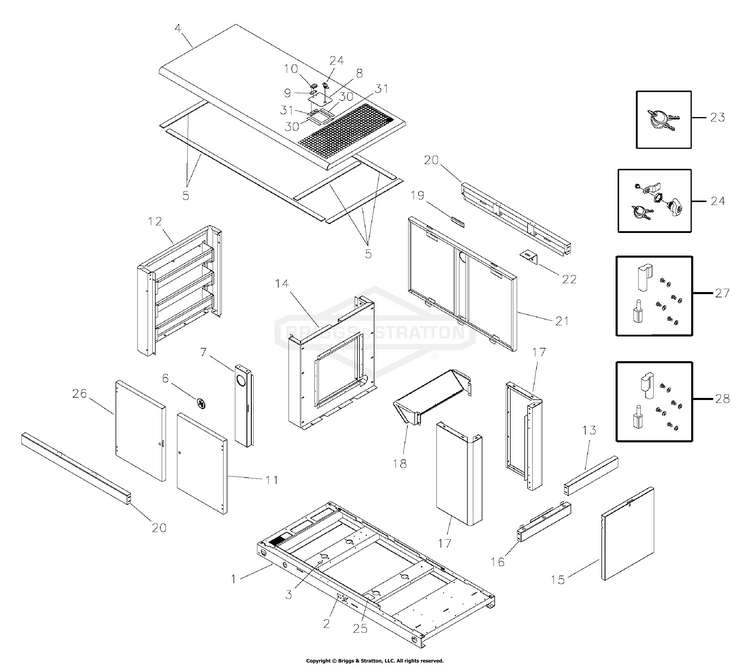

Enclosure Group

...
...
1
BASE BS-AE207462GS
...
2
DECAL, Operation Instructions BS-186640GS
...
3
DECAL SHEET, WARNINGS BS-705920
...
4
ROOF BS-312049GS
...
5
SEAL TAPE, Vinyl BS-205368GS
...
6
DECAL, Logo BS-207096GS
...
7
ASSEMBLY, Support Door BS-207995GS
...
8
COVER BS-AF310482GS
...
9
PLATE, Cover BS-AF310477GS
...
10
HINGE, Plate Cover BS-205225GS
...
11
ASSEMBLY, Door, Right BS-204994GS
...
12
ASSEMBLY, Bulkhead, Alternator BS-207709GS
...
13
ASSEMBLY, Support Rail, Top BS-207697GS
...
14
ASSEMBLY, Bulkhead, Engine BS-207699GS
...
15
ASSEMBLY, Door BS-207701GS
...
16
ASSEMBLY, Support Rail, Bottom BS-207705GS
...
17
ASSEMBLY, Corner, Exhaust BS-207693GS
...
18
ASSEMBLY, Baffle Exhaust BS-207707GS
...
19
HANDLE, Door BS-186049GS
...
20
ASSEMBLY, Support Rail BS-207679GS
...
21
ASSEMBLY, Weldment Door BS-207677GS
...
22
BRACKET BS-B310486GS
...
23
KEY, Latch BS-207652GS
...
24
KIT, Door Latch BS-204700GS
...
25
DECAL, Requirements BS-205126GS
...
26
ASSEMBLY, Door, Left BS-207993GS
...
27
KIT, Door Hinge, Left BS-204852GS
...
28
KIT, Door Hinge, Right BS-204920GS
...
30
SEAL, Foam BS-197316GS
...
31
SEAL, Foam BS-207758GS
...
--
SEAL (Not Illustrated) BS-207942GS
