076004NG-0 Briggs and Stratton 30,000 Watt Home Generator System

Model: 076004NG-0

Back To Assemblies

Save Part Not Listed?
product name

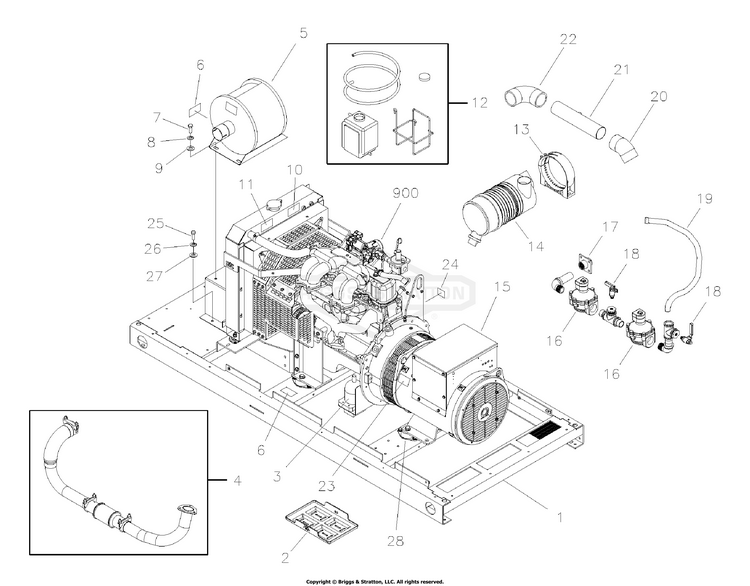

Main Unit Group

...
...
1
BASE BS-AE207462GS
...
2
TRAY, Battery BS-205623GS
...
3
ASSEMBLY, Heater, Tank BS-206119GS
...
4
KIT, Exhaust BS-204892GS
...
5
SILENCER, Muffler BS-204654GS
...
6
DECAL SHEET, WARNINGS BS-705920
...
10
DECAL, Warning Hot Coolant BS-205396GS
...
11
DECAL SHEET, WARNINGS BS-705920
...
12
KIT, Bottle Overflow BS-205226GS
...
13
CLAMP, Air Cleaner BS-205103GS
...
14
AIR CLEANER BS-709904
...
--
CARTRIDGE-AIR CLEANER BS-709906
...
15
ALTERNATOR BS-204343GS
...
--
ASSEMBLY., Rectifier BS-207019GS
...
--
REGULATOR, Voltage BS-207020GS
...
16
VALVE-FUEL BS-316559GS
...
17
COUPLER, Fuel System BS-AE204802GS
...
18
VALVE, Ball 1/4 BS-206626GS
...
19
ASSEMBLY, Hose, Fuel BS-207914GS
...
20
ELBOW, Rubber BS-205012GS
...
21
TUBE, Inlet, Air BS-204841GS
...
22
ELBOW, Rubber BS-204869GS
...
23
DECAL, Explosion Hazard BS-205401GS
...
24
DECAL, Operation Instructions BS-186640GS
...
28
MOUNT, Vibration BS-204653GS
...
--
KIT, Manual, ACC (Not Illustrated) BS-207649GS
...
--
MANUAL, Operator’s (Not Illustrated) BS-207635GS
...
--
MANUAL, Install (Not Illustrated) BS-207637GS
...
--
MANUAL, Engine, PSI (Not Illustrated) BS-206992GS
...
--
SWITCH, Oil Pressure (Not Illustrated) BS-841281
...
--
SWITCH, Temperature (Not Illustrated) BS-204751GS
...
--
ASSEMBLY, Wall Plate (Not Illustrated) BS-207337GS
...
--
HOSE, Flex (Not Illustrated) BS-205206GS
...
--
ASSEMBLY, Oil Drain Hose (Not Illustrated) BS-206943GS
...
--
FUSE, Auto Type, 15 Amp (Not Illustrated) BS-84010838
...
--
PAINT, Touch-Up, Silver Pearlescent, 1/2oz (Not Illustrated) BS-208345GS
...
--
PAINT, Touch-Up, Silver, 1/2oz (Not Illustrated) BS-208346GS
...
--
KIT, Hold Down Battery (Not Illustrated) BS-205622GS
...
--
PAINT, Spray, Silver (Optional Accessory) BS-199475GS
...
--
PAINT, Touch-Up, Spray,Silver Pearlescent, 12oz (Optional Accessory) BS-208349GS
...
--
SET, French Decals, Adhesive (Optional Accessory) BS-207244GS
...
--
DECAL, Do Not Lift, French (Optional Accessory) BS-207422GS
