076001NG-0 Briggs and Stratton 45,000 Watt Home Generator System

Model: 076001NG-0

Back To Assemblies

Save Part Not Listed?
product name

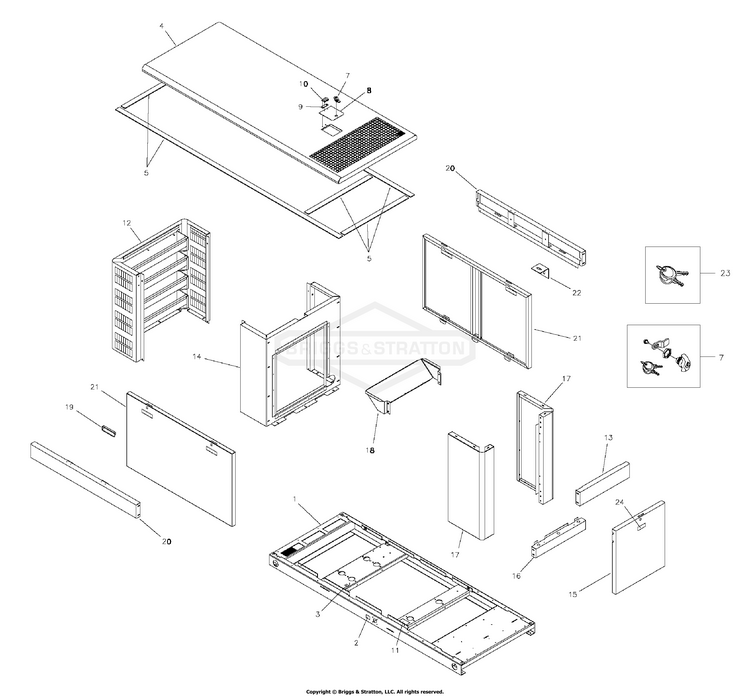

Enclosure Group

...
...
1
BASE BS-AA204791GS
...
2
DECAL, Operation Instructions BS-186640GS
...
3
DECAL SHEET, WARNINGS BS-705920
...
4
ROOF BS-312051GS
...
5
SEAL TAPE, Vinyl BS-205368GS
...
7
LATCH BS-198889GS
...
8
COVER BS-AF310482GS
...
9
PLATE, Hinge BS-T204443GS
...
10
HINGE, Plate Cover BS-205225GS
...
11
DECAL, Requirements BS-205126GS
...
12
ASSEMBLY, Bulkhead, Alternator BS-207044GS
...
13
ASSEMBLY, Support Rail, Top BS-207045GS
...
14
ASSEMBLY, Bulkhead, Engine BS-207046GS
...
15
ASSEMBLY, Door BS-205854GS
...
16
ASSEMBLY, Support Rail, Bottom BS-207030GS
...
17
ASSEMBLY, Corner, Exhaust BS-207047GS
...
18
BAFFLE BS-208050GS
...
19
HANDLE, Door BS-186049GS
...
20
ASSEMBLY, Support Rail BS-207048GS
...
21
ASSEMBLY, Weldment Door BS-207032GS
...
22
BRACKET BS-B310486GS
...
23
KEY, Door Latch BS-194828GS
...
24
DECAL SHEET, WARNINGS BS-705920
...
--
SEAL BS-207942GS
...
--
SEAL, Tape, Vinyl, 50 Ft Roll (Cut to BS-205357GS
