076001NG-0 Briggs and Stratton 45,000 Watt Home Generator System

Model: 076001NG-0

Back To Assemblies

Save Part Not Listed?
product name

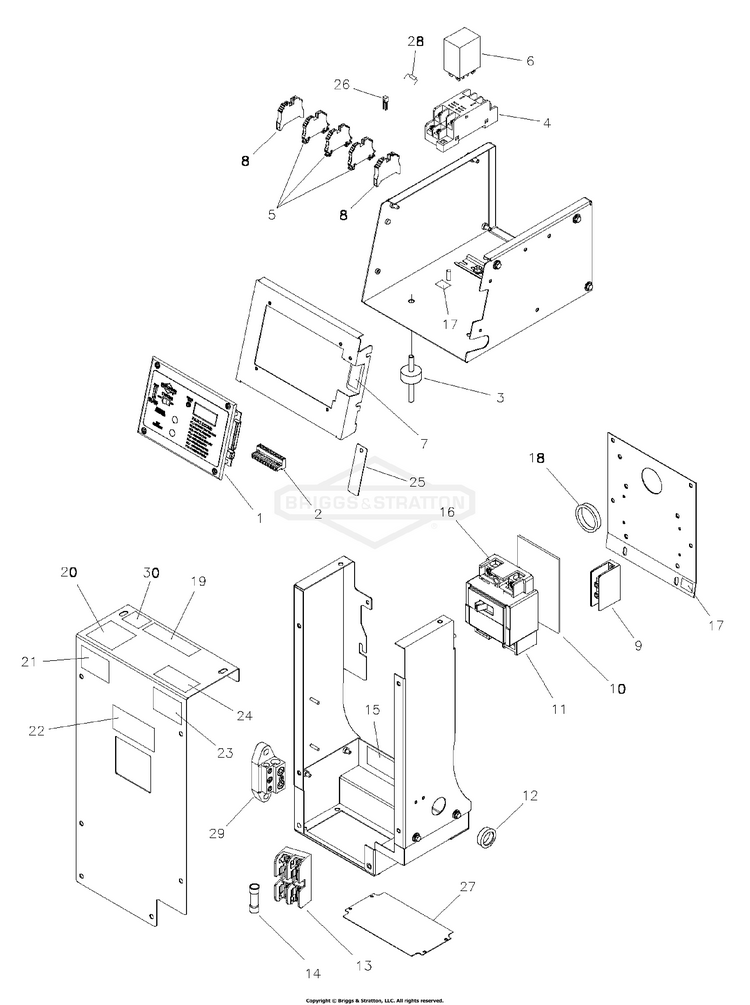

Control Panel Group

...
...
1
CONTROL PANEL ASSEMBLY BS-311353GS
...
2
CONNECTOR, Terminal, 10-Pin BS-198516GS
...
3
MOUNT, Vibration BS-21217GS
...
4
PLUG, Relay BS-201307GS
...
5
BLOCK, Terminal BS-205028GS
...
6
RELAY BS-205026GS
...
7
DECAL, Terminal Block BS-198549GS
...
8
BLOCK, Terminal BS-205029GS
...
9
TERMINAL, Neutral BS-190841GS
...
10
INSULATOR BS-204519GS
...
11
CIRCUIT BREAKER BS-192065GS
...
12
BUSHING, Snap 1-3/11 BS-186173GS
...
13
FUSE HOLDER BS-192151GS
...
14
FUSE BS-205110GS
...
15
DECAL, Ground Neutral BS-198550GS
...
16
KIT, Load Lug Conversion BS-204530GS
...
17
DECAL SHEET, WARNINGS BS-705920
...
18
BUSHING, Snap 2 BS-203015GS
...
19
DECAL, Danger High Voltage BS-B5082AGS
...
20
DECAL SHEET, WARNINGS BS-705920
...
21
DECAL, Warning Electrical Shock BS-205394GS
...
22
DECAL, Caution, Standby BS-193297GS
...
23
DECAL, Warning, Electrical Shock BS-205395GS
...
24
DECAL, Warning, Outdoor Install BS-205393GS
...
25
COVER, 10 Pin Connector BS-AA205058GS
...
26
JUMPER, Screw BS-205030GS
...
27
PLATE, Bottom Access BS-AA206191GS
...
28
DIODE BS-205588GS
...
29
TERMINAL, Neutral (Includes mounting and bonding screws.) BS-192696GS
...
30
DECAL, Fuse Spec BS-207241GS
...
--
WIRE HARNESS BS-205953GS
...
--
FUSE, Auto Type, 15 Amp BS-84010838
...
--
DECAL, Fuse BS-205115GS
...
--
DECAL SHEET-WARNINGS BS-704418
