product name

076001NG-0 Briggs and Stratton 45,000 Watt Home Generator System

Model: 076001NG-0

Save
 Part Not Listed?Part Not Listed?
product name

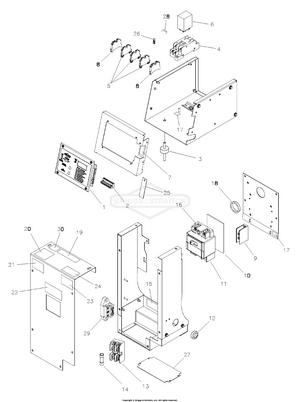

Control Panel Group

...
...
1
CONTROL PANEL ASSEMBLY BS-311353GS
...
2
CONNECTOR, Terminal, 10-Pin BS-198516GS
...
3
MOUNT, Vibration BS-21217GS
...
4
PLUG, Relay BS-201307GS
...
5
BLOCK, Terminal BS-205028GS
...
6
RELAY BS-205026GS
...
7
DECAL, Terminal Block BS-198549GS
...
8
BLOCK, Terminal BS-205029GS
...
9
TERMINAL, Neutral BS-190841GS
...
10
INSULATOR BS-204519GS
...
11
CIRCUIT BREAKER BS-192065GS
...
12
BUSHING, Snap 1-3/11 BS-186173GS
...
13
FUSE HOLDER BS-192151GS
...
14
FUSE BS-205110GS
...
15
DECAL, Ground Neutral BS-198550GS
...
16
KIT, Load Lug Conversion BS-204530GS
...
17
DECAL SHEET, WARNINGS BS-705920
...
18
BUSHING, Snap 2 BS-203015GS
...
19
DECAL, Danger High Voltage BS-B5082AGS
...
20
DECAL SHEET, WARNINGS BS-705920
...
21
DECAL, Warning Electrical Shock BS-205394GS
...
22
DECAL, Caution, Standby BS-193297GS
...
23
DECAL, Warning, Electrical Shock BS-205395GS
...
24
DECAL, Warning, Outdoor Install BS-205393GS
...
25
COVER, 10 Pin Connector BS-AA205058GS
...
26
JUMPER, Screw BS-205030GS
...
27
PLATE, Bottom Access BS-AA206191GS
...
28
DIODE BS-205588GS
...
29
TERMINAL, Neutral (Includes mounting and bonding screws.) BS-192696GS
...
30
DECAL, Fuse Spec BS-207241GS
...
--
WIRE HARNESS BS-205953GS
...
--
FUSE, Auto Type, 15 Amp BS-84010838
...
--
DECAL, Fuse BS-205115GS
...
--
DECAL SHEET-WARNINGS BS-704418

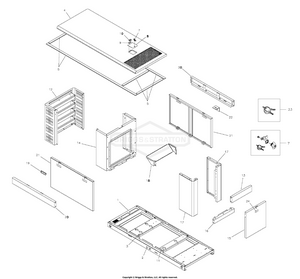

Enclosure Group

...
...
1
BASE BS-AA204791GS
...
2
DECAL, Operation Instructions BS-186640GS
...
3
DECAL SHEET, WARNINGS BS-705920
...
4
ROOF BS-312051GS
...
5
SEAL TAPE, Vinyl BS-205368GS
...
7
LATCH BS-198889GS
...
8
COVER BS-AF310482GS
...
9
PLATE, Hinge BS-T204443GS
...
10
HINGE, Plate Cover BS-205225GS
...
11
DECAL, Requirements BS-205126GS
...
12
ASSEMBLY, Bulkhead, Alternator BS-207044GS
...
13
ASSEMBLY, Support Rail, Top BS-207045GS
...
14
ASSEMBLY, Bulkhead, Engine BS-207046GS
...
15
ASSEMBLY, Door BS-205854GS
...
16
ASSEMBLY, Support Rail, Bottom BS-207030GS
...
17
ASSEMBLY, Corner, Exhaust BS-207047GS
...
18
BAFFLE BS-208050GS
...
19
HANDLE, Door BS-186049GS
...
20
ASSEMBLY, Support Rail BS-207048GS
...
21
ASSEMBLY, Weldment Door BS-207032GS
...
22
BRACKET BS-B310486GS
...
23
KEY, Door Latch BS-194828GS
...
24
DECAL SHEET, WARNINGS BS-705920
...
--
SEAL BS-207942GS
...
--
SEAL, Tape, Vinyl, 50 Ft Roll (Cut to BS-205357GS

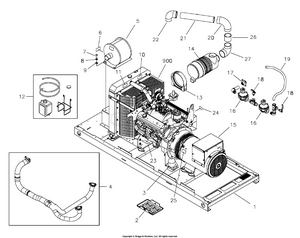

Main Unit Group

...
...
1
BASE BS-AA204791GS
...
2
TRAY, Battery BS-205623GS
...
3
ASSY, Heater, Tank BS-206119GS
...
4
KIT, Exhaust BS-205043GS
...
5
SILENCER, Muffler BS-204654GS
...
6
DECAL SHEET, WARNINGS BS-705920
...
10
DECAL, Warning Hot Coolant BS-205396GS
...
11
DECAL SHEET, WARNINGS BS-705920
...
12
KIT, Bottle Overflow BS-205226GS
...
13
CLAMP, Air Cleaner BS-204868GS
...
14
ASSY, Air Cleaner BS-204275GS
...
--
FILTER-CARTRIDGE BS-770029
...
15
ASSY, Alternator BS-204341GS
...
--
Assy, Rectifier BS-207019GS
...
--
Regulator, Voltage BS-207020GS
...
16
VALVE-FUEL BS-316559GS
...
17
COUPLER, Fuel System BS-AA204802GS
...
18
VALVE, Ball 1/4" BS-206626GS
...
19
ASSY, Hose, Fuel BS-206455GS
...
20
ELBOW, Rubber BS-206727GS
...
21
TUBE, Inlet, Air BS-206650GS
...
22
ELBOW, Rubber BS-206598GS
...
23
DECAL, Warning, Hot BS-200409GS
...
24
DECAL, Operation Instructions BS-186640GS
...
25
DECAL, Explosion Hazard BS-205401GS
...
26
TUBE, Inlet, Air BS-206729GS
...
27
ELBOW, Rubber BS-206539GS
...
--
KIT, Manual Parts Not Illustrated BS-204308GS
...
--
MANUAL, Operator’s Parts Not Illustrated BS-205051GS
...
--
MANUAL, Install Parts Not Illustrated BS-205049GS
...
--
MANUAL, Engine, PSI Parts Not Illustrated BS-206992GS
...
--
SWITCH, Oil Pressure Parts Not Illustrated BS-841281
...
--
SWITCH, Temperature Parts Not Illustrated BS-206533GS
...
--
KIT,SERVICE,WALL PLATE Parts Not Illustrated BS-313326GS
...
--
HOSE, Flex Parts Not Illustrated BS-205206GS
...
--
ASSY, Oil Drain Hose Parts Not Illustrated BS-206944GS
...
--
FUSE, Auto Type, 15 Amp Parts Not Illustrated BS-84010838
...
--
PAINT, Touch-Up, Continuum Charcoal, 1/2oz. Parts Not Illustrated BS-203374GS
...
--
PAINT, Touch-Up, Metallic Silver, 1/2oz. Parts Not Illustrated BS-198811GS
...
--
KIT, Hold Down Battery Parts Not Illustrated BS-205622GS
...
--
KIT, Decals, Service Parts Not Illustrated BS-207025GS
...
--
PAINT, Touchup, Spray, Silver, 12oz Optional Accessories BS-199475GS
...
--
PAINT, Touchup, Spray, Continuum Charcoal, 12oz Optional Accessories BS-203417GS
...
--
SET, French Decals, Adhesive Optional Accessories BS-207244GS
...
--
DECAL, Do Not Lift, French Optional Accessories BS-207422GS
...
--
KIT, Maintenance Optional Accessories BS-6168
...
...
...
