product name

074008-0 Briggs and Stratton Air Compressor 4.9 CFM 6 Gal

Model: 074008-0

Save
 Part Not Listed?Part Not Listed?
product name

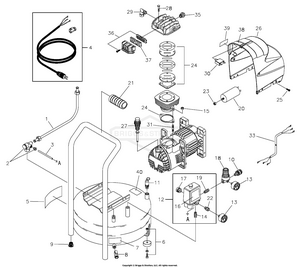

Air Compressor

...
...
1
Tube, Infeed BS-200673GS
...
2
Valve, Relief BS-200674GS
...
3
Hose, Rilsan BS-199961GS
...
4
Assy, Cable, Power BS-200720GS
...
5
Decal, Warning BS-199172GS
...
6
Kit, Vib Mount BS-192310GS
...
7
Decal, Tank Drain BS-199739GS
...
8
Valve, Drain BS-200675GS
...
9
Rubber Foot BS-200676GS
...
10
Coupler, Quick Connect BS-200677GS
...
11
Valve, Safety BS-200678GS
...
12
Assy, Pressure Switch BS-200679GS
...
13
Gauge, Pressure BS-200680GS
...
14
Adapter BS-201697GS
...
16
Decal, Electric Shock BS-199176GS
...
17
Plug BS-200364GS
...
18
Pressure Regulator BS-200681GS
...
19
Adapter BS-201059GS
...
20
Capacitor, 60µF BS-200692GS
...
21
Handle BS-200682GS
...
22
Coupling BS-200683GS
...
24
Kit, Valve Plate BS-200689GS
...
26
Kit, Shroud, Plastic Includes #38 & 39 BS-200690GS
...
27
Dipstick, Oil BS-200691GS
...
28
Screw, M6 x 40 BS-200684GS
...
29
Connector, Elbow BS-200685GS
...
30
Breaker,Circuit, 17A BS-200717GS
...
33
Wire Harness BS-200910GS
...
35
Valve, Start BS-200688GS
...
36
Kit, Air Filter BS-200687GS
...
37
Filtering Element BS-200697GS
...
38
Decal, Hot Surface BS-199174GS
...
39
Decal, Reset BS-201731GS
...
40
Decal, Important BS-201732GS
...
xx
Manual, Operator's Parts Not Illustrated BS-203719GS
...
xx
Oil, Compressor Parts Not Illustrated BS-201765GS
...
xx
Decal, Logo Parts Not Illustrated BS-203884GS
...
...
...
