074007-0 Briggs and Stratton Air Compressor 3.0 CFM Twintank

Model: 074007-0

Save
Don't See Your Part Listed?
product name

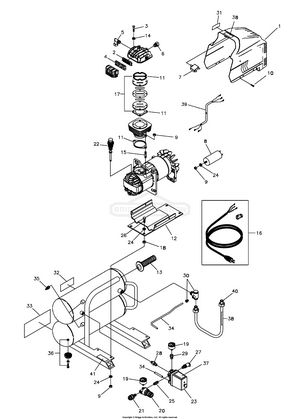

Main Unit

...
...
1
Kit, Shroud, Plastic (Includes #31 & 38) BS-205352GS

...
2
Plate, Filter BS-205353GS

...
3
Screw, M6 x 40 BS-200684GS

...
4
Filtering Element BS-200697GS

...
5
Connector, Elbow BS-205367GS

...
6
Valve, Start BS-205373GS

...
7
Breaker,Circuit BS-205363GS

...
8
Capacitor BS-201059GS

...
11
Kit, Gaskets BS-205356GS

...
12

...
13

...
16
Assy, Cable, Power BS-200720GS

...
xx
Decal, Attention BS-204262GS

...
17
Kit, Valve Plate BS-205361GS

...
18
Washer, Rubber BS-205364GS

...
19
Gauge, Pressure BS-200686GS

...
20
Pressure Reducer BS-205359GS

...
21
Coupler, Quick Connect BS-205365GS

...
22
Dipstick, Oil w/O-Ring BS-205360GS

...
23
Pressure Switch (Includes #37) BS-205371GS

...
25
Adapter BS-205372GS

...
27
Valve, Safety BS-205370GS

...
28
Adapter BS-200690GS

...
29
Adapter BS-200692GS

...
30
Valve, Non Return BS-200674GS

...
31
Decal, Reset BS-201731GS

...
32
Decal, Warning, Tank Drain BS-199739GS

...
33
Decal, Warning BS-199172GS

...
34
Hose, Rilsan BS-199961GS

...
35
Valve, Drain BS-200675GS

...
36
Kit, Vib Mount BS-192310GS

...
37
Decal, Electric Shock BS-199176GS

...
38
Decal, Hot Surface BS-199174GS

...
39
Wire Harness BS-205362GS

...
40
Kit, Infeed Tube BS-200699GS

...
41
Decal, Important, Level Surface BS-201732GS

...
--
Manual, Operator’s Parts Not Illustrated BS-203718GS

...
--
Oil, Compressor Parts Not Illustrated BS-201765GS

...
--
Decal, Logo Parts Not Illustrated BS-203881GS

...
--
Decal, Shroud Parts Not Illustrated BS-203883GS
...
...
...
...
