product name

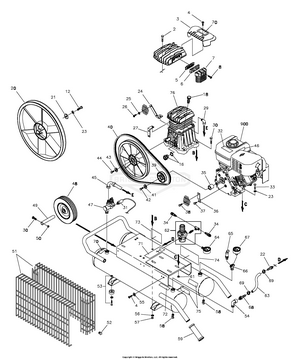

074002-0 Briggs and Stratton Air Compressor 9.2 CFM Wheelbarrow

Model: 074002-0

Save
 Part Not Listed?Part Not Listed?
product name

Main Unit

...
...
3
CONVEYOR, Air BS-200699GS
...
5
PLATE, Filter BS-201389GS
...
6
ELEMENT, Filtering BS-200697GS
...
7
FILTER, Intake BS-201390GS
...
9
GASKET BS-200698GS
...
10
KIT, Valve Plate Set BS-201382GS
...
16
OIL LEVEL SIGHT GLASS BS-200686GS
...
18
PLUG, Breather Pipe BS-201398GS
...
20
FLYWHEEL BS-200702GS
...
22
FITTING, Hose Tail BS-201408GS
...
24
PLATE BS-201401GS
...
27
SPACER BS-201402GS
...
29
CONNECTOR, Elbow BS-201404GS
...
31
ACCELERATOR, Pneumatic BS-201060GS
...
32
DECAL, Warning, Fuel Vapors BS-200537GS
...
34
COUPLER, Quick Connect BS-200677GS
...
35
SPACER BS-201405GS
...
36
PLATE BS-201403GS
...
39
PULLEY BS-200695GS
...
40
BELT BS-200693GS
...
45
INFEED TUBE BS-201063GS
...
46
DECAL, Warning, Hot Muffler BS-200538GS
...
47
VALVE, Auto Unloading BS-201064GS
...
48
WHEEL BS-201061GS
...
49
PIN, Wheel BS-201062GS
...
51
GUARD, Belt BS-200696GS
...
52
CLAMP, Belt Guard BS-201409GS
...
53
KIT, Vibration Mount (Includes Qty of 2) BS-192310GS
...
54
CONNECTOR, Elbow BS-201419GS
...
58
TAP, Discharge BS-200675GS
...
59
HANDLE, Rubber BS-201411GS
...
62
ASSY, Pressure Reducer BS-201413GS
...
63
HOSE BS-201418GS
...
64
GUAGE, Pressure BS-201420GS
...
65
VALVE, Safety BS-201414GS
...
66
ADAPTER BS-201416GS
...
67
GUAGE, Pressure BS-201415GS
...
68
FITTING, Hose Tail BS-201417GS
...
70
DECAL, Hot Surface BS-199175GS
...
71
DECAL, Starting Instructions BS-200775GS
...
72
DECAL, Warning, Moving Parts BS-200536GS
...
73
DECAL, Warning BS-199173GS
...
74
DECAL, Warning BS-200535GS
...
75
DECAL, Tank Drain BS-199739GS
...
76
ASSY, Pump BS-201400GS
...
MANUAL, Operator's Not Illustrated BS-198854GS
...
OIL, Compressor Not Illustrated BS-201770GS
...
DECAL, Unloader Valve Not Illustrated BS-200774GS
...
KIT, Decals, Srv Not Illustrated BS-201757GS
...
BOTTLE, Oil Not Illustrated BS-100005
...
...
...
