074000-0 Briggs and Stratton Air Compressor 5.8 CFM Pancake

Model: 074000-0

Save
 Part Not Listed?Part Not Listed?
product name

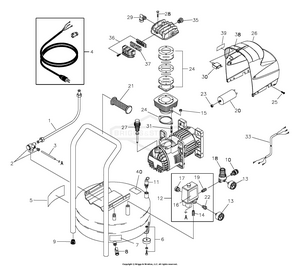

Main Unit

...
...
1
TUBE, Infeed BS-200673GS
...
2
VALVE, Relief BS-200674GS
...
3
HOSE, Rilsan BS-199961GS
...
4
ASSY, Cable, Power BS-200720GS
...
5
DECAL, Warning BS-199172GS
...
6
KIT, Vib Mount BS-192310GS
...
7
DECAL, Tank Drain BS-199739GS
...
8
VALVE, Drain BS-200675GS
...
9
RUBBER FOOT BS-200676GS
...
10
COUPLER, Quick Connect BS-200677GS
...
11
VALVE, Safety BS-200678GS
...
12
ASSY, Pressure Switch BS-200679GS
...
13
GAUGE, Pressure BS-200680GS
...
14
ADAPTER BS-201697GS
...
16
DECAL, Electric Shock BS-199176GS
...
17
PLUG BS-200364GS
...
18
PRESSURE REGULATOR BS-200681GS
...
19
ADAPTER BS-201059GS
...
20
CAPACITOR, 60µF BS-200692GS
...
21
HANDLE BS-200682GS
...
22
COUPLING BS-200683GS
...
24
KIT, Valve Plate BS-200689GS
...
26
KIT, Shroud, Plastic (Includes #38 & 39) BS-200690GS
...
27
DIPSTICK, Oil BS-200691GS
...
28
SCREW, M6 x 40 BS-200684GS
...
29
CONNECTOR, Elbow BS-200685GS
...
30
BREAKER, Circuit, 17A BS-200717GS
...
33
WIRE HARNESS BS-200910GS
...
35
VALVE, Start BS-200688GS
...
36
KIT, Air Filter BS-200687GS
...
37
FILTERING ELEMENT BS-200697GS
...
38
DECAL, Hot Surface BS-199174GS
...
39
DECAL, Reset BS-201731GS
...
40
DECAL, Important BS-201732GS
...
MANUAL, Operator's Not Illustrated BS-198853GS
...
OIL, Compressor Not Illustrated BS-201765GS
...
KIT, Decals, Srv Not Illustrated BS-201725GS
...
...
...
