073047-00 Briggs and Stratton Water Pum High Pressure Pump

Model: 073047-00

Save
 Don't See Your Part Listed?
product name

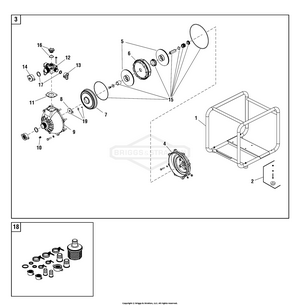

Pump (073047)

...
...
1
FRAME BS-865159GS
...
2
MOUNT, Vibration BS-197887GS
...
3
PUMP HEAD, Twin Impeller BS-706576
...
4
SEAL PLATE BS-706561
...
5
IMPELLER BS-706578
...
6
VOLUTE BS-706579
...
7
COVER, Flow Deflector BS-706586
...
8
CHECK VALVE BS-706564
...
9
HOUSING, Pump BS-706565
...
10
DRAIN PLUG BS-706566
...
11
GASKET, Out, 1.5 in. BS-706567
...
12
PIPE FITTINGS, Out BS-706568
...
13
PLUG, 1 in. BS-706569
...
14
PLUG, 1.5 in. BS-706570
...
15
KIT, Seal BS-706585
...
16
KIT, Plug BS-706572
...
17
KIT, Gasket BS-706573
...
18
KIT, Accessory BS-706574
...
19
KIT, Check Valve BS-706575
...
...
...
...
