product name

073024-0 Briggs and Stratton Water Pum 317 GPM

Model: 073024-0

Save
 Part Not Listed?Part Not Listed?
product name

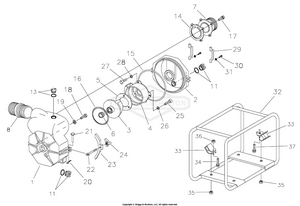

Trash Pump

...
...
1
Casing BS-205253GS
...
2
Cover, Casing BS-205256GS
...
3
Impeller BS-205257GS
...
4
Inner Casing BS-205260GS
...
5
Liner BS-205261GS
...
6
Seal, Mechanical BS-205262GS
...
7
Valve Case, BSP, 3" (North America) BS-205601GS
...
8
Fitting, Pipe, BSP, 3" (North America) BS-205602GS
...
11
Assy, Plug BS-205239GS
...
13
Assy, Priming Plug BS-205240GS
...
14
Check Valve BS-205259GS
...
15
O-Ring BS-205327GS
...
16
O-Ring BS-205328GS
...
19
Washer, Rubber BS-205299GS
...
20
Snap Pin BS-205258GS
...
21
Pin BS-205255GS
...
22
Cover Bolt BS-205254GS
...
23
Casing Cover Holder BS-205252GS
...
24
Knob BS-205251GS
...
29
Drain Cover Handle BS-205247GS
...
32
Cradle BS-205250GS
...
33
Anti Vibration, Rubber BS-205249GS
...
--
Manual, Operator's Parts Not Illustrated BS-205378GS
...
--
Decal, Warning, Fuel Tank Parts Not Illustrated BS-203522GS
...
--
Decal, Warning, Horizontal Parts Not Illustrated BS-204539GS
...
...
...
