073012-0 Briggs and Stratton Water Pum 248 GPM

Model: 073012-0

Save
 Part Not Listed?Part Not Listed?
product name

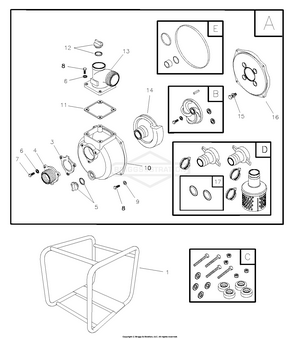

Main Unit

...
...
1
CRADLE BS-865159GS
...
3
VALVE, Check BS-197755GS
...
4
FLANGE, Inlet, 3" BSP BS-197757GS
...
5
ASSY, Plug BS-198057GS
...
10
HOUSING, Pump BS-704466
...
11
GASKET, Out BS-197759GS
...
12
ASSY, Plug BS-198155GS
...
13
FLANGE, OUT, 3 IN BSP BS-704464
...
14
VOLUTE, 3" BS-197748GS
...
15
ASSY, Fastener BS-198048GS
...
16
ADAPTER, ENGINE BS-704463
...
17
GASKET, 3" BS-197765GS
...
A
ASSY, Housing Pump Service kits include all parts shown within the box. BS-198062GS
...
B
KIT, Impeller Service kits include all parts shown within the box. BS-198156GS
...
C
KIT, Vibration Mount Service kits include all parts shown within the box. BS-197887GS
...
D
KIT,COUPLER,3 IN BSP Service kits include all parts shown within the box. BS-705413
...
E
KIT, Seal Service kits include all parts shown within the box. BS-198158GS
...
--
MANUAL, Operator’s Not Illustrated BS-MS5234
...
--
DECAL, Recoil Not Illustrated BS-198302GS
...
--
DECAL, Air Cleaner Not Illustrated BS-198301GS
...
--
DECAL, Fuel Tank Not Illustrated BS-198296GS
...
--
DECAL, Caution Not Illustrated BS-198303GS
...
--
LABEL, Warning Not Illustrated BS-198305GS
...
...
...
