073010-0 Briggs and Stratton Water Pum WP2-60

Model: 073010-0

Save
 Part Not Listed?Part Not Listed?
product name

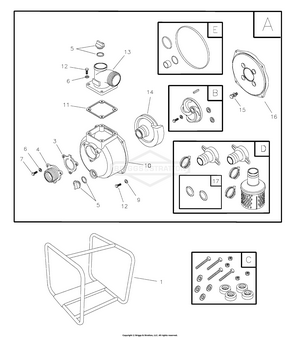

Main Unit

...
...
1
Cradle BS-865154GS
...
3
Valve, Check BS-197754GS
...
4
Flange, Inlet, 2" BSP BS-197756GS
...
5
Assy, Plug BS-198057GS
...
10
Housing, Pump BS-197752GS
...
11
Gasket, Out BS-197758GS
...
13
Flange, Out, 2" Bsp BS-197760GS
...
14
Volute BS-197747GS
...
15
Assy, Fastener BS-198048GS
...
16
Adapter, Engine BS-197738GS
...
17
Gasket, 2" BS-197764GS
...
A
Assy, Housing Pump (Service kits include all parts shown within the box) BS-197993GS
...
B
Kit, Impeller 2" (Service kits include all parts shown within the box) BS-198058GS
...
C
Kit, Vibration Mount (Service kits include all parts shown within the box) BS-197887GS
...
D
Kit, Coupler, 2" Bsp (Service kits include all parts shown within the box) BS-198073GS
...
E
Kit, Seal (Service kits include all parts shown within the box) BS-198075GS
...
--
Manual, Operator’s, 073010 (Parts Not Illustrated) BS-MS10406
...
--
Decal, Fuel Tank (Parts Not Illustrated) BS-198296GS
...
--
Label, Warning (Parts Not Illustrated) BS-198305GS
...
--
Decal, Caution (Parts Not Illustrated) BS-198303GS
...
--
Decal, Recoil (Parts Not Illustrated) BS-198295GS
...
--
Decal, Air Cleaner (Parts Not Illustrated) BS-198294GS
...
...
...
