073005-0 Briggs and Stratton Water Pum 30 GPM CE

Model: 073005-0

Save
 Don't See Your Part Listed?
product name

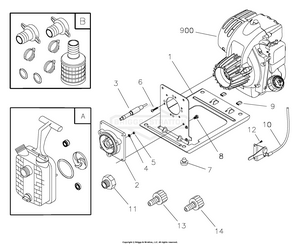

Main Unit

...
...
A
KIT, Pump Service kits include all parts shown within the box. BS-197648GS
...
B
KIT, Acc Micro Pump Service kits include all parts shown within the box. BS-197649GS
...
1
BASE, Pump BS-B197461GS
...
2
PLATE, Seal, Pump BS-197169GS
...
3
SHAFT, Pump BS-197545GS
...
4
WASHER, M5 BS-51713GS
...
5
NUT BS-198937GS
...
6
SCREW, Plastite #10 - 14 x 1.0 BS-197574GS
...
7
MOUNT-VIBRATION BS-197546GS
...
8
HHCS, M6 - 1.0 x 12 w/ LW BS-66476GS
...
9
CAP, Mounting BS-197605GS
...
10
THROTTLE, Capro BS-197606GS
...
11
ADAPTER BS-197653GS
...
12
HHS, Trilobular, #10-32 x 3/8 BS-194561GS
...
13
FITTING, Hose, 1/2 BS-202227GS
...
14
FITTING, Hose, 3/4 BS-202228GS
...
MANUAL, Operator's Not Illustrated BS-202064GS
...
MANUAL, Engine Not Illustrated BS-MS3287
...
LABEL, Pump Not Illustrated BS-198290GS
...
LABEL, Warning Not Illustrated BS-202010GS
...
DECAL, Caution, Prime Pump Not Illustrated BS-202012GS
...
BEARING, Ball Not Illustrated BS-695877
...
HOSE, Intake Not Illustrated BS-198425GS
...
MICRO OIL Not Illustrated BS-100091
...
CUP, Oil Fill Not Illustrated BS-282751
...
LABEL, Start Instructions Not Illustrated BS-202011GS
...
...
...
...
