073004-0 Briggs and Stratton Water Pum 225 GPM

Model: 073004-0

Save
 Part Not Listed?Part Not Listed?
product name

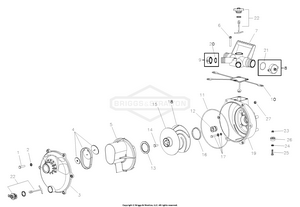

Main Unit

...
...
3
CASING, Front BS-199362GS
...
4
ASSY, Check Valve BS-201423GS
...
5
DIFFUSER, Coverplate BS-199364GS
...
6
SCREW, Outlet (Pkg of 3) BS-199365GS
...
7
DISCHARGE, 4-Way BS-199366GS
...
8
KIT, Cap (Includes Item 21) BS-199367GS
...
9
KIT, Cap (Includes Item 20) BS-199368GS
...
10
GASKET, Discharge BS-199369GS
...
11
O-RING, Casing BS-199370GS
...
12
KIT, Seal BS-201424GS
...
13
NECKRING BS-199372GS
...
14
SCREW, Impeller BS-199373GS
...
15
IMPELLER, Top BS-199375GS
...
16
NECKRING, Balance BS-199377GS
...
17
KIT, Hardware (Set of 4) BS-201365GS
...
18
IMPELLER, Bottom BS-199376GS
...
19
CASING, Rear BS-199379GS
...
20
GASKET BS-200531GS
...
21
GASKET BS-200532GS
...
22
KIT, Priming Drain Plug BS-201422GS
...
26
MOUNT, Rubber Donut BS-87841GS
...
MANUAL, Operator's Not Illustrated BS-199785GS
...
BOTTLE, Oil Not Illustrated BS-100005
...
DECAL, Caution Not Illustrated BS-198303GS
...
LABEL, Warning Not Illustrated BS-199757GS
...
CLAMP, Hose, 1- 1/2" Not Illustrated BS-199976GS
...
STRAINER, 1- 1/2" Not Illustrated BS-199977GS
...
...
...
