product name

073003-1 Briggs and Stratton Water Pum 240 GPM

Model: 073003-1

Save
 Part Not Listed?Part Not Listed?
product name

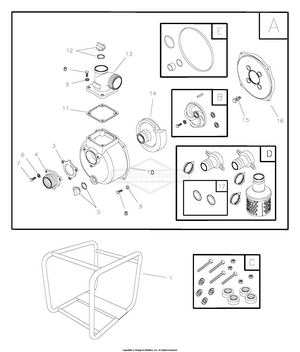

Main Unit

...
...
1
CRADLE BS-865159GS
...
3
VALVE, Check BS-197755GS
...
4
FLANGE, Inlet, 3" NPT BS-198678GS
...
5
ASSY, Plug BS-198057GS
...
10
HOUSING, Pump BS-704466
...
11
GASKET, Out BS-197759GS
...
12
ASSY, Plug BS-198155GS
...
13
FLANGE, Out, 3" NPT BS-198675GS
...
14
VOLUTE, 3" BS-197748GS
...
15
ASSY, Fastener BS-198048GS
...
16
ADAPTER, ENGINE BS-704463
...
17
GASKET, 3" BS-197765GS
...
A
ASSY, Housing Pump BS-199537GS
...
B
KIT, Impeller BS-198156GS
...
C
KIT, Vibration Mount BS-197887GS
...
D
KIT, Coupler 3" NPT BS-200293GS
...
E
KIT, Seal BS-198158GS
...
MANUAL, Operator's Not Illustrated BS-197988GS
...
BOTTLE, Oil Not Illustrated BS-100005
...
DECAL, Recoil Not Illustrated BS-198302GS
...
DECAL, Air Cleaner Not Illustrated BS-198301GS
...
DECAL, Fuel Tank Not Illustrated BS-198296GS
...
DECAL, Caution Not Illustrated BS-198303GS
...
LABEL, Warning Not Illustrated BS-198305GS
...
...
...
