product name

073000-0 Briggs and Stratton Water Pum 30 GPM

Model: 073000-0

Save
Part Not Listed?Part Not Listed?
product name

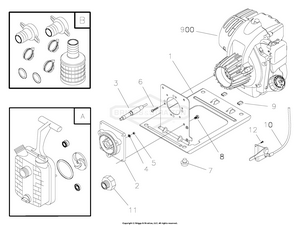

Main Unit

...
...
A
KIT, Pump Service kits include all parts shown within the box. BS-197648GS

...
B
KIT,Acc Micro Pump Service kits include all parts shown within the box. BS-197649GS

...
1
BASE, Pump BS-B197461GS

...
2
PLATE, Seal, Pump BS-197169GS

...
3
SHAFT, Pump BS-197545GS

...
4
WASHER, M5 BS-51713GS


...
6
SCREW, Plastite #10 - 14 x 1.0 BS-197574GS

...
7
MOUNT-VIBRATION BS-197546GS

...
8
HHCS, M6 - 1.0 x 12 w/ LW BS-66476GS

...
9
CAP, Mounting BS-197605GS

...
10
THROTTLE, Capro BS-197606GS

...
11
ADAPTER BS-197653GS

...
12
HHS,Trilobular, #10-32 x 3/8 BS-194561GS

...
--
MANUAL, Operator's Not Illustrated BS-197609GS

...
--
MANUAL, Engine Not Illustrated BS-MS3287

...
--
LABEL, Pump Not Illustrated BS-198290GS

...
--
LABEL,Warning Not Illustrated BS-198291GS

...
--
DECAL, Caution, Prime Pump Not Illustrated BS-198303GS

...
--
BEARING, Ball Not Illustrated BS-695877

...
--
HOSE, Intake Not Illustrated BS-198425GS

...
--
MICRO OIL Not Illustrated BS-100091

...
--
CUP, Oil Fill Not Illustrated BS-282751
...
...
...
