071130-00 Briggs and Stratton Transfer System 100 Amp Transfer Switch

Model: 071130-00

Save
 Don't See Your Part Listed?
product name

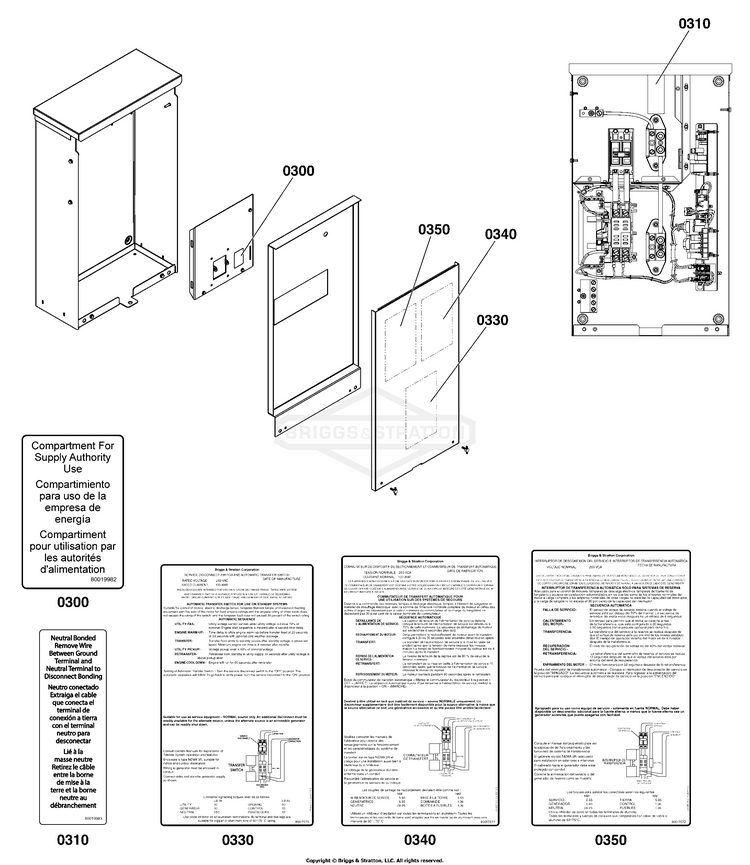

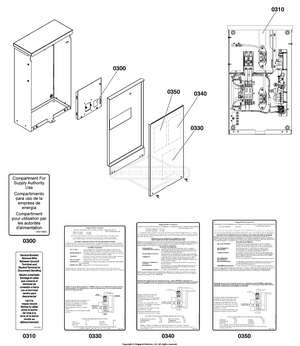

Decals Group - ATS Informational

...
...
0300
DECAL, Compartment for Supply Authority Use BS-771130
...
0310
DECAL, Nuetral Bonded BS-770602
...
0330
DECAL, Tranfer Switch, EN BS-770603
...
0340
DECAL, Tranfer Switch, FR BS-770604
...
0350
DECAL, Tranfer Switch, ES BS-770605

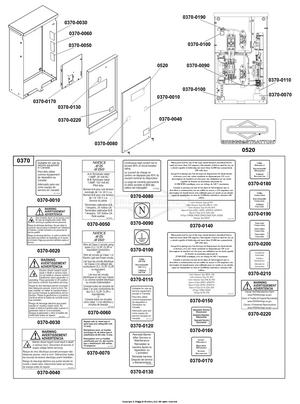

Decals Group - ATS Warning

...
...
0370
DECAL SHEET - WARNINGS (Includes items 0370-0010 thru 0370-0220) BS-770133

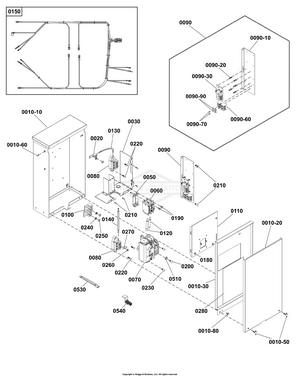

Transfer Switch - Enclosure

...
...
0010-20
DOOR BS-770437
...
0010-30
PANEL, Deadfront BS-770597
...
0010-50
SCREW BS-315108GS
...
0010-60
SCREW, Trilobular, #10-32 x 1/2 BS-200020GS
...
0010-80
SCREW BS-B5763GS
...
0020
LUG, Ground Connect BS-199011GS
...
0050
BRACKET, Mounting / Breaker BS-192770GS
...
0060
BREAKER, Circuit, 100A BS-311318GS
...
0070
CONTACTOR, 100A BS-314867GS
...
0080
TERMINAL, Neutral (Incl. Ref. No. 0220 and bonding screw) BS-192696GS
...
0090
CIRCUIT CARD, Sub Assembly (Includes items 0090-0010, 0090-20, 0090-30, 0090-60, 0090-70, 0090-90) BS-771006
...
0090-10
BRACKET, Mounting BS-771030
...
0090-20
SPACER BS-707397
...
0090-30
BOARD, Circuit BS-770434
...
0090-60
FUSE HOLDER, 30 Amp 2P BS-192151GS
...
0090-70
SCREW, Hex Head, Trilobular, #6-32 x 3/8 BS-192730GS
...
0090-90
FUSE, 10 Amp 600v BS-205110GS
...
0100
LUG BS-84004498
...
0120
WIRE BS-84010854
...
0130
WIRE BS-771028
...
0140
WIRE BS-771029
...
0150
HARNESS, Wire BS-84006866
...
0180
SCREW BS-B5763GS
...
0190
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
0200
SCREW BS-707411
...
0240
WASHER BS-22097GS
...
0250
NUT, Hex, M6 - 1.0 BS-49813GS
...
0270
ADAPTER, Male Disconnect BS-74138GS
...
0280
INSULATION, Dead Front BS-193664GS
...
0510
WASHER BS-23762GS
...
...
...
...
